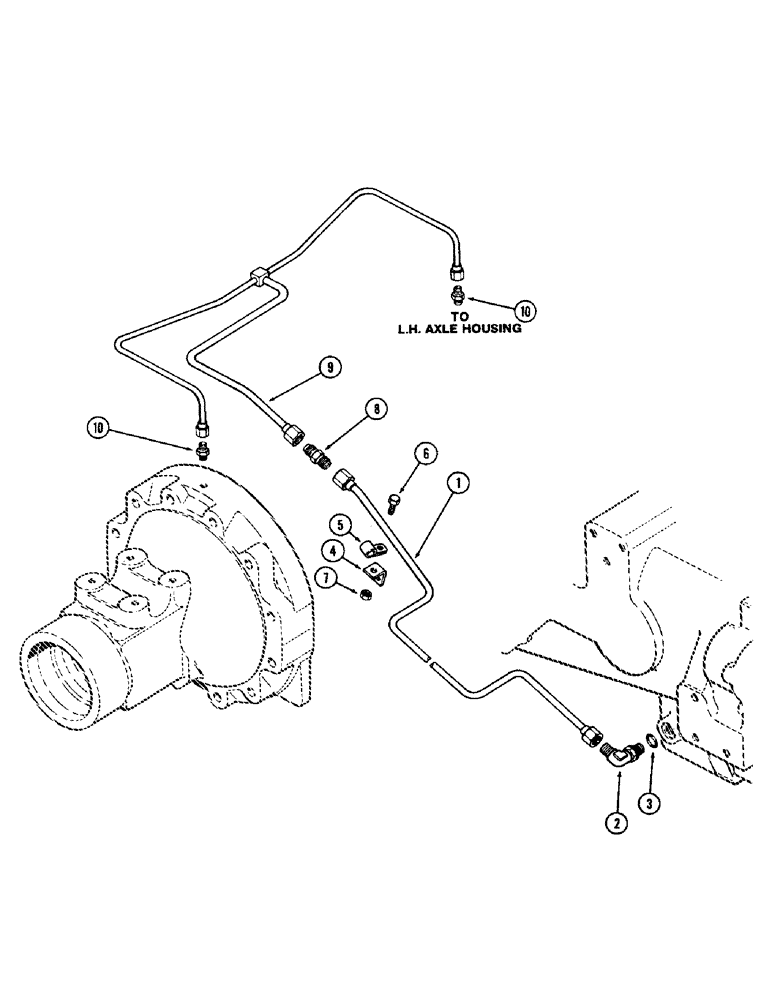

Запчасти Case IH 2590 (6-206) - PLANETARY LUBRICATION TUBES (06) - POWER TRAIN

1

A160238

TUBE

- planetary lubrication, front

1шт.

2

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

ASSEMBLY - 90 degree adjustable, Includes: Ref. 3

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 5/8 x 3/32" (19.05 x 15.75 x 2.29 MM)

1шт.

4

A160236

BRACKET

- tube

1шт.

5

49838

CLAMP

- tube

1шт.

6

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

7

25-106

NUT,3/8"-16, G5

- 3/8" NC hex

1шт.

8

A160216

FITTING

VALVE - check

1шт.

9

A160239

TUBE

- planetary lubrication, rear

1шт.

10

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

CONNECTOR - axle housing

2шт.
