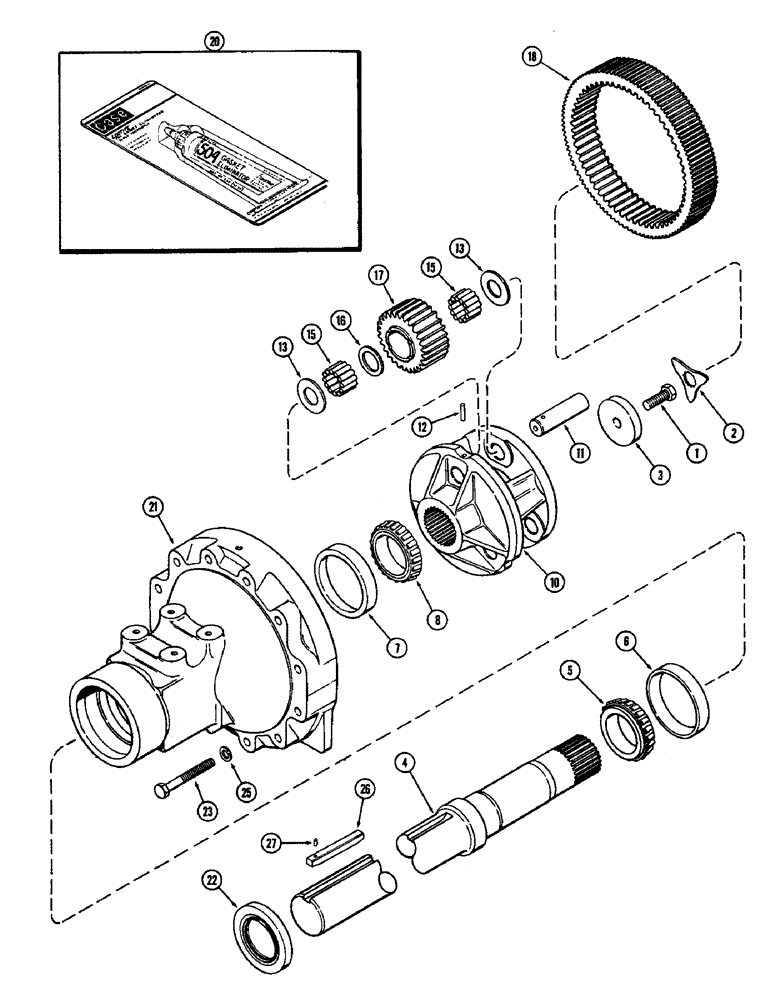

Запчасти Case IH 2590 (6-204) - REAR AXLE, HOUSING AND PLANETARY GEARS, LONG AXLE, 44-9/16 INCHES LONG (1131.82MM) (06) - POWER TRAIN

1

26-1436

BOLT,Hex, 7/8" - 9 x 2-1/4", Gr 8

- 7/8 x 2-1/4" NC hex (Grade 8)

2шт.

2

A63221

PLATE

- bearing lock

2шт.

3

A63220

PLATE

- retaining, rear axle

2шт.

4

A151848

SHAFT

- rear axle (Replaces A150679)

2шт.

5

A136255

ROLLER BEARING,95.25mm ID x 48.26mm W

CONE - bearing, outer 3-3/4" ID (95.25 MM)

2шт.

6

A136253

BEARING, CUP,171.45mm OD x 38.1mm W

CUP - bearing, outer 6-3/4" O.D. (171.45 MM)

2шт.

7

A63214

CUP

- bearing, inner 6-7/64" O.D. (155.19 MM)

2шт.

8

A63216

ROLLER BEARING,89.98mm ID x 44mm W

CONE - bearing, inner 3-35/64" ID (90.17 MM)

2шт.

10

A148018

CARRIER

- planet gear

2шт.

11

A151874

PIN

- planet gear, with 3/8" hole (9.65 MM)

6шт.

12

138-2006

PIN,3/8" x 1", Coiled

- roll, 3/8 x 3/4" spirol

6шт.

13

A67116

WASHER

- planet pin roller, 1-21/32 x 3 x 1/32" (42.16 x 76.2 x 0.76 MM)

12шт.

15

A47252

ROLLER BEARING

BEARING KIT - roller, planet gear (Includes 38 rollers)

2шт.

16

A67117

SPACER

- roller bearing separator, 1-3/4 x 2-9/32 x 5/64" (44.45 x 57.91 x 2.03 MM)

6шт.

17

A153937

GEAR

- planet, rear axle (Replaces A153220)

6шт.

18

A151934

GEAR

- planetary ring

2шт.

20

B17428

LOCTITE

- gasket eliminator (2 oz - 50CC tube)

1шт.

21

A153970

HOUSING

- rear axle

2шт.

22

A136563

OIL SEAL

- oil, rear axle

2шт.

23

26-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 8

- 5/8 x 5-1/2" NC hex (Grade 8)

24шт.

25

A64303

WASHER

- 41/64 x 1-1/16 x 1/16" (16.25 x 26.92 x 1.52 MM)

24шт.

26

A63219

KEY

- rear wheel to axle shaft, 6" long (152.4 MM)

2шт.

27

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, (M6.35 x 12.7) 1/4" x 1/2", Slotted

2шт.
