Запчасти Case IH 2590 (6-200) - DIFFERENTIAL, PARK LOCK (06) - POWER TRAIN

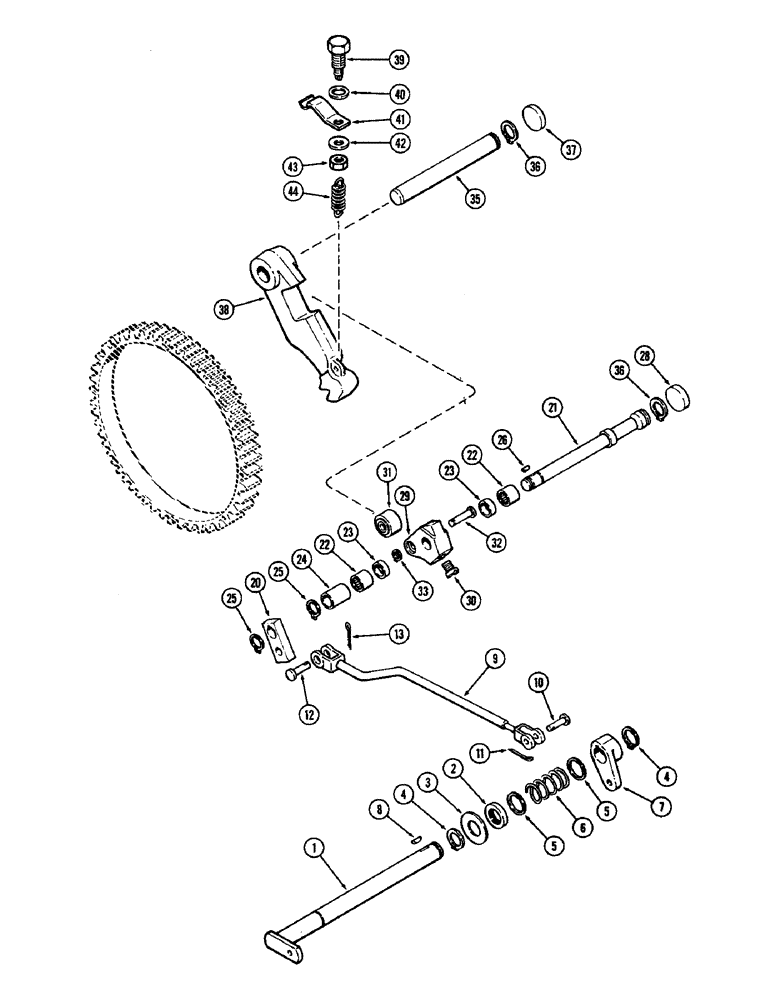

Схема запчастей Case IH 2590 - (6-200) - DIFFERENTIAL, PARK LOCK (06) - POWER TRAIN
28
12
21
38
7
4
5
40
22
35
5
20
3
10
1
9
30
36
39
13
11
23
22
44
31
32
2
6
23
29
42
25
37
24
25
4
8
26
43
36
33
41

Артикул

Название

Примечание

Количество

1

A148347

LEVER

SHAFT - front

1шт.

2

A55855

OIL SEAL

- oil, shaft

1шт.

3

195-53

WASHER,1" x 2" x .134"

- 1-1/16 x 2 x 10 gauge (26.99 x 50.8 x 3.57 MM)

1шт.

4

B18208

SNAP RING,#100, Ext

59/64" ID (23.37 mm)

2шт.

5

L31557

WASHER

- spring retaining

2шт.

6

A144207

SPRING

- compression, 1-5/32" O.D. (29.46 MM) x 2-1/4" (57.15 MM) free length

1шт.

7

A148362

LEVER

- park lock front

1шт.

8

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

1шт.

9

A148361

ROD

- park lock

1шт.

10

141-5

CLEVIS PIN,7/16" x 1.190"

PIN - clevis, 7/16"

1шт.

11

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

1шт.

12

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - clevis, 1/2"

1шт.

13

132-47

COTTER PIN,1/8" x 7/8"

Pin, Split (Cotter), 1/8" x 7/8"

1шт.

20

A153618

LEVER

- park lock, center

1шт.

21

A153619

SHAFT

- park lock, center

1шт.

22

14228

NEEDLE BEARING,Needle, 19.05mm ID x 25.4mm OD x 19.05mm W

BEARING - needle, center shaft

2шт.

23

A144847

SPACER

- bearing locating, 49/64 x 63/64 x 1/32" (19.56 x 24.89 x 0.76 MM) (Short)

2шт.

24

A153620

SPACER

- bearing locating, 49/64 x 63/64 x 1-1/4" (19.56 x 24.89 x 31.75 MM) (Long)

1шт.

25

T25683

SNAP RING,#75, Ext

Ring, Snap, , 11/16" ID (17.53 mm) #75, Ext

2шт.

26

126-106

WOODRUFF KEY,# 213, 1/8" x 3/8", HT

KEY - Woodruff, no. 213

1шт.

28

41-1024

PLUG,Cup, 1 1/2"

- cup, 1-1/2" (38.10 MM)

1шт.

29

A154499

LEVER

- park lock center cam carrier (Replaces A148274)

1шт.

30

181-274

SET SCREW,Sq Hd, 1/2"-13 x 7/8"

SCREW - 1/2 x 7/8" square head

1шт.

31

A144846

CAM

- following

1шт.

32

A153208

PIN

- clevis, cam follower

1шт.

33

G46146

SNAP RING,#37, Ext

RING - snap, 21/64" ID (8.38 MM)

1шт.

35

A63241

SHAFT

- park lock, rear

1шт.

36

B18208

SNAP RING,#100, Ext

59/64" ID (23.37 mm)

2шт.

37

41-1022

PLUG,Cup, 1 3/8"

- cup, 1-3/8" (34.92 MM)

1шт.

38

A148273

LEVER

- park lock engaging

1шт.

39

A144206

RETAINER

- spring detent

1шт.

40

A58608

GASKET

- retainer

1шт.

41

A144413

SPRING

- park lock detent

1шт.

42

195-33

WASHER,1/2"

- 17/32 x 1-1/16 x 3/32" (13.49 x 26.99 x 2.38 MM)

1шт.

43

129-145

JAM NUT,Jam, 1/2"-13, G5

1шт.

44

A144541

SPRING

- extension, engaging lever

1шт.

Выбрано товаров: 36
