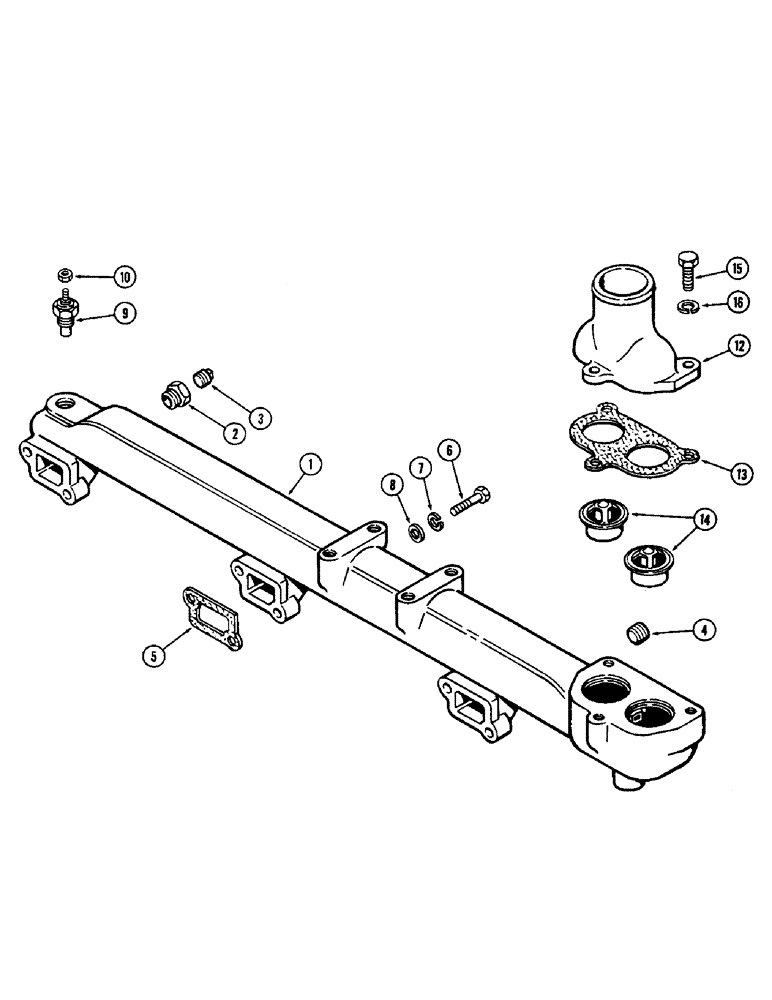

Запчасти Case IH 2590 (2-04) - WATER MANIFOLD AND THERMOSTAT, 504BDT, DIESEL ENGINE (02) - ENGINE

A44088

MANIFOLD

ASSEMBLY - water, Includes: Refs. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

MANIFOLD - water (Order A44088)

1шт.

2

221-92

REDUCER,Hex, 3/4" x 3/8" NPT

BUSHING - reducer, 3/4 x 3/8" PT

1шт.

3

221-843

PLUG,Hex Soc, 3/8"-18

- 3/8 PT hex socket head

1шт.

4

221-845

PLUG,Hex Soc, 3/4"-14

- 3/4" PT hex socket head

1шт.

5

A58637

MANIFOLD GASKET

- manifold

3шт.

6

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

6шт.

7

92-6

LOCK WASHER,3/8"

6шт.

8

195-25

WASHER,3/8"

- 13/32 x 13/16 x 1/16" (10.32 x 20.64 x 1.59 MM)

6шт.

9

D65446

SENDER UNIT

UNIT - sender, engine temperature

1шт.

10

193-1000

NUT,Keps, w/LW,#10-32

- #10-32 hex Keps

1шт.

12

A58638

HOUSING

- thermostat

1шт.

13

A58639

GASKET

- housing

1шт.

14

A57641

THERMOSTAT

180 degrees F (82 degrees C)

2шт.

15

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

3шт.

16

92-6

LOCK WASHER,3/8"

3шт.
