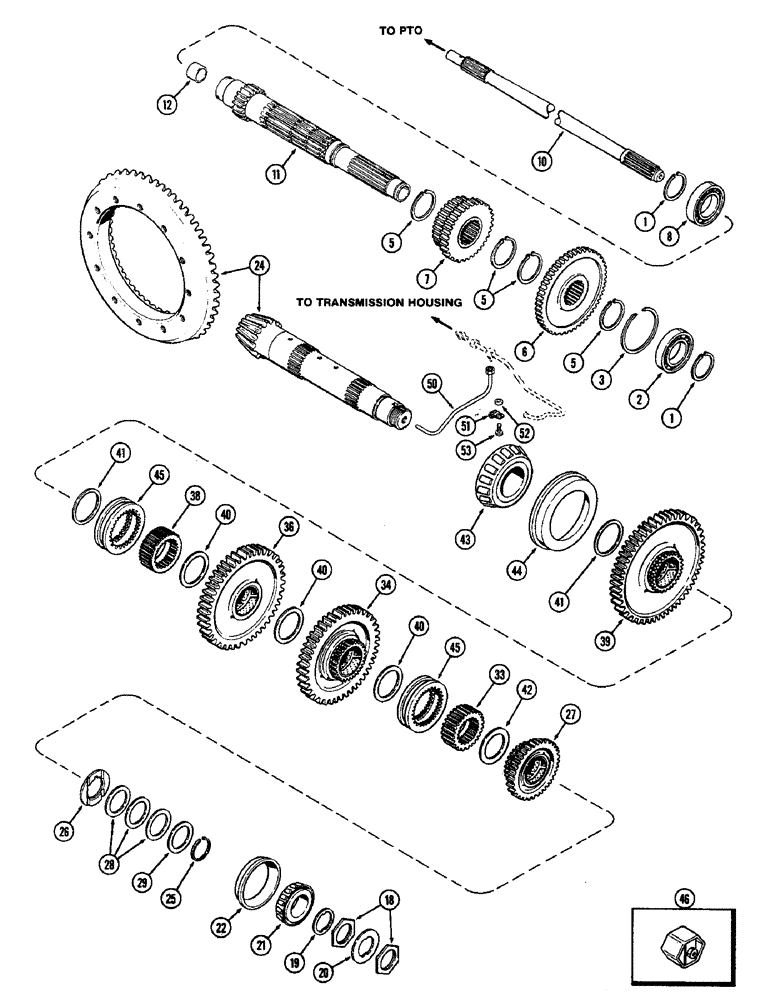

Запчасти Case IH 2590 (6-194) - CLUTCH, PLANETARY OUTPUT, TRANSMISSION SERIAL NUMBER 10125823 AND AFTER (06) - POWER TRAIN

1

39326

SNAP RING,#215, Ext

Ring, Snap, #215, Ext

2шт.

2

A21266

BALL BEARING,2.1654" ID x 3.937" OD x 0.8268"

BEARING - ball, output shaft

1шт.

3

A140045

RING

- retaining

1шт.

5

A63115

SNAP RING,#255, Ext

Ring, Snap, , planetary output shaft #255, Ext

4шт.

6

A136210

GEAR

- driver, fourth (49 external and 40 internal teeth)

1шт.

7

A153870

GEAR

- driver, second and third (29 and 31 external and 40 internal teeth)

1шт.

8

A150644

BALL BEARING,2.1654" ID x 3.937" OD x 0.8268"

BEARING - rear, planetary shaft

1шт.

10

A152396

SHAFT

- power input

1шт.

11

A153917

SHAFT

ASSEMBLY - planetary output, Includes: Ref. 12

1шт.

12

A76228

BUSHING,34.87mm ID x 41.31mm OD x 25.4mm L

- input shaft support

1шт.

18

A63156

LOCK NUT

- lock, spiral bevel pinion, countershaft

2шт.

19

A63157

THRUST BEARING,1.955" ID x 2.562" OD x 0.12"

WASHER - thrust, bearing, countershaft

1шт.

20

A63155

LOCK WASHER

- locking, countershaft

1шт.

21

A67119

ROLLER BEARING,2.1255" ID x 1.25"

CONE - bearing, countershaft front

1шт.

22

A67118

CUP

- bearing, countershaft front

1шт.

24

A150519

GEAR SET

- pinion and spiral bevel (Matched set), countershaft

1шт.

25

A32413

SNAP RING,#212, 1.997", Ext

RING - collar retaining, countershaft

1шт.

26

A150536

COLLAR

- pinion locating, countershaft

1шт.

27

A150617

GEAR

ASSEMBLY - driven, fourth (30 and 34 teeth) (Includes bushing), countershaft

1шт.

28

A150537

SHIM

- countershaft 0.002" (0.05 MM), countershaft

1шт.

28

A150538

SHIM

- countershaft 0.006" (0.15 MM), countershaft

1шт.

28

A150539

SHIM

- countershaft 0.010" (0.25 MM), countershaft

1шт.

29

A150540

WASHER

- shim backup, countershaft

1шт.

33

A140028

HUB

- shaft, splined pinion, third and fourth (30 external and 43 internal teeth), countershaft

1шт.

34

A153897

GEAR

ASSEMBLY - driven, third (30 and 51 teeth) (Includes bushing), countershaft

1шт.

36

A153898

GEAR

- driven, second (30 and 55 teeth), countershaft

1шт.

38

A140024

HUB

- shaft, splined pinion, first and second (30 external and 47 internal teeth), countershaft

1шт.

39

A150614

GEAR

ASSEMBLY - driven, first (30 and 77 teeth) (Includes bushing), countershaft

1шт.

40

A144342

WASHER,70.36mm ID x 89.41mm OD x 0.84mm Thk

- gear thrust, countershaft

3шт.

41

A144341

WASHER

- gear thrust, 3 x 3-1/2 x 1/32" (76.2 x 88.9 x 0.76 MM), countershaft

2шт.

42

A144343

WASHER

- gear thrust, 2-1/2 x 3-1/2 x 1/32" (63.5 x 88.9 x 0.76 MM), countershaft

1шт.

43

A63089

ROLLER BEARING,76.2mm ID x 46.11mm W

CONE - countershaft rear bearing, countershaft

1шт.

44

A63088

ROLLER BEARING,171.47mm OD x 31.75mm W

CUP - countershaft rear bearing, countershaft

1шт.

45

A138190

COLLAR

- sliding, countershaft

2шт.

46

A43109

SOCKET/RECEPTACLE

SOCKET - countershaft nut (Service tool), countershaft

1шт.

50

A150623

TUBE

- countershaft lubrication, countershaft

1шт.

51

A20541

CLIP

- tube, countershaft

1шт.

52

95-5

WASHER,3/8" x 7/8" x .083"

- 3/8 x 7/8 x 5/64" (9.52 x 22.22 x 1.98 MM), countershaft

3шт.

53

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- 3/16 x 3/4" NC hex (Grade 5), countershaft

1шт.
