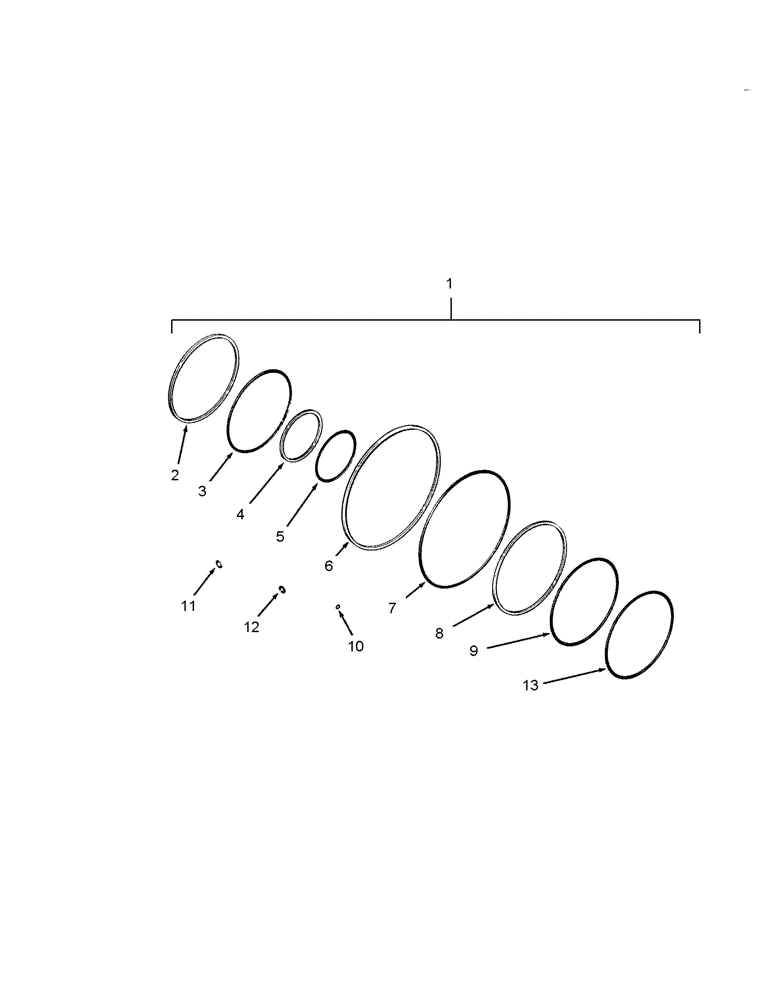

Запчасти Case IH 2590 (6-191) - SEAL KIT, POWER SHIFT (06) - POWER TRAIN

1

A46286

SEAL KIT,Power Shift

Clutch Seal Repair, Incl 2 - 13

1шт.

2

A146682

RING

Seal, External, 8 - 9/32 inch OD x 7/64 inch Square (210 x 2.8mm)

3шт.

3

A150753

O-RING,7.84" ID x 0.107"

3шт.

4

A146683

RING

Seal, Internal, 4 - 15/32 inch ID x 7/64 inch Square (114 x 2.8mm)

3шт.

5

A150754

O-RING,4.718" ID x 0.107"

3шт.

6

A146680

RING

Seal, External, 12 - 9/16 inch OD x 7/64 inch Square (317 x 2.8mm)

1шт.

7

A150751

O-RING,12.09" ID x 0.107"

1шт.

8

A146681

SEAL

Seal, Internal, 8 - 31/32 inch ID x 7/64 inch Square (228 x 2.8mm)

1шт.

9

A150752

O-RING,9.206" ID x 0.107" OD

1шт.

10

A58092

SEAL,Square, 0.066" Thk x 0.301" ID, -11

Piston Carrier

4шт.

11

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Oil Tube

7шт.

12

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

Oil Tube

5шт.

13

238-5271

O-RING,0.139" Thk x 9.234" ID, -271, Cl 5, 75 Duro

1шт.
