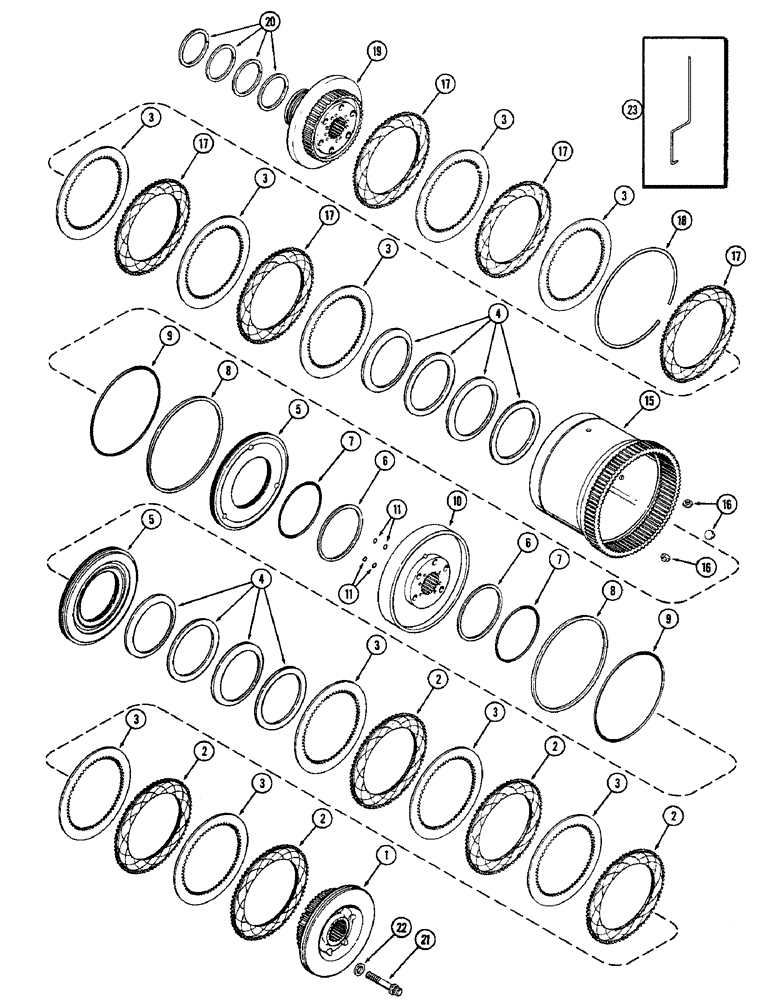

Запчасти Case IH 2590 (6-190) - CLUTCH, C2, AND, C3, CLUTCHES (06) - POWER TRAIN

1

A153081

HUB

- (C2) clutch

1шт.

2

A61981

PLATE

- clutch, sintered

5шт.

3

A155461

PLATE

- clutch, steel (Replaces A151029 and A155276)

10шт.

4

A58094

SPRING

- clutch return

8шт.

5

A146670

PISTON

- (C2) and (C3)

2шт.

6

A146683

RING

- seal, internal, 4-15/32" ID x 7/64" square (113.54 x 2.79 MM)

2шт.

Part of Seal Kit, P/N A46286

1шт.

7

A150754

O-RING,4.718" ID x 0.107"

RING - seal, internal, 4-11/16" ID x 3/32" width (119.13 x 2.29 MM)

2шт.

Part of Seal Kit, P/N A46286

1шт.

8

A146682

RING

- seal, external, 8-9/32" O.D. x 7/64" square (210.31 x 2.79 MM)

2шт.

Part of Seal Kit, P/N A46286

1шт.

9

A150753

O-RING,7.84" ID x 0.107"

RING - seal, external, 7-7/8" O.D. x 3/32" width (200.15 x .29 MM)

2шт.

Part of Seal Kit, P/N A46286

1шт.

10

A150105

CARRIER

- (C2) and (C3) (Replaces A153297)

1шт.

11

A58092

SEAL,Square, 0.066" Thk x 0.301" ID, -11

O-RING - 19/64 x 7/16 x 1/16" (7.62 x 11.18 x 1.52 MM)

4шт.

15

A138618

GEAR

- ring

1шт.

16

A58413

BUTTON

BEARING - button, planetary ring gear

6шт.

17

A61981

PLATE

- clutch, sintered

5шт.

18

A58079

RING,226.49mm ID x 233.35mm OD x 3.43mm Thk

- snap, clutch retaining ring gear

1шт.

19

A153298

HUB

- (C3) clutch

1шт.

20

A58384

RING

- oil distributor piston

4шт.

21

166-96

12 PT SCREW,Flg, 1/2" - 13 x 4", Gr 8

SCREW - 1/2"-13 x 4", 12 point head

6шт.

22

A41917

WASHER,14.25mm ID x 24.89mm OD x 1.57mm Thk

- 9/16 x 63/64 x 1/16" (14.22 x 24.48 x 1.57 MM)

6шт.

23

A43110

TOOL

HOLDER - clutch plate (Service tool)

2шт.

A46286

SEAL KIT,Power Shift

KIT - seal, Includes: Refs. 6, 7, 8, 9 and 11, on Figures 6-186 and 6-190)

1шт.
