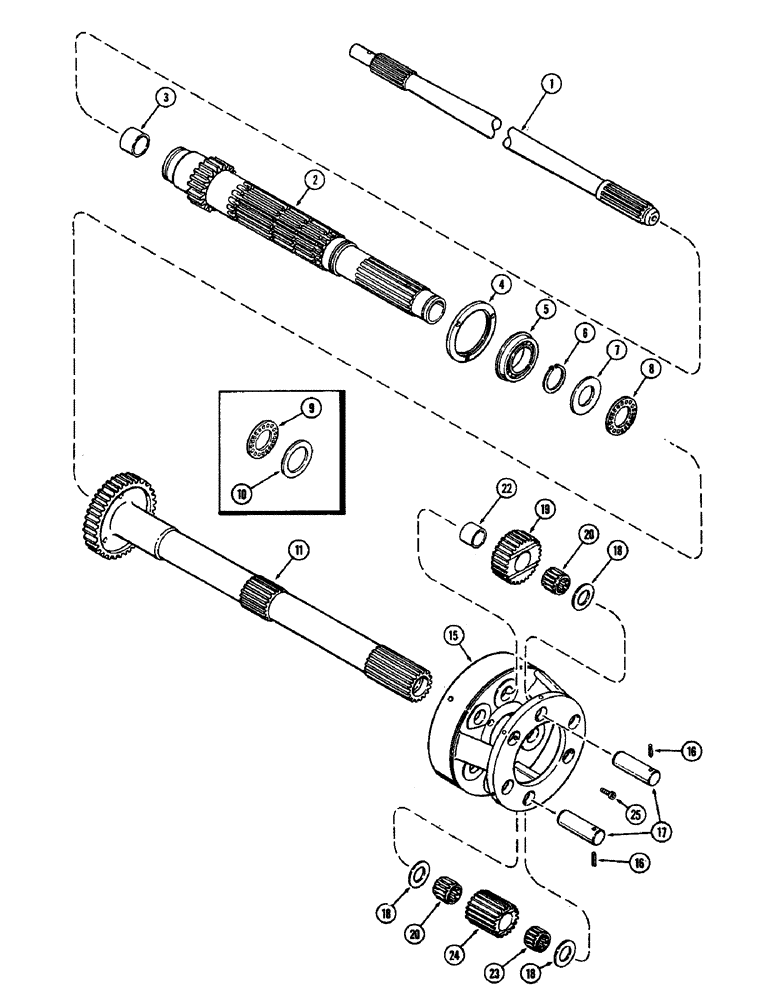

Запчасти Case IH 2590 (6-188) - CLUTCH, PLANETARY (06) - POWER TRAIN

1

A152396

SHAFT

- input, power and PTO drive, front

1шт.

2

A153917

SHAFT

ASSEMBLY - planetary output, Includes: Ref. 3

1шт.

3

A76228

BUSHING,34.87mm ID x 41.31mm OD x 25.4mm L

- input shaft support

1шт.

4

A146603

RETAINER

- carrier bearing

1шт.

5

A63109

BEARING, BALL

BEARING - ball, carrier (Includes snap ring)

1шт.

6

A7611

SNAP RING,#175, Ext

Ring, Snap, , shaft locating #175, Ext

1шт.

7

A54021

WASHER

RACE - thrust, 1-3/4 x 2-1/2 x 3/32" (44.45 x 63.5 x 2.29 MM)

1шт.

8

A154648

THRUST BEARING,44.5mm ID x 66.04mm OD x 2.69mm W

BEARING - needle thrust, late production

1шт.

9

A54022

THRUST BEARING,44.56mm ID x 63.13mm OD x 1.98mm W

BEARING - needle, thrust, early production

1шт.

10

H147785

BEARING WASHER

WASHER - thrust bearing, early production, 1-3/4 x 2-1/2 x 1/32" (44.45 x 63.5 x 1.27 MM)

1шт.

11

A151829

SHAFT

- planetary input drive

1шт.

15

A148694

CARRIER

- planetary, (5.400" Long)

1шт.

16

138-92

LOCK PIN,3/16" x 3/4", Slotted

PIN, 3/16" x 3/4", Slotted

6шт.

17

A63107

PIN

- planet gear

6шт.

18

A58070

WASHER,25.45mm ID x 44.45mm OD x 0.76mm Thk

RACE - thrust, planet gear, 1 x 1-3/4 x 1/32" (25.4 x 44.45 x 1.27 MM)

9шт.

19

A63105

GEAR

- planet, short (36 teeth) 1-1/4" long (31.75 MM)

3шт.

20

A62543

NEEDLE BEARING,25.39mm ID x 33.36mm OD x 31.56mm W

BEARING - roller, planet gear, 1 x 1-5/16 x 1-1/4" (25.4 x 33.27 x 31.75 MM)

6шт.

22

A140877

SPACER,25.65mm ID x 31.88mm OD x 27.9mm L

- short gear (Replaces A63106)

3шт.

23

A58077

ROLLER BEARING,25.395 mm ID x 33.3578 mm OD x 25.21 mm

BEARING - roller, planet gear, 1 x 1-5/16 x 1" (25.4 x 33.27 x 25.4 MM)

3шт.

24

A63108

GEAR

- planet, long (24 teeth) 2-5/16" (58.67 MM)

3шт.

25

62-410

HEX SOC SCREW,1/4"-28 x 5/8"

SCREW - 1/4 x 5/8" socket head jaylock

3шт.
