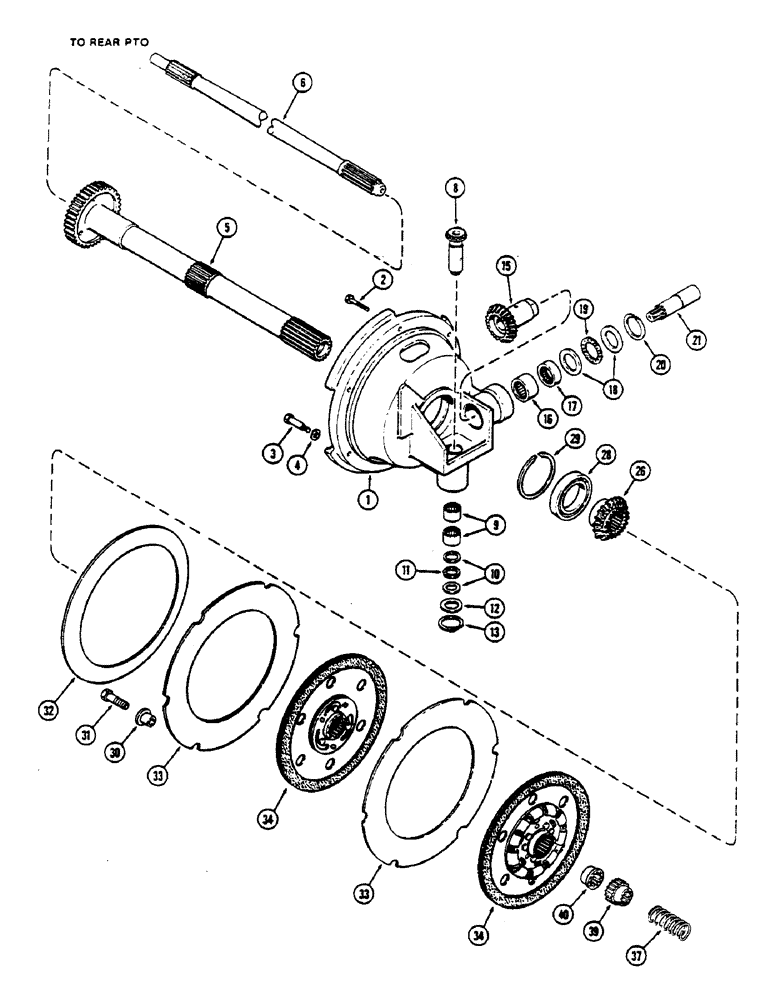

Запчасти Case IH 2590 (6-184) - CLUTCH, TORQUE LIMITER AND PUMP DRIVE (06) - POWER TRAIN

1

A144986

HOUSING

- pump drive

1шт.

2

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

5шт.

3

A146015

BOLT

- dowel, 3/8" NC hex

1шт.

4

A50689

WASHER

- 15/32 x 13/16 x 3/64" (11.94 x 15.49 x 1.27 MM)

1шт.

5

A151829

SHAFT

- planetary input drive

1шт.

6

A152396

SHAFT

- PTO drive, front

1шт.

8

A63074

GEAR

- bevel, charging pump (22 teeth)

1шт.

9

A63065

NEEDLE BEARING,Needle, 28.57mm ID x 34.92mm OD x 19.05mm W

BEARING - roller, 1-1/8 x 1-3/8 x 3/4" (28.45 x 35.05 x 19.05 MM)

2шт.

10

A63075

THRUST BEARING,0.887" ID x 1.417" OD x 0.063"

RACE - thrust bearing, 7/8 x 1-15/32 x 1/16" (22.35 x 37.34 x 1/16)

2шт.

11

F19633

NEEDLE BEARING,22.27mm ID x 36.24mm OD x 1.98mm W

BEARING - needle thrust

1шт.

12

A63076

WASHER

RACE - thrust bearing, 1-1/8 x 1-3/4 x 1/16" (28.45 x 44.45 x 1.52 MM)

1шт.

13

A64081

RING

- snap, internal 0.094" (2.39 MM)

1шт.

13

A64082

RING

- snap, internal 0.084" (2.13 MM)

1шт.

13

A64083

RING

- snap, internal 0.074" (1.88 MM)

1шт.

15

A144805

GEAR

- bevel, dual pump (13 teeth spline)

1шт.

16

A144861

NEEDLE BEARING

BEARING - roller, 1-5/8 x 2 x 1" (41.15 x 50.8 x 25.4 MM)

1шт.

17

A144862

NEEDLE BEARING,1.625" ID x 2.0005" OD x 0.625"

BEARING - roller, 1-5/8 x 2 x 5/8" (41.15 x 50.8 x 15.75 MM)

1шт.

18

A50673

BEARING WASHER,38.27mm ID x 55mm OD x 3.16mm Thk

RACE - thrust bearing, 1-1/2 x 2-5/32 x 1/8" (38.1 x 54.86 x 3.15 MM)

2шт.

19

T41022

THRUST BEARING,38.22mm ID x 55.17mm OD x 1.98mm W

BEARING - needle thrust

1шт.

20

A144792

RING

- snap, internal 0.094" (2.39 MM)

1шт.

20

A144793

RING

- snap, internal 0.084" (2.13 MM)

1шт.

20

A144794

RING

- snap, internal 0.074" (1.88 MM)

1шт.

21

A140942

COUPLING, BREAK AWAY

COUPLING - pump drive

1шт.

26

A151827

GEAR

- pump drive (33 and 47 teeth)

1шт.

28

A54073

BALL BEARING,2.5591" ID x 3.937" OD x 0.7087"

BEARING - ball, 2-9/16 x 3-15/16 x 45/64" (32.02 x 100.08 x 17.78 MM)

1шт.

29

A31234

RING

- snap, bearing retaining

1шт.

30

A153849

RETAINER

- clutch spring

6шт.

See sb A75-82 for important info on torque limiter plate and pressure plate.

1шт.

31

26-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 8

- 1/2 x 2-1/4" NC hex (Grade 8)

6шт.

See sb A75-82 for important info on torque limiter plate and pressure plate.

1шт.

32

A64370

SPRING

- Belleville (Yellow color code) 0.177" thick (4.50 MM)

1шт.

See sb A75-82 for important info on torque limiter plate and pressure plate.

1шт.

33

A58036

PLATE

- pressure

2шт.

See sb A75-82 for important info on torque limiter plate and pressure plate.

1шт.

34

A155236

PLATE

LIMITER - torque 12" (304.8 MM) (Replaces A153079 and A154349) (Order A155490)

2шт.

37

A65416

SPRING

- input drive shaft

1шт.

39

A66610

SLEEVE

- drive shaft

1шт.

40

A76482

BUSHING,20T

- drive shaft

1шт.
