Запчасти Case IH 2590 (2-02) - RADIATOR AND ATTACHING PARTS, 504BDT, DIESEL ENGINE (02) - ENGINE

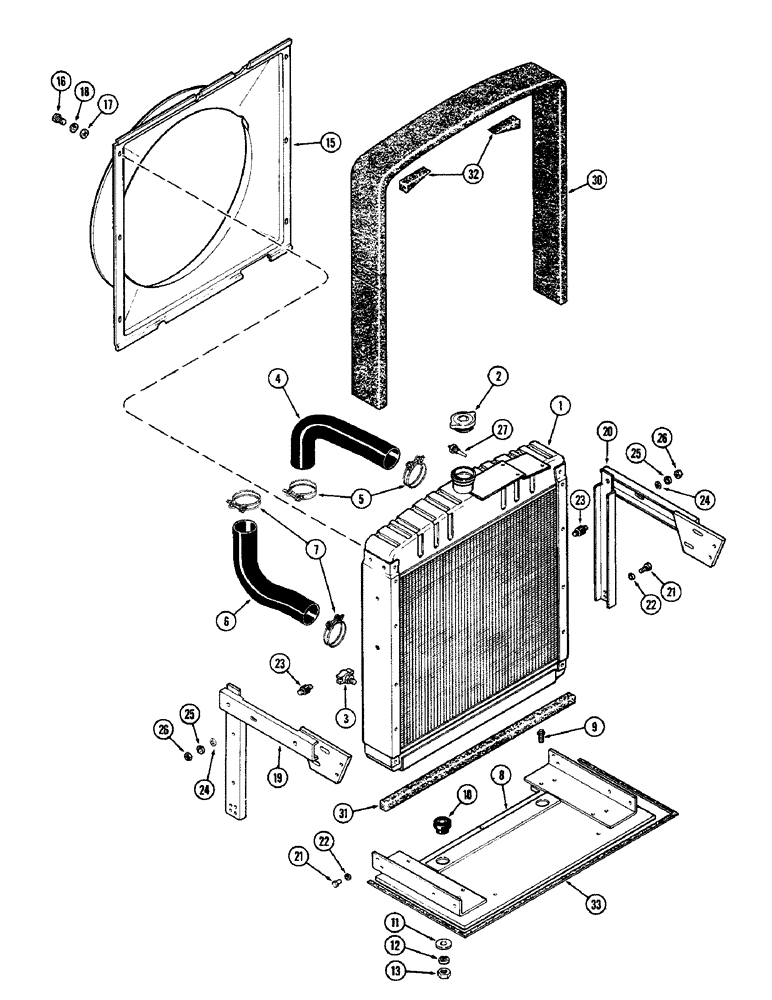

Схема запчастей Case IH 2590 - (2-02) - RADIATOR AND ATTACHING PARTS, 504BDT, DIESEL ENGINE (02) - ENGINE
25
9
10
15
20
27
6
16
25
30
26
21
1
3
31
2
21
11
24
23
22
13
18
7
19
24
26
17
32
8
22
5
4
23
33
12

Артикул

Название

Примечание

Количество

1

A147140

RADIATOR

- engine

1шт.

2

A143721

CAP

- radiator filler, 10 PSI non vented (68.95 kPa)

1шт.

3

A23656

COCK, DRAIN

VALUE - radiator drain

1шт.

4

A141495

RADIATOR HOSE,2.50" ID, SAE 20R4

Inlet 2.50" ID, SAE 20R4

1шт.

5

214-405

CLAMP

- inlet hose

2шт.

6

A141496

RADIATOR HOSE,2.62" ID, SAE 20R4

Outlet 2.62" ID, SAE 20R4

1шт.

7

214-403

CLAMP

- outlet hose

4шт.

8

A147135

SUPPORT

- hood and radiator

1шт.

9

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

6шт.

10

A59863

MOUNTING PARTS

MOUNT

2шт.

11

48560

BRAKE LINING

- snubber, 9/16 x 1-3/4 x 9/64" (14.22 x 44.45 x 3.56 MM)

2шт.

12

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

13

129-145

JAM NUT,Jam, 1/2"-13, G5

2шт.

15

A147138

GUARD

SHROUD - fan

1шт.

16

A161360

BOLT

- 1/4 x 1/2" NC hex washer head, productions only

6шт.

Production only, for service order 113-2 bolt, 195-102 washer and 192-19 washer.

1шт.

16

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

6шт.

17

195-102

WASHER,1/4"

- 5/16 x 3/4 x 1/16" (7.94 x 19.05 x 1.59 mm)

6шт.

18

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

6шт.

19

A145679

CHANNEL

SUPPORT - radiator, RH

1шт.

20

A145678

CHANNEL

SUPPORT - radiator, LH

1шт.

21

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

4шт.

22

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

23

A145743

MOUNTING PARTS

MOUNT - radiator upper, rubber

2шт.

24

195-102

WASHER,1/4"

- 5/6 x 3/4 x 1/16" (7.94 x 19.05 x 1.59 mm)

2шт.

25

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

26

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

27

A145513

SENSOR

PROBE - coolant level sensing

1шт.

30

A149133

SEAL PROTECTION

-, Serial Range: radiator-hood

1шт.

31

A149962

SEAL

- radiator lower

1шт.

32

A149300

SEAL

- upper radiator seal wedge

1шт.

33

A149131

SEAL PROTECTION

- lower grille

1шт.

Выбрано товаров: 32
