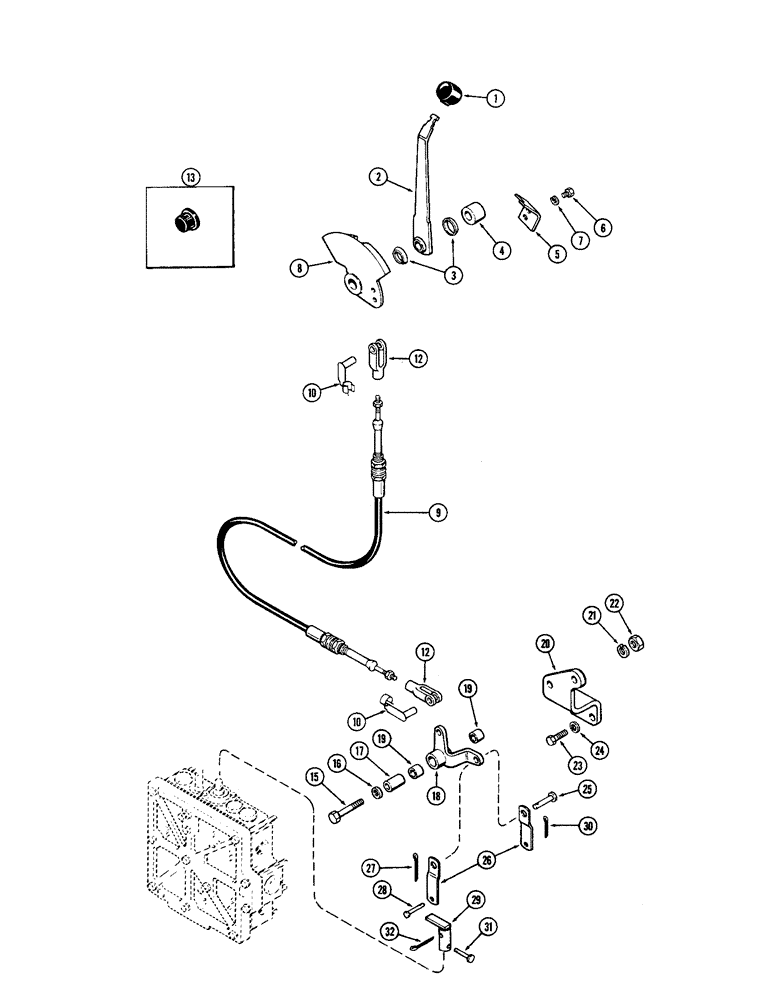

Запчасти Case IH 2590 (6-174) - RANGE SHIFT LINKAGE (06) - POWER TRAIN

1

A137806

KNOB

- range shift lever

1шт.

2

A149898

LEVER

- hand, range shift

1шт.

3

A59662

WASHER

- range shift lever

2шт.

4

A59664

SPACER

- range shift quadrant

1шт.

5

NLS

NO LONGER SERVICED

- lever stop

1шт.

6

113-6

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

2шт.

7

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

8

A143835

QUADRANT

- range shift

1шт.

9

A160703

CABLE

- range shift, 5/16" NF thread (Order A161778)

1шт.

9

A135243

CABLE

- range shift, 1/4" NF thread

1шт.

10

A147652

PIN

- spring clevis, 3/8"

2шт.

12

A160630

CLEVIS,5/16" - 24

YOKE - cable, 5/16" NF thread

2шт.

12

A60661

YOKE

- cable, 1/4" NF thread

2шт.

13

353-406

PLUG,Dome, .625" hole, Nylon

- 5/8" nylon, Heyco (Cable mounting plate hole)

1шт.

15

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- 3/8 x 2-1/2" NC hex (Grade 5)

1шт.

16

195-25

WASHER,3/8"

- 3/8 x 7/8 x 5/64" (9.52 x 22.22 x 1.98 MM)

1шт.

17

A65345

SHAFT

- range shift bellcrank

1шт.

18

A139252

LEVER ASSY.

BELLCRANK ASSEMBLY - range shift, Includes: Ref. 19

1шт.

19

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

- bellcrank

2шт.

20

A63022

BRACKET

PLATE - bellcrank mounting

1шт.

21

92-6

LOCK WASHER,3/8"

1шт.

22

25-106

NUT,3/8"-16, G5

- 3/8" NC hex

1шт.

23

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

24

92-6

LOCK WASHER,3/8"

2шт.

25

141-54

CLEVIS PIN,3/8" x 1 1/16"

1шт.

26

A63027

LINK

- range shift, Serial Range: spool-bellcrank

2шт.

27

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

28

A8824

PIN

- clevis

1шт.

29

A63028

LEVER

- range shift spool return

1шт.

30

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

31

A8823

PIN,6.29mm OD x 26.99mm L

- clevis

1шт.

32

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.
