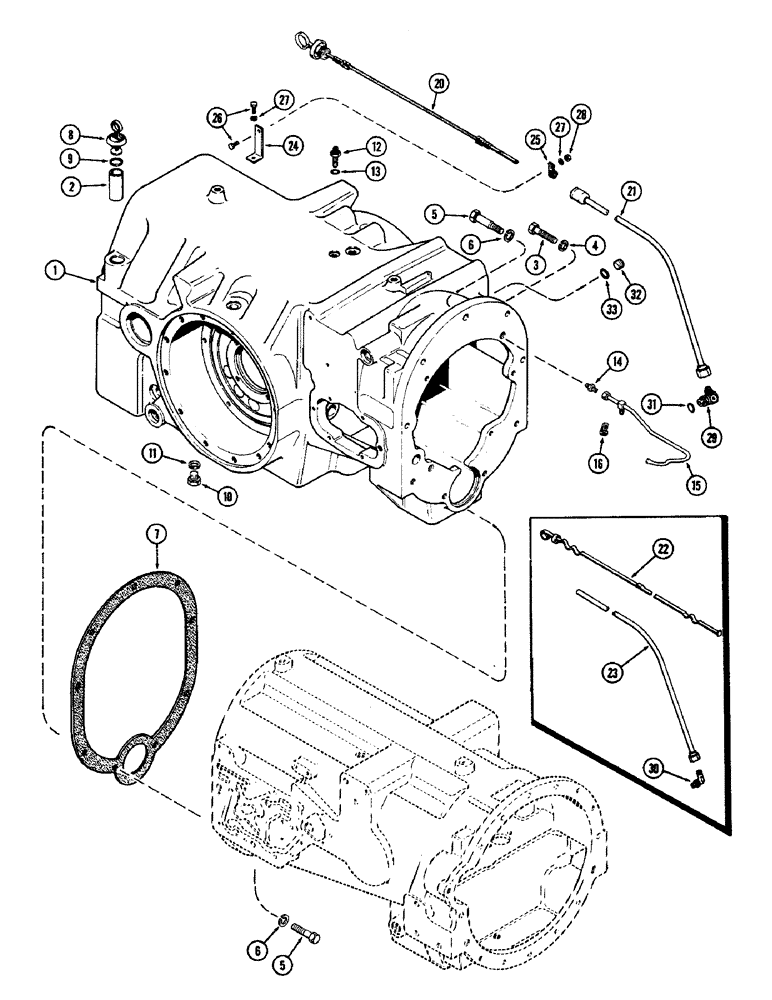

Запчасти Case IH 2590 (6-170) - TRANSMISSION HOUSING (06) - POWER TRAIN

1

A142534

HOUSING

ASSEMBLY - transmission, Includes: Ref. 2

1шт.

2

A64405

TUBE

- oil filler

1шт.

3

113-621

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

8шт.

4

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

5

A63086

STEP BOLT

BOLT - dowel (5/8" NC x 3-7/16")

1шт.

6

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

7

A150901

GASKET

- torque tube to transmission housing (Replaces A64087)

1шт.

8

A64404

BREATHER

ASSEMBLY - oil filler, Includes: Ref. 9

1шт.

9

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

- 1 x 1-1/4 x 1/8" (25.4 x 31.75 x 3.05 MM)

1шт.

10

A140222

PLUG

- drain

1шт.

11

A58608

GASKET

- plug

1шт.

12

A154119

FITTING

- bulkhead (9/16" NF x 7/16" NF) (Replaces 218-671)

1шт.

13

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- 1/4 x 23/64 x 5/64" (6.35 x 9.14 x 2.03 MM)

1шт.

14

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

CONNECTOR - lube tube, 5/16" tube x 1/2"-20

1шт.

15

A150622

TUBE

- lubrication, (C1) clutch (Replaces A150626)

1шт.

16

49845

CLAMP

- tube (See Figure 6-186)

1шт.

20

A154642

DIPSTICK

- oil level (Replaces A146317)

1шт.

21

A154641

TUBE

- dipstick (Replaces A142297)

1шт.

22

A146317

DIPSTICK

- oil level (Order A154642 and A154641)

1шт.

23

A142297

TUBE

- dipstick (Order A154642 and A154641)

1шт.

24

A146252

BRACKET

- tube support

1шт.

25

49838

CLAMP

-, Serial Range: tube-support

1шт.

26

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

27

92-6

LOCK WASHER,3/8"

2шт.

28

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

29

A161145

FITTING

ELBOW ASSEMBLY - 90 degrees (Transmission serial no. 10204107 and after), Includes: Ref. 31

1шт.

30

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Assy, (Prior to transmission serial no. 10204107), Includes: Ref. 31 90º, 3/4"-16, 37º x 3/4"-16, O-Ring

1шт.

32

9841223

PLUG,1-1/16" - 12 ORB

Assy - hex socket, 7/8"-14 (LH side)

1шт.

33

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 61/64 x 3/32" (19.05 x 24.21 x 2.38 MM), Includes: Ref. 33

1шт.

31

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 x 13/16 x 3/32" (16.27 x 20.64 x 2.38 MM)

1шт.
