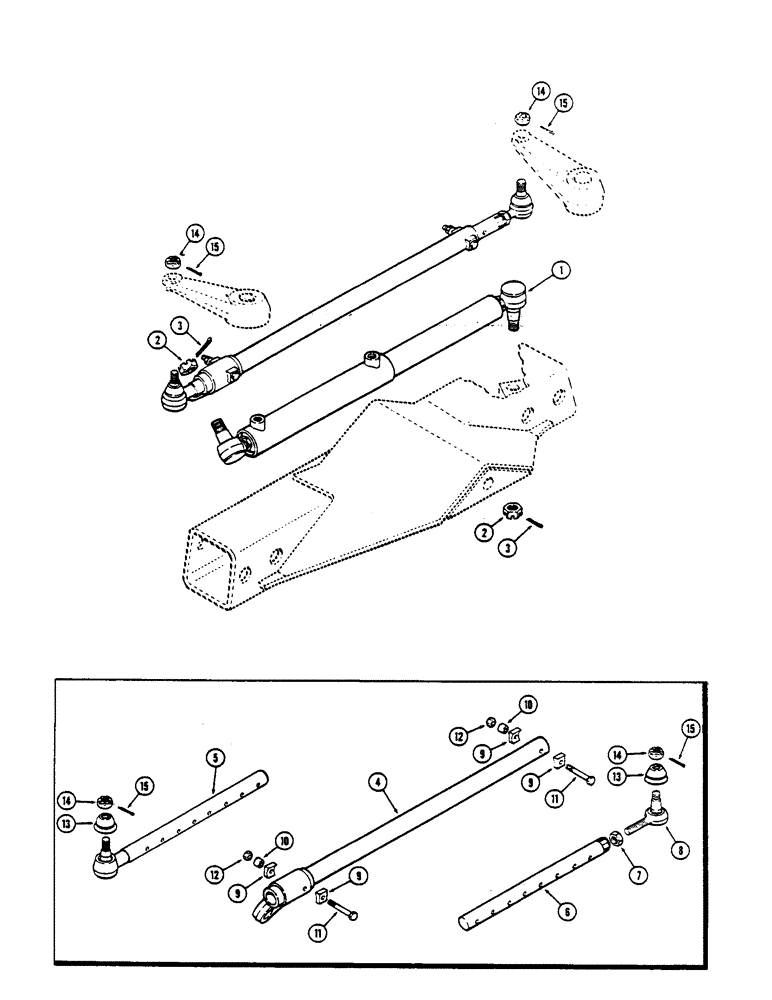

Запчасти Case IH 2590 (5-164) - STEERING TIE RODS (05) - STEERING

1

REF

INSTRUCTION

CYLINDER - steering (See Figure 5-158)

1шт.

2

25-1314

SLOTTED NUT,7/8"-14, G5

NUT - 7/8" NF hex slotted

2шт.

4

A149033

TUBE

- tie rod

1шт.

5

A160197

ROD

END - tie rod, R.H.

1шт.

6

A143876

ROD

END - tie rod, L.H.

1шт.

7

F22580

NUT

- tie rod lock

1шт.

8

A162214

BALL

JOINT - end ball, L.H. (Order A160200)

1шт.

9

A43369

CLAMP

- tie rod

2шт.

10

A145846

SPACER

- tie rod clamp, 25/64 x 3/4 x 9/16" (9.90 x 19.05 x 14.22 MM)

2шт.

11

26-648

BOLT,Hex, 3/8" - 16 x 3", Gr 8

- 3/8 x 3" NC hex (Grade 8)

2шт.

12

131-52

NUT,3/8"-16, GC

NUT - 3/8" hex ESNA lock

2шт.

13

A160642

COVER

- dust

2шт.

14

25-1310

SLOTTED NUT,5/8"-18, G5

NUT - 5/8" NF hex slotted

2шт.

3

132-54

COTTER PIN,1/8" x 1 3/4"

PIN, Split (Cotter), 1/8" x 1 3/4"

2шт.

15

132-56

COTTER PIN,Ext Prong Sq Cut, 1/8" x 2"

Pin, Split (Cotter), 1/8" x 2"

2шт.
