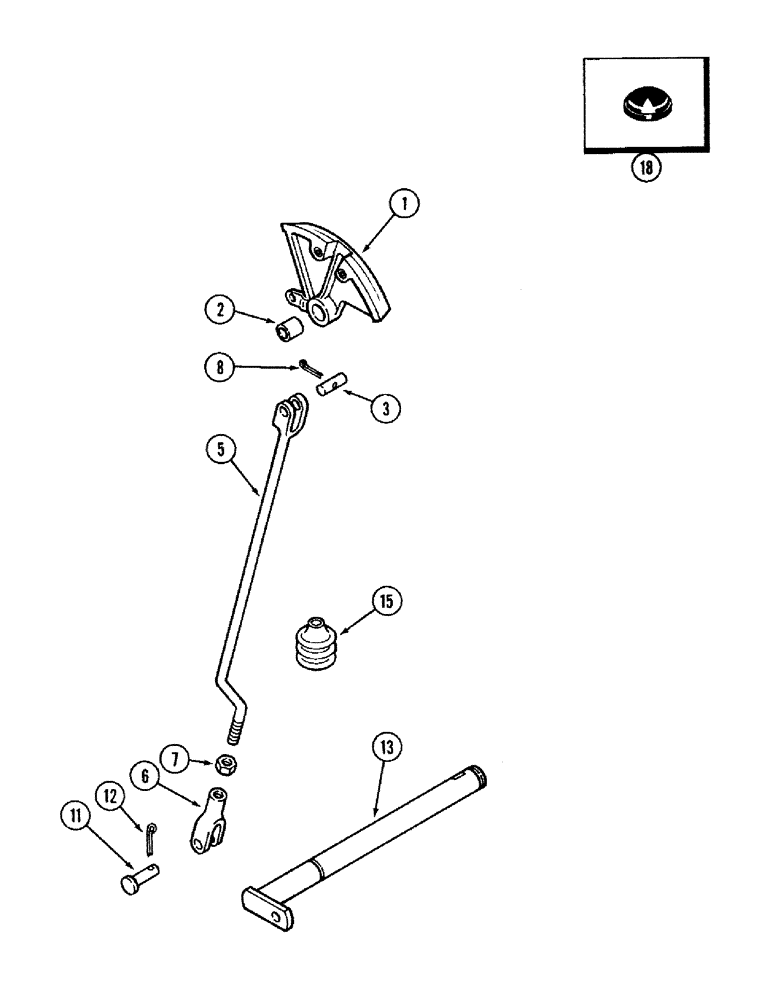

Запчасти Case IH 2394 (6-018) - PARK LOCK LINKAGE (06) - POWER TRAIN

1

A161147

QUADRANT

- park lock, Includes: Ref. 2

1шт.

2

A61866

BUSHING,15.95mm ID x 19.13mm OD x 18.41mm L

- pivot

1шт.

3

A145484

PIN,9.46mm OD x 28.57mm L

-, Serial Range: rod-quadrant

1шт.

5

A135237

ROD

- control, Serial Range: quadrant-lever

1шт.

6

213-126

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS - adjustable, 3/8 inch NF

1шт.

7

425-116

NUT,3/8" - 24, Gr 5

Hex 3/8"-24, G5

1шт.

8

432-620

COTTER PIN,3/32" x 1 1/4"

3/32" x 1 1/4"

1шт.

11

427-6106

CLEVIS PIN,9.53mm OD x 26.92mm L

PIN, CLEVIS, 3/8" x 1 1/16"

1шт.

12

32-612

COTTER PIN,3/32" x 3/4"

PIN - cotter, 3/32 x 2 inch

1шт.

13

REF

INSTRUCTION

LEVER - park lock (See Figure 6-60)

1шт.

15

A145931

BELLOWS

COVER - dust

1шт.

18

353-584

PLUG - button, recessed

1шт.
