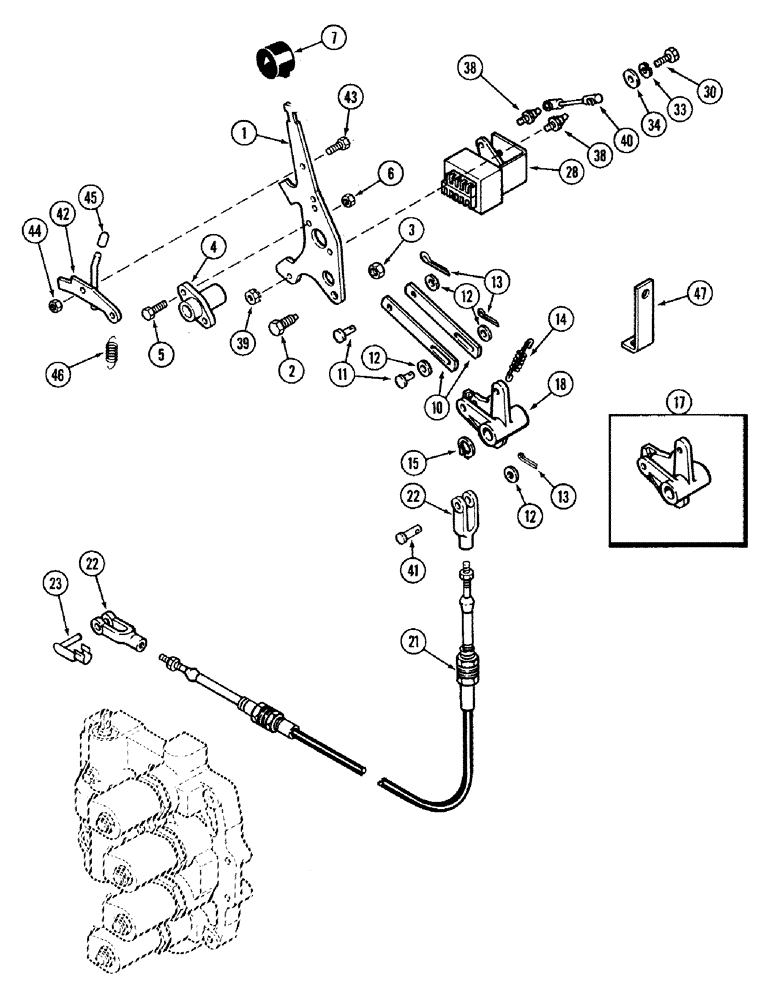

Запчасти Case IH 2394 (6-014) - POWER SHIFT RANGE LINKAGE (06) - POWER TRAIN

1

A176861

LEVER

- power shift range

1шт.

2

A161797

SCREW,3/8" - 16, Gr 8

- lever stop (12 speed transmission)

1шт.

2

A176207

SCREW,3/8" - 16 x 0.61", Gr 8

- lever stop (24 speed transmission)

1шт.

3

131-1306

JAM NUT,Jam, 3/8"-16

NUT - hex, jam, self-locking, 3/8 inch NC

1шт.

4

A160860

BUSHING

BEARING - control lever

1шт.

5

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

2шт.

6

230-4214

LOCK NUT,1/4"-20, GA

NUT - hex, self-locking, 1/4 inch NC

2шт.

7

A177441

KNOB

- shift lever (Red)

1шт.

Knob is actually power red (orange/red) per print.

1шт.

10

A177185

LINK

- lever return

2шт.

11

427-4077

CLEVIS PIN,1/4" x .770"

PIN - clevis, 1/4 x 43/64 inch

2шт.

12

495-21031

WASHER,1/4"

- flat, 5/16 x 47/64 x 1/16 inch

4шт.

13

432-412

COTTER PIN,1/16" x 3/4"

PIN, SPLIT (COTTER), 1/16" x 3/4"

3шт.

14

A164415

SPRING

- lever return

1шт.

15

100-1162

SNAP RING,#62, Ext

Ring, Snap, #62, Ext

1шт.

17

A176545

LEVER

- reverse interlock (12 speed transmission)

1шт.

18

A176597

LEVER

- reverse interlock (24 speed transmission)

1шт.

21

A135243

CABLE

- reverse interlock

1шт.

22

213-114

ADJUSTABLE CLEVIS,1/4" - 28

CLEVIS - adjustable, 1/4 inch NF

2шт.

23

A163098

PIN

- spring, 1/4 inch

1шт.

28

1964841C1

SWITCH

ASSEMBLY - range (24 speed transmission) (Replaces A180572)

1шт.

28

1964842C1

SWITCH

ASSEMBLY - range (12 speed transmission) (Replaces A180201)

1шт.

30

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

- hex, 1/4 NC x 5/8 inch

1шт.

33

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

34

495-21031

WASHER,1/4"

- flat, 5/16 x 47/64 x 1/16 inch

1шт.

38

A161786

STUD

- ball joint

2шт.

39

193-1000

NUT,Keps, w/LW,#10-32

- hex, with external tooth lock washer, No. 10 NF

1шт.

40

A161787

HOUSING

ROD ASSEMBLY - ball joint

1шт.

41

A8823

PIN,6.29mm OD x 26.99mm L

- clevis, 1/4 x 21/32 inch

1шт.

42

A176859

LATCH

- range lever

1шт.

43

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

1шт.

44

230-4214

LOCK NUT,1/4"-20, GA

NUT - hex, self-locking, 1/4 inch NC

1шт.

45

A177232

CAP

- latch

1шт.

46

A163012

SPRING

- latch return

1шт.

47

A146252

BRACKET

- return spring

1шт.
