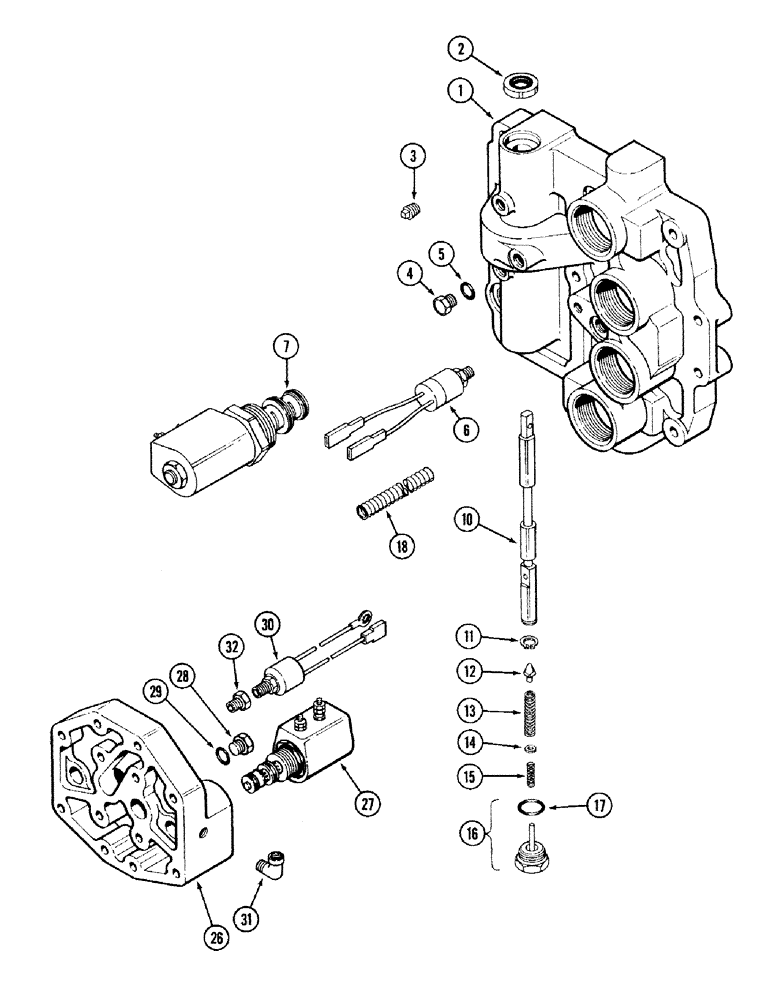

Запчасти Case IH 2394 (6-006) - HYDRAULIC MANIFOLD ASSEMBLY, ELECTRIC SHIFT (06) - POWER TRAIN

NSS

NOT SOLD SEPARAT

MANIFOLD ASSEMBLY - electric shift, Includes: Ref. 1 - 18 and harness

1шт.

1

A158337

MANIFOLD

- electric shift

1шт.

2

A37558

SEAL,14.27mm ID x 28.7mm OD x 6.73mm Thk

- oil

1шт.

3

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

- square head, 1/8 inch PT, Includes: Ref. 5

1шт.

4

9672438

PLUG,7/16" - 20 ORB

Incl. Ref. 5 Hex Hd, 7/16"-20 ORB

5шт.

5

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

6

A156555

SWITCH

- pressure, oil

3шт.

7

A160899

VALVE

ASSEMBLY - solenoid (See Figure 6-8)

4шт.

10

A151914

SPOOL

- modulator

1шт.

11

G46176

SNAP RING,#56, Ext

Ring, Snap, #56, Ext

1шт.

12

A61991

POINT

- modulator

1шт.

13

A61990

SPRING

- primary, modulator (Order A60155)

1шт.

14

A61989

WASHER,4.95mm ID x 9.27mm OD x 1.02mm Thk

- spring guide

1шт.

15

A61988

SPRING

- secondary, modulator

1шт.

16

A61985

PLUG

ASSEMBLY - modulator, Includes: Ref. 17

1шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

18

A168840

CONDUIT

- convoluted (Order A181759)

1шт.

A156760

HARNESS

- solenoid ground (See Figure 4-22)

1шт.

NSS

NOT SOLD SEPARAT

MANIFOLD ASSEMBLY - dual range, Includes: Ref. 26 - 32

1шт.

26

A168960

TUBE ASSY.

MANIFOLD - duel range (Replaces A156411)

1шт.

27

A156471

VALVE

ASSEMBLY - solenoid (See Figure 6-8)

2шт.

28

9672438

PLUG,7/16" - 20 ORB

Incl. Ref. 29 Hex Hd, 7/16"-20 ORB

2шт.

29

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

A156759

HARNESS

- solenoid ground (See Figure 4-22)

1шт.

30

A176755

SWITCH

- pressure, oil

2шт.

31

221-1411

ELBOW,90 Degree, 1/8"-27, NPT

- street, 90 degree, 1/8 inch PT

1шт.

32

217-9

ADAPTER,1/8"-27 Fem NPTF x 1/8"-27 NPTF Male

ADAPTOR - brass, 1/8 x 1/8 inch

1шт.
