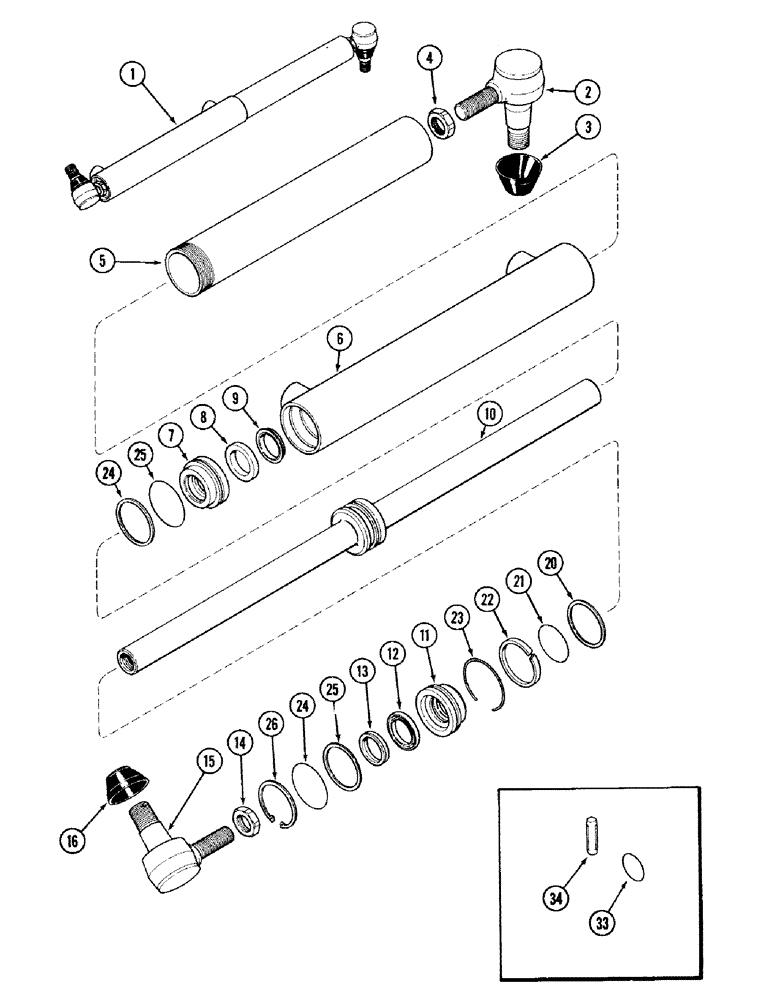

Запчасти Case IH 2394 (5-12) - STEERING CYLINDER (05) - STEERING

1

G102894

CYLINDER

ASSEMBLY - steering, Includes: Ref. 2 - 34

1шт.

2

L59042

BALL JOINT

ASSEMBLY - closed end, Includes: Ref. 3

1шт.

3

D72832

COVER

- dust

1шт.

4

G107167

NUT

- special, hex jam, 7/8 inch NF

1шт.

5

G101395

TUBE,2.38" OD x 14.31" L

- cylinder

1шт.

6

G101800

TUBE,2.321" ID x 2.388" OD x 17.1" L

- cylinder (With ports)

1шт.

7

G101400

GLAND

- tube

1шт.

8

G101401

SEAT

SEAL - rod

1шт.

Part of Cylinder Repair Service Kit, P/N G101805

1шт.

9

D95141

WIPER SEAL

WIPER - rod

1шт.

Part of Cylinder Repair Service Kit, P/N G101805

1шт.

G102895

ROD

ASSEMBLY - piston (Order components), Includes: Ref. 10 - 16

1шт.

10

G102272

ROD

- cylinder (Includes piston)

1шт.

11

G101400

GLAND

- tube

1шт.

12

G101401

SEAT

SEAL - rod

1шт.

Part of Cylinder Repair Service Kit, P/N G101805

1шт.

13

D95141

WIPER SEAL

WIPER - rod

1шт.

Part of Cylinder Repair Service Kit, P/N G101805

1шт.

14

G107167

NUT

- special, hex jam, 7/8 inch NF

1шт.

15

L59042

BALL JOINT

ASSEMBLY - piston rod

1шт.

16

D72832

COVER

- dust

1шт.

20

A61430

SEALING RING

RING - piston

1шт.

Part of Cylinder Repair Service Kit, P/N G101805

1шт.

21

238-5131

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

1шт.

Part of Cylinder Repair Service Kit, P/N G101805

1шт.

22

G101837

RING

- wear

1шт.

Part of Cylinder Repair Service Kit, P/N G101805

1шт.

23

G101804

RING

- gland retaining

1шт.

24

238-5137

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

2шт.

Part of Cylinder Repair Service Kit, P/N G101805

1шт.

25

G101803

RING

- back-up

2шт.

Part of Cylinder Repair Service Kit, P/N G101805

1шт.

26

100-21225

SNAP RING,2.25", Int, #225

Ring, Snap, , Retainer gland 2.25", Int, #225

1шт.

33

238-6124

O-RING,0.103" Thk x 1.237" ID, -124, Cl 6, 90 Duro

1шт.

Part of Cylinder Repair Service Kit, P/N G101805

1шт.

34

G100258

GROOVED PIN,3/8" x 1 3/4", Type F, Hardened

Pin, Grooved, , retaining 3/8" x 1 3/4", Type F, Hardened

1шт.

Part of Cylinder Repair Service Kit, P/N G101805

1шт.

G101805

KIT

- service, cylinder repair, Includes: Ref. 8, 9, 12, 13, 20, 21, 22, 24, 25, 33 and 34, Items 33 and 34 are not used this application)

1шт.
