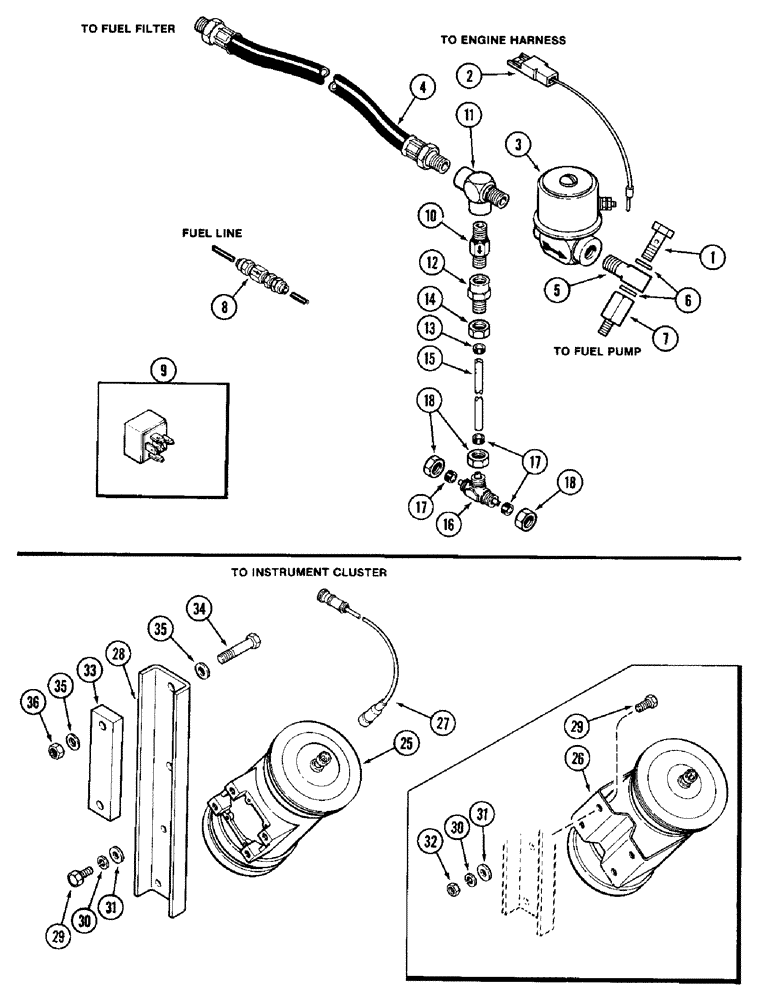

Запчасти Case IH 2394 (4-60) - ENGINE AUTOMATIC SHUTOFF KIT (04) - ELECTRICAL SYSTEMS

A180566

SHUTOFF KIT - automatic, engine (Machinery Item), Includes: Ref. 1 - 18

1шт.

1

A47945

BOLT

CONNECTOR BOLT - oil pressure, hollow

1шт.

2

A165227

ELECTRICAL WIRE

WIRE - switch to firewall connector, 52 inch

1шт.

3

A176720

VALVE

ASSEMBLY - fuel

1шт.

4

A47946

HOSE

- fuel, 15-3/8 inch long

1шт.

5

A47919

FITTING

- banjo type

1шт.

6

A27928

WASHER,14.22mm ID x 19.18mm OD x 2.06mm Thk

- banjo fitting, copper

2шт.

7

A47944

ADAPTER

- extension

1шт.

8

A48232

VALVE

- check

1шт.

9

A147176

RELAY

- 30 amp

1шт.

10

A180904

VALVE

- pressure relief

1шт.

11

217-51

TEE,1/4"-18 NPTF Fem x 1/4"-18 NPTF Male Run

- pipe, 1/4 inch

1шт.

12

222-5132

FITTING,7/16"-24 x 1/4" NPT Fem

CONNECTOR - straight, 1/4 inch tube, Includes: Ref. 13 and 14

1шт.

13

222-5185

SLEEVE,1/4" Tube

- 1/4 " tube OD

1шт.

14

222-5180

TUBE NUT,7/16"-24

- hex, 1/4 tube OD x 7/16"-24

1шт.

15

A48233

HOSE - nylon, 1/4 OD x 9 inch (Order L108947 and, Serial Range: cut-length)

1шт.

16

222-2750

TEE

- 1/4 inch tube, Includes: Ref. 17 and 18

1шт.

17

NSS

NOT SOLD SEPARAT

SLEEVE - flanged, 1/4 inch tube OD

3шт.

18

NSS

NOT SOLD SEPARAT

NUT - hex, 1/4 tube OD x 7/16-24 inch

3шт.

A165226

SHUTOFF KIT - engine automatic (Machinery Item) (Order A180566), Includes: Ref. 1 - 7 below

1шт.

1

A47945

BOLT

CONNECTOR BOLT - oil pressure, hollow

1шт.

2

A165227

ELECTRICAL WIRE

WIRE - switch to firewall connector, 52 inch

1шт.

3

A47917

VALVE

ASSEMBLY - fuel

1шт.

4

A47946

HOSE

- fuel, 15-3/8 inch long

1шт.

5

A47919

FITTING

- banjo type

1шт.

6

A27928

WASHER,14.22mm ID x 19.18mm OD x 2.06mm Thk

- banjo fitting, copper

2шт.

7

A47944

ADAPTER

- extension

1шт.

A67547

SENSOR ATTACHMENT - ground speed (Machinery Item), Includes: Ref. 25 - 36

1шт.

25

A177139

RELAY

SENSOR - ground speed

1шт.

For service order sensor 1983292C1, bracket 1960847C2 and attaching hardware. See Figure 4-62.

1шт.

26

A169110

SENSOR

- ground speed

1шт.

For service order sensor 1983292C1, bracket 1960847C2 and attaching hardware. See Figure 4-62.

1шт.

27

A167862

HARNESS

- sensor

1шт.

28

A167568

BRACKET

- mounting, sensor

1шт.

29

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

30

492-11038

LOCK WASHER,3/8"

2шт.

31

195-525

WASHER,3/8", SAE

- flat, 13/32 x 13/16 x 1/16 inch

2шт.

32

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

33

A167577

PLATE

- sensor clamp

1шт.

34

814-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 8.8

2шт.

35

895-11016

WASHER,17.5mm ID x 30mm OD x 3mm Thk

Flat M16 x 30 x 3

4шт.

36

825-1116

NUT,M16, Cl 8

2шт.
