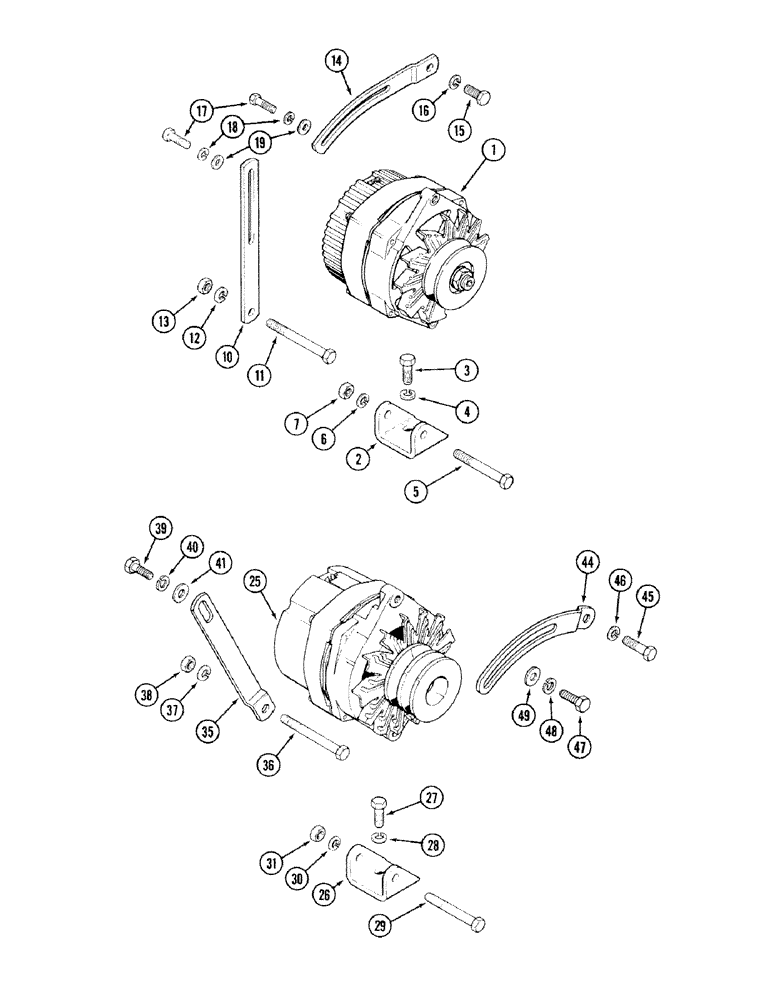

Запчасти Case IH 2394 (4-46) - ALTERNATOR MOUNTING (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
ALTERNATOR ASSEMBLY - engine (See Figure 4-48), 72 ampere
1шт.
2
A160391
BRACKET
- alternator mounting
1шт.
3
413-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5
- hex, 3/8 NC x 1 inch
2шт.
4
92-11038
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
2шт.
5
413-648
BOLT,Hex, 3/8" - 16 x 3", Gr 5
1шт.
6
492-11038
LOCK WASHER,3/8"
1шт.
7
425-106
NUT,3/8"-16, Cl 5
1шт.
10
A59098
STRAP
- adjusting
1шт.
11
413-656
BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5
- hex, 3/8 NC x 3-1/2 inch
1шт.
12
492-11038
LOCK WASHER,3/8"
1шт.
13
425-106
NUT,3/8"-16, Cl 5
1шт.
14
A145326
STRAP
- adjusting
1шт.
15
413-614
BOLT,Hex, 3/8" - 16 x 7/8", Gr 5
1шт.
16
92-11038
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
1шт.
17
814-8025
BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd
- hex, 8 - 1.25 x 25 mm
2шт.
19
495-21-38
WASHER - flat, 3/8 x 7/8 x 5/64 inch
2шт.
25
REF
INSTRUCTION
ALTERNATOR ASSEMBLY - engine (See Figure 4-50), 105 ampere
1шт.
26
A160391
BRACKET
- alternator mounting
1шт.
27
413-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5
- hex, 3/8 NC x 1 inch
2шт.
28
92-11038
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
2шт.
29
413-648
BOLT,Hex, 3/8" - 16 x 3", Gr 5
1шт.
30
492-11038
LOCK WASHER,3/8"
1шт.
31
425-106
NUT,3/8"-16, Cl 5
1шт.
35
A163125
STRAP
- rear support
1шт.
36
413-656
BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5
- hex, 3/8 NC x 3-1/2 inch
1шт.
37
492-11038
LOCK WASHER,3/8"
1шт.
38
425-106
NUT,3/8"-16, Cl 5
1шт.
39
614-10025
BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8
1шт.
40
892-11010
LOCK WASHER,M10
1шт.
41
495-21044
WASHER,3/8"
(flat, 7/16 x 1 x 5/64 inch) 3/8"
1шт.
44
A163126
STRAP
- alternator adjusting
1шт.
45
13-614
BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd
1шт.
46
92-11038
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
1шт.
47
814-10025
BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd
1шт.
48
892-11010
LOCK WASHER,M10
1шт.
49
495-21044
WASHER,3/8"
(flat, 7/16 x 1 x 5/64 inch) 3/8"
1шт.
Выбрано товаров: 37
