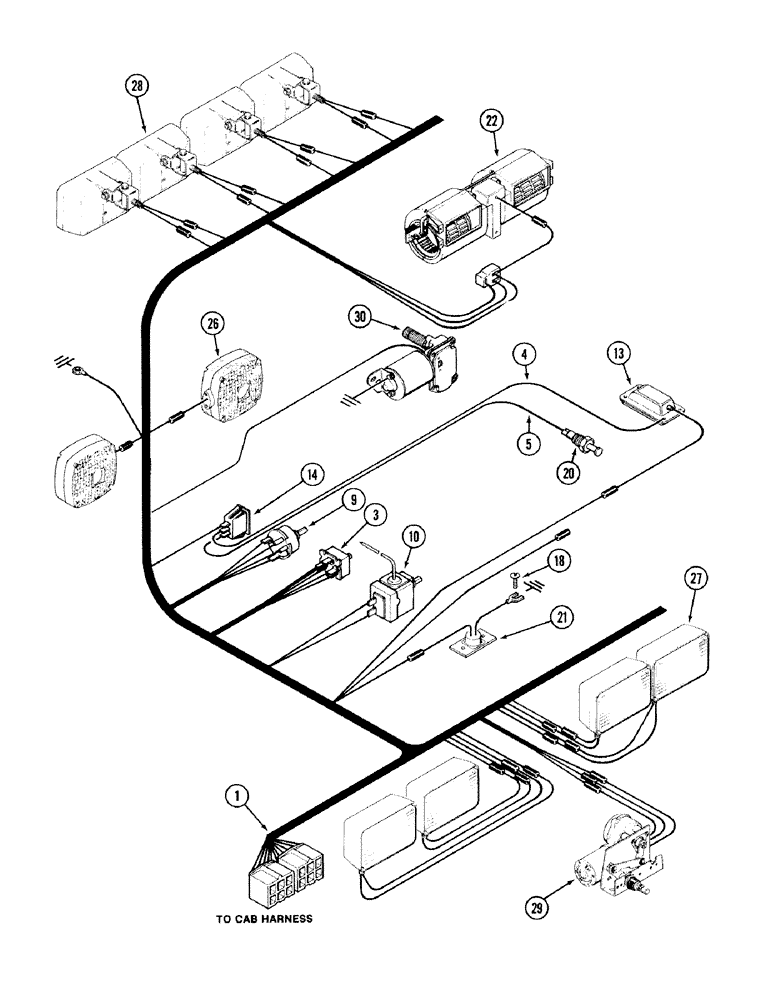

Запчасти Case IH 2394 (4-18) - CAB HEADLINER WIRING (04) - ELECTRICAL SYSTEMS

1

F66064

HARNESS

ASSEMBLY - headliner wiring (Left mounted rear wiper)

1шт.

1

F64800

HARNESS

ASSEMBLY - headliner wiring (Right mounted rear wiper)

1шт.

3

REF

INSTRUCTION

SWITCH - blower (See Figure 9-142)

1шт.

4

F64731

CABLE PULLING GRIP

WIRE - dome light to switch, brown

1шт.

5

F64127

ELECTRICAL WIRE

WIRE - dome light switch to door light switch, white/black

1шт.

9

REF

INSTRUCTION

SWITCH - wiper (See Figure 9-142)

1шт.

10

REF

INSTRUCTION

SWITCH - air conditioning (See Figure 9-142)

1шт.

13

REF

INSTRUCTION

LAMP - dome (See Figure 9-120)

1шт.

14

REF

INSTRUCTION

SWITCH - dome lamp (See Figure 9-142)

1шт.

18

280-1658

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - self-tapping, hex washer head, No. 10-16 x 1/2 inch

1шт.

20

F63895

SWITCH

- lamp, door opening

1шт.

21

REF

INSTRUCTION

LAMP - console (See Figure 9-120)

1шт.

22

REF

INSTRUCTION

BLOWER ASSEMBLY - air (See Figure 9-124)

1шт.

26

A44201

LIGHT ASSY.

LAMP - flasher (See Figure 4-52)

2шт.

27

REF

INSTRUCTION

LAMP - front flood (See Figure 4-56)

1шт.

28

REF

INSTRUCTION

LAMP - rear flood (See Figure 4-54)

1шт.

29

REF

INSTRUCTION

WIPER ASSEMBLY - windshield (See Figure 9-144 or 9-146)

1шт.

30

REF

INSTRUCTION

WIPER ASSEMBLY - rear window (See Figure 9-148)

1шт.
