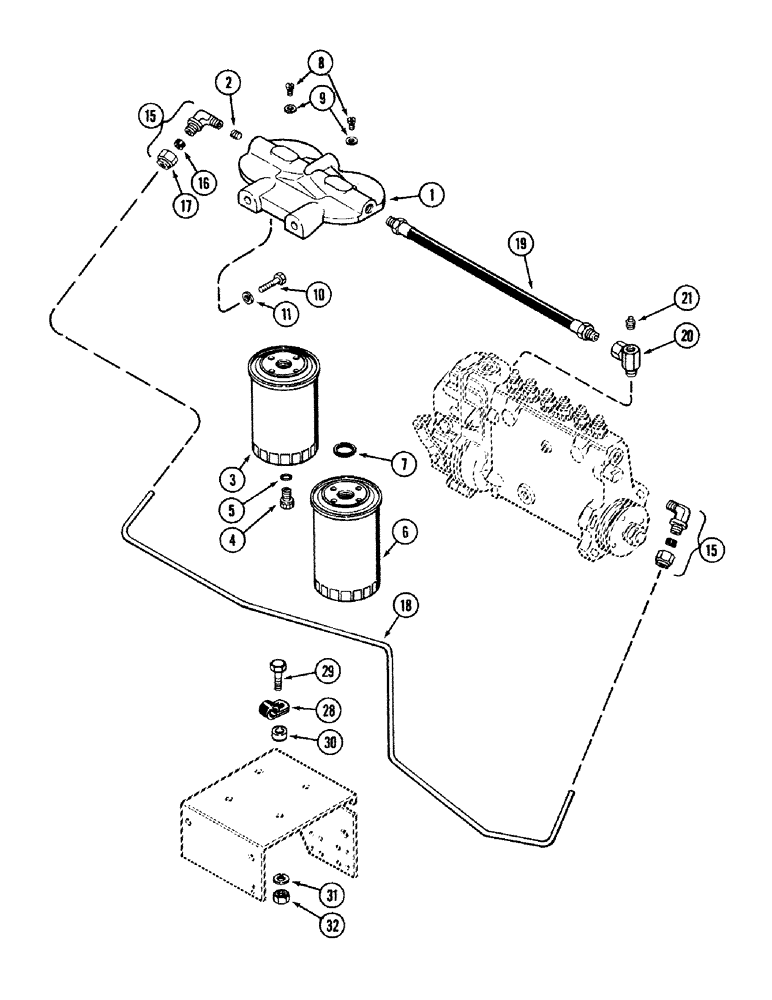

Запчасти Case IH 2394 (3-06) - FUEL INJECTION FILTER SYSTEM, 504BDT DIESEL ENGINE (03) - FUEL SYSTEM

1

A155489

HEAD

ASSEMBLY - fuel filter, Includes: Ref. 2

1шт.

2

217-849

PLUG - hex socket, 1/8 inch PT

1шт.

A44068

FUEL FILTER

KIT - filter element replacement, Includes: Ref. 3 - 7

1шт.

3

NSS

NOT SOLD SEPARAT

FILTER - first stage, Includes: Ref. 4 and 5

1шт.

4

G49080

PLUG

- 3/8" NF plastic

1шт.

5

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk

1шт.

6

NSS

NOT SOLD SEPARAT

FILTER - second stage, Includes: Ref. 7

1шт.

7

NSS

NOT SOLD SEPARAT

GASKET - second syage filter

1шт.

Whenever filter is removed, gasket must also be removed and replaced with a NEW gasket.

1шт.

8

A20663

SCREW,Fil Hd, #10 - 32 x 5/16"

- bleed

2шт.

9

A146368

WASHER,5.08mm ID x 9.65mm OD x 1.02mm Thk

- bleed screw

2шт.

10

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

11

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

15

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

- 90 degree, compression, 5/16 tube OD x 1/4 inch PT, Includes: Ref. 16 and 17

2шт.

16

222-103

SLEEVE,5/16" Tube

1шт.

17

222-113

TUBE NUT,9/16"-24

NUT - hex, 5/16 tube OD x 9/16-24 inch

1шт.

18

A157329

TUBE

- pump to filter head

1шт.

19

A65564

HOSE,9.53mm ID x 390.65mm L, SAE 100R6

- filter, Serial Range: head-pump

1шт.

20

A20539

FITTING

UNION - switch, Serial Range: hose-pump

1шт.

21

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

- square, 1/8 inch PT

1шт.

28

66297

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

- tube

1шт.

29

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

30

A59660

SPACER

- clip, fuel tube

1шт.

31

492-11038

LOCK WASHER,3/8"

1шт.

32

425-106

NUT,3/8"-16, Cl 5

1шт.
