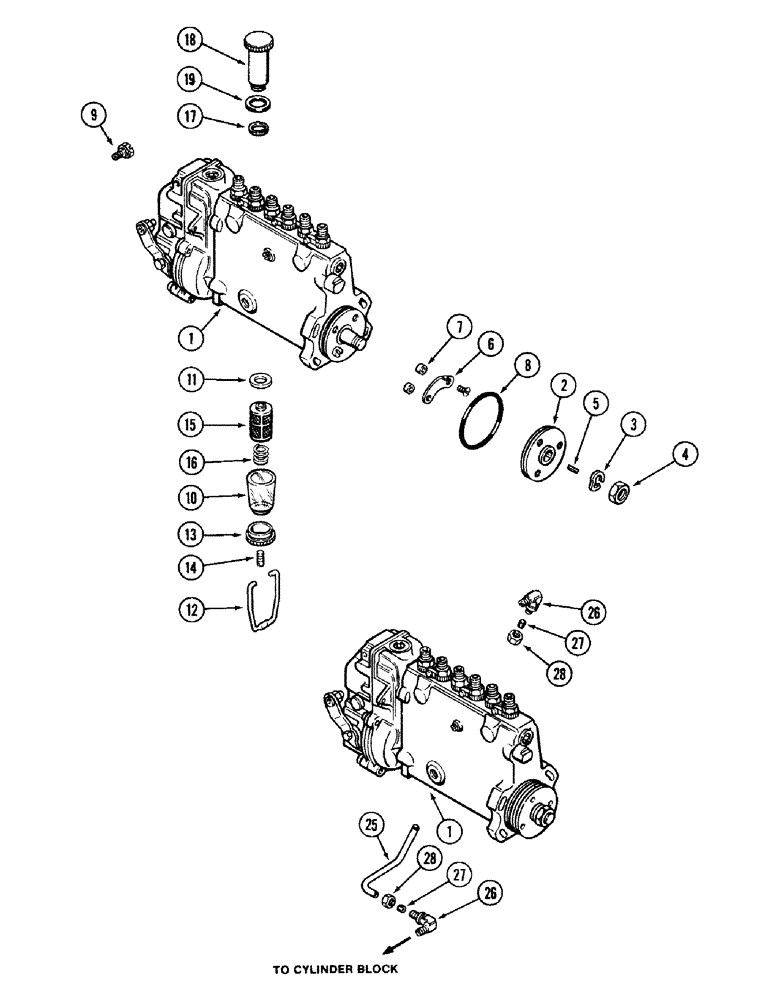

Запчасти Case IH 2394 (3-04) - FUEL INJECTION PUMP, 504BDT DIESEL ENGINE (03) - FUEL SYSTEM

1

A157032

PUMP, FUEL INJECTION

PUMP ASSEMBLY - fuel injection (New), Includes: Ref. 2 - 18

1шт.

1

AR157032

REMAN-INJECTION PUMP

PUMP ASSEMBLY - fuel injection (Remanufactured), Includes: Ref. 2 - 18

1шт.

1

AC157032

CORE-INJECTION PUMP

RETURN NUMBER - use this number to return pump core for credit

1шт.

2

A41857

HUB

- pump drive

1шт.

3

A41851

LOCK WASHER

- lock, hub nut

1шт.

4

A41852

LOCK NUT

- hex lock

1шт.

5

A41850

KEY

- hub to pump shaft

1шт.

6

A41858

INDICATOR

POINTER - timing

1шт.

7

A41859

BUSHING

SPACER - pointer

2шт.

8

A41856

O-RING,3mm Thk x 75mm ID

- seal

1шт.

9

614-4008

BOLT,Hex, M4 x 0.7 x 8mm, Cl 8.8, Full Thd

- pump stop control cable lock

1шт.

10

A43347

BOWL

- glass

1шт.

11

A43346

GASKET

- bowl

1шт.

12

A43350

CLAMP

HANGER - bowl

1шт.

13

A43348

NUT

SEAT - bowl

1шт.

14

A43349

STUD

- bowl

1шт.

15

A43344

FILTER, ELEMENT

ELEMENT - filter

1шт.

16

A43345

SPRING

- element

1шт.

17

A43351

SEAL

- copper

2шт.

18

A43343

CARTRIDGE

PUMP ASSEMBLY - hand primer

1шт.

19

A45342

GASKET

- hand pump

1шт.

25

A136903

TUBE

-, Serial Range: pump-block

1шт.

26

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

- 90 degree, 1/4 inch tube x 1/8 inch PT, Includes: Ref. 27 and 28

2шт.

27

222-102

SLEEVE,1/4" Tube

1шт.

28

87017024

TUBE NUT,1/2"-24

NUT - hex, 1/4 tube OD x 1/2-24 inch

1шт.
