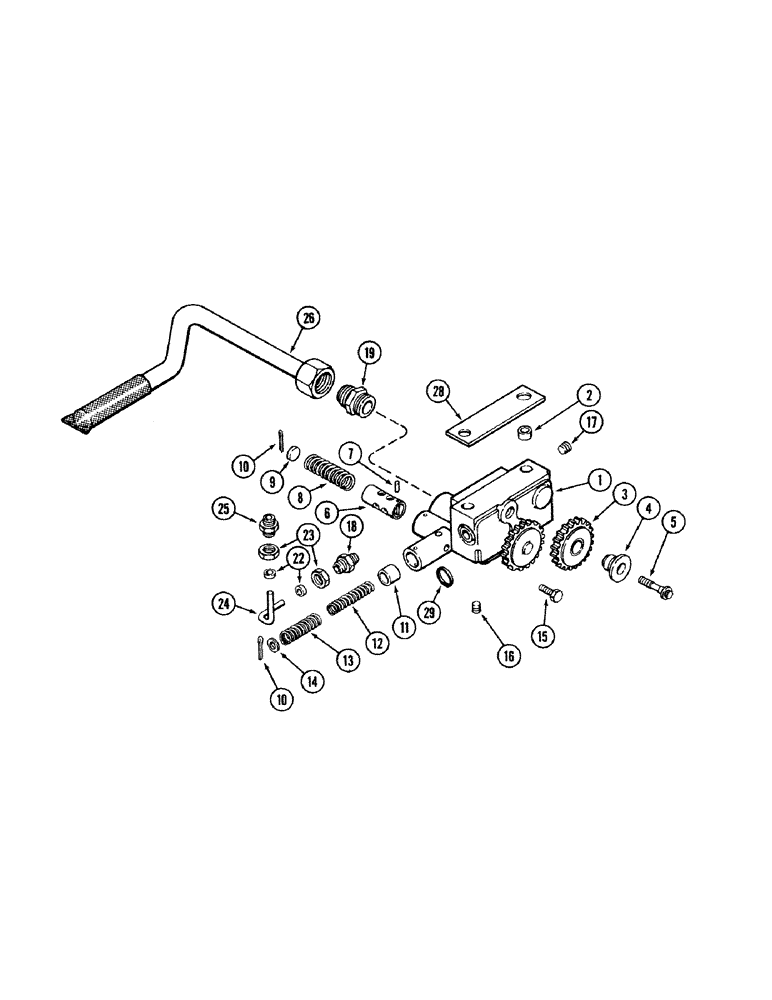

Запчасти Case IH 2394 (2-40) - OIL PUMP, 504BDT DIESEL ENGINE (02) - ENGINE

1

A152998

PUMP

ASSEMBLY - engine oil, Includes: Ref. 2 - 18

1шт.

2

A58915

SLEEVE

- locating

1шт.

3

A63941

GEAR WHEEL

GEAR ASSEMBLY - idler

1шт.

4

A63944

SHAFT

- idler gear

1шт.

5

A63945

12 PT SCREW

BOLT - cap, LH thread

1шт.

6

A75286

VALVE

ASSEMBLY - relief, Includes: Ref. 7

1шт.

7

138-2063

PIN,3/32" x 1", Coiled

1шт.

8

A63949

SPRING

- relief valve, 2-7/8" free length

1шт.

9

23624R1

PLUG

- cup type expansion, 1 inch diameter (Order 41-1616)

1шт.

10

132-36

COTTER PIN,Ext Prong Sq Cut, 3/32" x 2"

PIN - cotter, 3/32 x 1-3/4 inch

2шт.

11

A76152

VALVE

- safety, pressure relief

1шт.

12

A76154

SPRING

- inner, 3-7/64" free length

1шт.

13

A76153

SPRING

- outer, 2-7/16" free length

1шт.

14

95-11041

WASHER,3/8"

flat (13/32 x 13/16 x 1/16") 3/8"

1шт.

15

26-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

4шт.

16

221-850

PLUG,Hex Soc, 1/16"-27

- hex socket, 1/16 inch PT

3шт.

17

217-436

PLUG,Hex Soc, 3/8" - 18 NPTF

- hex socket, 3/8 inch PT

1шт.

18

222-22

FITTING,1/2"-24 x 1/8" NPTF w/Nut

ADAPTER - compression, 1/4 tube OD x 1/8 inch PT

1шт.

19

A142004

CONNECTOR, ELEC

CONNECTOR - suction tube

1шт.

22

222-153

SLEEVE,1/4" Tube

2шт.

23

87017024

TUBE NUT,1/2"-24

NUT - hex, 1/4 tube OD x 1/2-24 inch

2шт.

24

A75290

TUBE

- sensing, oil gallery

1шт.

25

222-22

FITTING,1/2"-24 x 1/8" NPTF w/Nut

ADAPTER - compression, 1/4 tube OD x 1/8 inch PT

1шт.

26

A148678

TUBE

- oil suction, with screen

1шт.

28

A58859

SHIM,.005" Thk

Oil pump .005" Thk

1шт.

29

A64434

O-RING,0.93" ID x 1.142" x 0.106"

- pump port

1шт.
