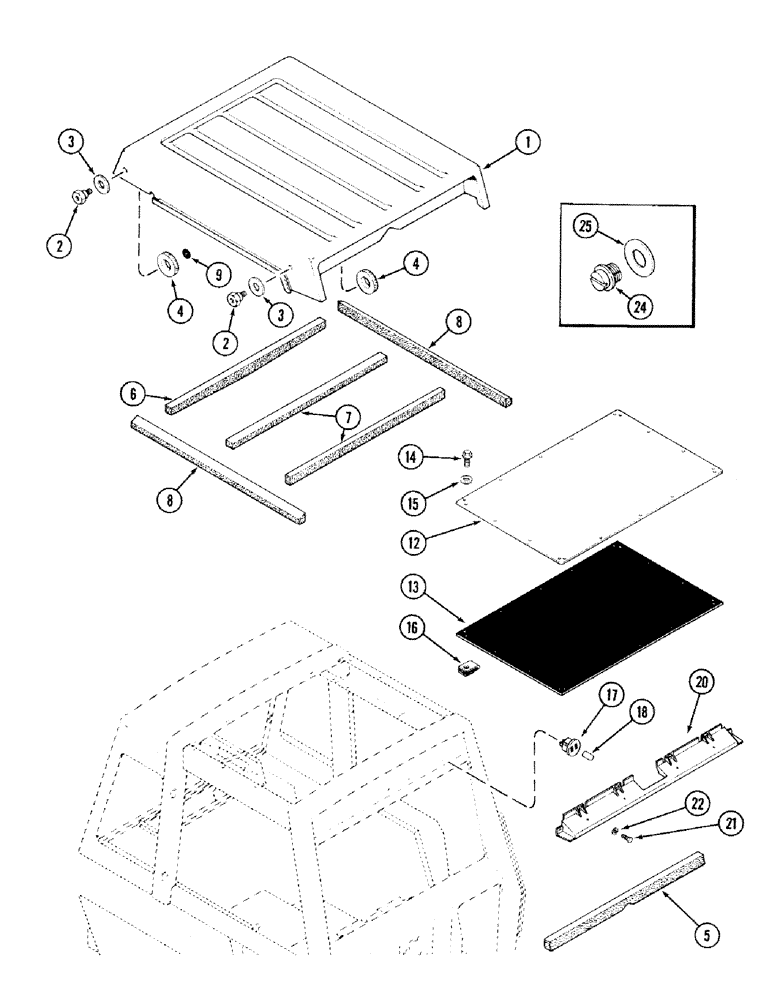

Запчасти Case IH 2394 (9-102) - CAB AND 4 POST ROPS, ROOF CAP AND ROOF (09) - CHASSIS/ATTACHMENTS

1

A181470

CAP

- roof, cab, red

1шт.

1

A177245

ROOF

CAP - roof, cab, white

1шт.

2

A163030

BOLT

- cab roor cap and lifting

4шт.

3

A163031

WASHER

- retaining, roof cap

4шт.

4

A185690

WASHER,32.5mm ID x 63.5mm OD x 9.5mm Thk

- retaining, roof cap

4шт.

5

A166496

FOAM

- roof cap support, front

1шт.

6

A166493

FOAM

- roof cap support, rear

1шт.

7

A166494

FOAM

- roof cap support, center (Order D71360)

2шт.

8

A166495

FOAM

- roof cap support, side

2шт.

9

A177335

WASHER

- roof cap rear mounting, nylon

2шт.

12

F64316

ROOF

- cab

1шт.

13

F64781

SEAL

- foam

1шт.

14

163-14

SCREW,Hex Wshr Hd, 1/4" - 20 x 1"

- machine, hex, 1/4 inch NC x 1 inch

18шт.

15

F64531

SEALING WASHER

WASHER - sealing

18шт.

16

131-825

NUT,Tinn, U, 1/4"-20

- U-type speed, 1/4 inch

18шт.

17

F64712

BUSHING

- terminal

4шт.

18

F64483

COVER

CAP - terminal

10шт.

20

F66024

SUPPORT

CHANNEL - lamp support, front

1шт.

21

281-16712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

SCREW - self-tapping, hex washer head, 1/4 NC x 3/4 inch

6шт.

22

192-83

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

24

353-550

PLUG,Slotted, 1/2"-13

Plastic, Lifting holes Slotted, 1/2"-13

4шт.

25

A165395

WASHER,.50mm ID x 1.0mm OD x .060 Thk

- flat, 1/2 x 1 x 1/16 inch

4шт.
