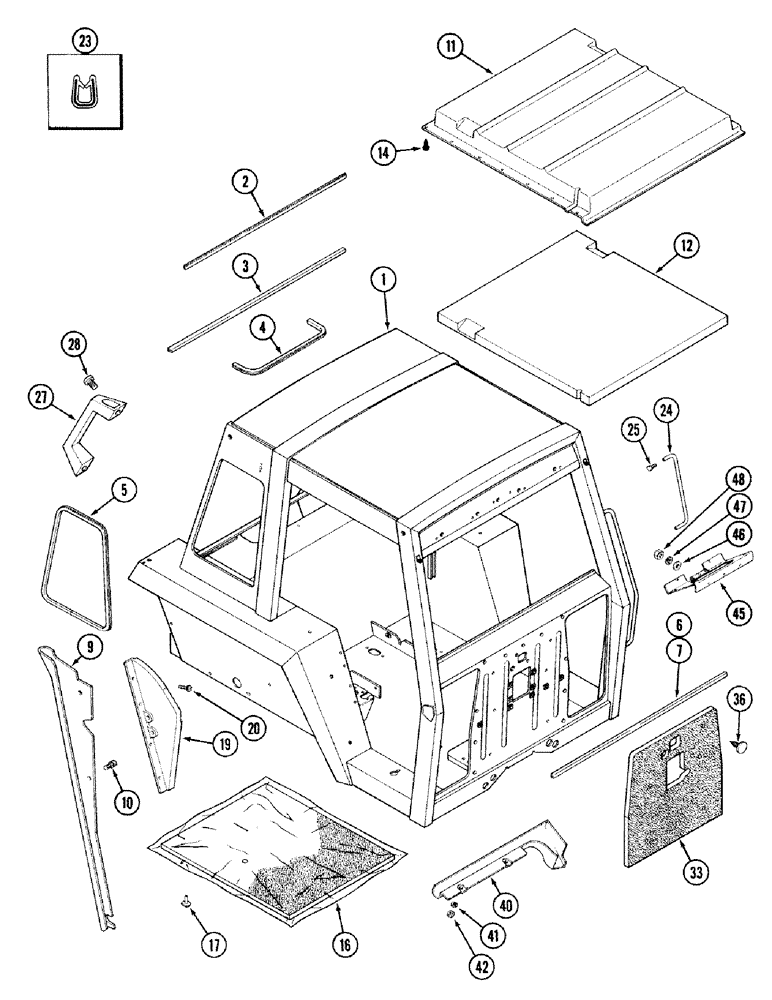

Запчасти Case IH 2394 (9-100) - 4 POST ROPS (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
F98324
FUNNEL
FRAME ASSEMBLY - ROPS (Machinery Item), Includes: Ref. 1 - 17
1шт.
1
NSS
NOT SOLD SEPARAT
FRAME - ROPS (Order F98252)
1шт.
2
NSS
NOT SOLD SEPARAT
MOULDING - rear window upper (Order F64277)
1шт.
3
NSS
NOT SOLD SEPARAT
MOULDING - rear window lower (Order F64277)
1шт.
4
NSS
NOT SOLD SEPARAT
MOULDING - horizontal wimdow (Order F64277)
1шт.
5
NSS
NOT SOLD SEPARAT
MOULDING - rear side window (Order F64277)
2шт.
6
NSS
NOT SOLD SEPARAT
MOULDING - front window (Order F64277)
1шт.
7
NSS
NOT SOLD SEPARAT
MOULDING - lower front (Order F64277)
2шт.
9
F64614
COVER ASSY
COVER - harness
1шт.
10
R53048
CLIP
PIN - speed, clinch
2шт.
11
F64803
PADDING
HEADLINER ASSEMBLY - frame, Includes: Ref. 12
1шт.
12
F64804
FOAM
- headliner
1шт.
14
F64519
SELF-TAP SCREW,Cross Wash Hd, #10-16 x 3/4"
SCREW - tapping, round x-recess, No. 10-16 x 3/4 inch (Order 1 washer F64315 and 1 screw 265-16512)
19шт.
16
F64802
FLOOR MAT
MAT - under floor (Order F66049)
1шт.
17
F64518
RETAINER
- mat
15шт.
19
NSS
NOT SOLD SEPARAT
PLATE - console support
1шт.
20
280-16516
SELF-TAP SCREW,Hex Wash Hd, #10 x 1"
SCREW - self-tapping, hex washer head, No. 10-16 x 1 inch
4шт.
23
F64277
SEAL
MOULDING - window, 50 foot, Serial Range: (Cut-lenght)
1шт.
24
A143834
HANDLE
- mounting
1шт.
25
409-7512
BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl
- hex flange, self-locking, 5/16 NC x 3/4 inch
2шт.
27
F64547
HANDLE
- grab
2шт.
28
140-116
SCREW,Cross Pan Hd, 1/4" - 20 x 1 1/4"
4шт.
33
A167044
PAD
- firewall
1шт.
36
A166346
FASTENER
- pad, firewall
6шт.
40
F64719
COVER
- harness
1шт.
41
195-81009
WASHER,5/16" x 3/4" x .065"
- flat, 5/16 x 3/4 x 1/16 inch
2шт.
42
129-119
NUT,1/4"-20, G5
2шт.
45
F66067
PANEL
- column support
1шт.
46
495-21031
WASHER,1/4"
- flat, 5/16 x 47/64 x 1/16 inch
3шт.
47
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
3шт.
48
425-104
NUT,1/4"-20, Cl 5
- hex, 1/4 inch NC
3шт.
Выбрано товаров: 31
