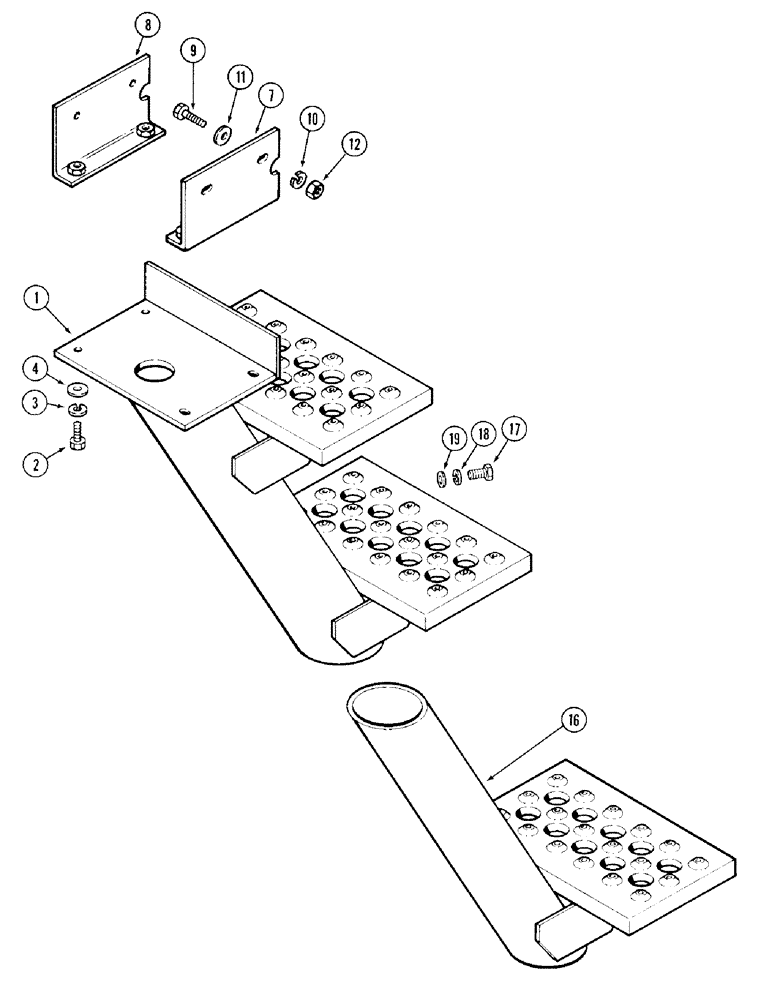

Запчасти Case IH 2394 (9-096) - STEPS - A176393 (09) - CHASSIS/ATTACHMENTS

1

A176393

STEP

- mounting, cab

1шт.

2

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

4шт.

3

492-11038

LOCK WASHER,3/8"

4шт.

4

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

4шт.

7

A169726

BRACKET

PLATE - step hanger, left

1шт.

8

A169725

BRACKET

PLATE - step hanger, right

1шт.

9

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

4шт.

10

492-11038

LOCK WASHER,3/8"

4шт.

11

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

4шт.

12

425-106

NUT,3/8"-16, Cl 5

4шт.

16

A164717

STEP

- extension

1шт.

17

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

18

492-11038

LOCK WASHER,3/8"

2шт.

19

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

2шт.
