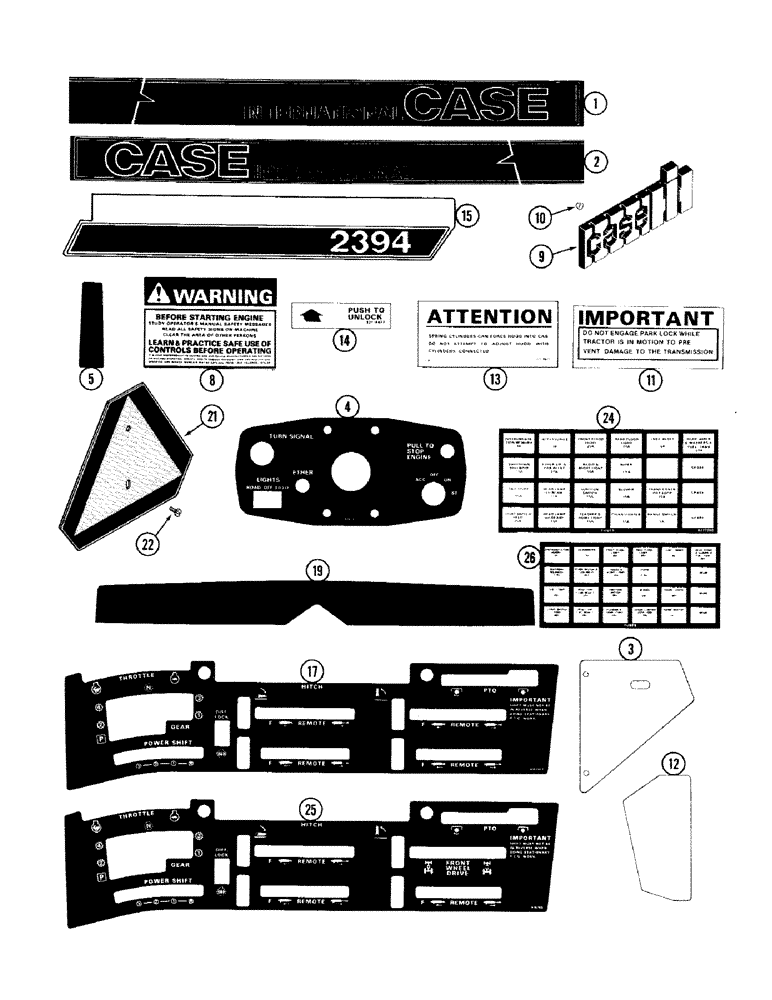

Запчасти Case IH 2394 (9-090) - DECALS, TRACTOR KIT (09) - CHASSIS/ATTACHMENTS

A67647

KIT - decal, tractor (Order components), Includes: Ref. 1 - 14

1шт.

1

A181403

DECAL

- Case International, right

1шт.

2

A181404

DECAL

- Case International, left

1шт.

3

A181392

DECAL

- right rear

1шт.

3

A181391

DECAL

- left rear

1шт.

4

A167975

DECAL

- control panel (On steering column)

1шт.

5

321-4142

DECAL

- sight line

1шт.

8

321-3705

DECAL

- Warning, before starting engine

1шт.

9

A181437

EMBLEM CASE/IH

EMBLEM - front, Case IH

1шт.

10

131-431

PUSH-ON NUT,Self, Threading, 1/4"

NUT - push on type, 1/4 inch, plated

2шт.

11

321-5264

DECAL

- park lock

1шт.

12

A181390

DECAL

- right front

1шт.

12

A181389

DECAL

- left front

1шт.

13

321-4621

DECAL

- hood tilt adjust

2шт.

14

321-4622

DECAL

- instructions, hood unlatch

1шт.

15

A181397

DECAL

- 2394 (Right fender panel)

1шт.

15

A181398

DECAL

- 2394 (Left fender panel)(Right shown)

1шт.

17

A167977

DECAL

- console panel (12 speed)

1шт.

19

321-6446

DECAL

- cab roof

1шт.

21

D123347

WARNING SIGN

EMBLEM - slow moving vehicle

1шт.

22

470-1256

SCREW,Slotted Pan Hd, 1/4"-20 x 3/8"

- machine, pan head slotted, 1/4 NC x 3/8 inch

2шт.

24

A177790

DECAL

- fuse location, Serial Range: -9944363

1шт.

25

A167980

DECAL

- console panel (24 speed)

1шт.

26

A181300

DECAL

- fuse location, Start Serial: 99443643

1шт.

A46520

DECAL

KIT - decals, French language, Includes: Ref. 3 - 14 and decals below

1шт.

Kit also includes items listed on Figure 9-092.

1шт.

3

321-5793

DECAL

- diesel fuel, French language

1шт.

8

321-6646

DECAL

- starting instructions, French language

1шт.

11

321-5789

DECAL - park lock, French language

1шт.

13

321-5624

DECAL - tilt hood adjusting, French language

2шт.

14

321-5625

DECAL

- hood unlatch, French language

1шт.

321-6206

DECAL - steering console, (Not used this application), French language

1шт.

321-5792

DECAL - 12 speed chart, (Not used this application), French language

1шт.

321-5627

DECAL - 12 speed chart, (Not used this application), French language

1шт.

321-5626

DECAL - 8 speed, (Not used this application), French language

1шт.

321-5861

DECAL - fuse location (On firewall), French language

1шт.

321-5735

DECAL

- warning, ROPS, French language

1шт.

24

A176278

DECAL

- fuse location, French language, Serial Range: -9944363

1шт.
