Запчасти Case IH 2394 (9-088) - DECALS, CASE TRACTOR (09) - CHASSIS/ATTACHMENTS

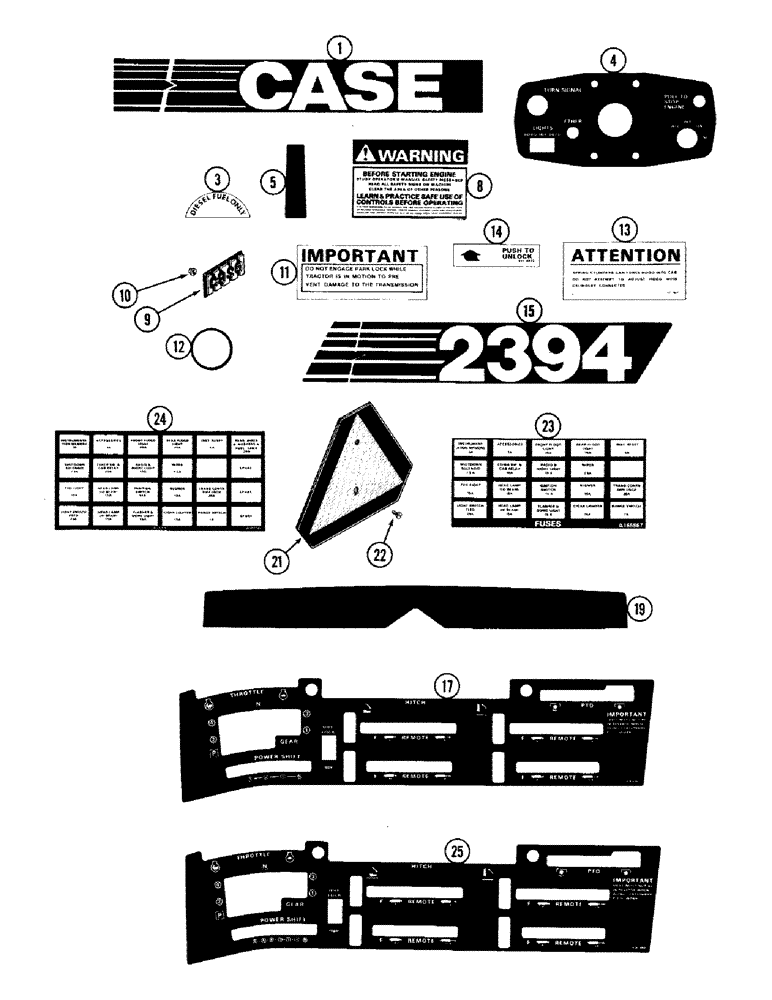

Схема запчастей Case IH 2394 - (9-088) - DECALS, CASE TRACTOR (09) - CHASSIS/ATTACHMENTS
14
11
23
4
8
9
19
12
15
21
24
17
1
22
25
3
5
10
13

Артикул

Название

Примечание

Количество

A67552

DECAL

KIT - decal, tractor (Order components), Includes: Ref. 1 - 14

1шт.

1

A167963

DECAL

- Case (Right fender panel)(Shown)

1шт.

1

A167964

DECAL

- Case (Left fender panel)

1шт.

3

321-4493

DECAL

- diesel fuel (On filler cap), Serial Range: -9937533

1шт.

4

A167975

DECAL

- control panel (On steering column)

1шт.

5

321-4142

DECAL

- sight line

1шт.

8

321-3705

DECAL

- Warning, before starting engine

1шт.

9

321-4739

EMBLEM

- Case, on grille

1шт.

10

131-431

PUSH-ON NUT,Self, Threading, 1/4"

NUT - push on type, 1/4 inch, plated

2шт.

11

321-5264

DECAL

- park lock

1шт.

12

A167962

DISC

PLATE - flasher, insert (If equipped)

1шт.

13

321-4621

DECAL

- hood tilt adjust

2шт.

14

321-4622

DECAL

- instructions, hood unlatch

1шт.

15

A167969

DECAL

- 2394 (Right fender panel)(Shown)

1шт.

15

A167970

DECAL

- 2394 (Left fender panel)

1шт.

17

A167977

DECAL

- console, 12 speed

1шт.

19

321-6446

DECAL

- cab roof

1шт.

21

A163604

DECAL

EMBLEM - Slow moving vehicle (Order D123347)

1шт.

22

470-1256

SCREW,Slotted Pan Hd, 1/4"-20 x 3/8"

- machine, pan head slotted, 1/4 NC x 3/8 inch

2шт.

23

A165867

DECAL

- fuse location (If equipped)(Order A176251)

1шт.

24

A177790

DECAL

- fuse location (If equipped)

1шт.

25

A167980

DECAL

- console, 24 speed

1шт.

A143220

DECAL

KIT - safety decals (See Figure 9-092)(Order components)

1шт.

A46520

DECAL

KIT - decals, French language, Includes: Ref. 3 - 14 and decals below

1шт.

Kit also includes items listed on Figure 9-092.

1шт.

3

321-5793

DECAL

- diesel fuel, French language

1шт.

8

321-6646

DECAL

- starting instructions, French language

1шт.

11

321-5789

DECAL - park lock, French language

1шт.

13

321-5624

DECAL - tilt hood adjusting, French language

2шт.

14

321-5625

DECAL

- hood unlatch, French language

1шт.

321-6206

DECAL - steering console, (Not used this application), French language

1шт.

321-5792

DECAL - 12 speed chart, (Not used this application), French language

1шт.

321-5627

DECAL - 12 speed chart, (Not used this application), French language

1шт.

321-5626

DECAL - 8 speed, (Not used this application), French language

1шт.

321-5861

DECAL - fuse location (On firewall), French language

1шт.

A176278

DECAL

- fuse location (Inside fuse panel cover), French language

1шт.

Выбрано товаров: 36
