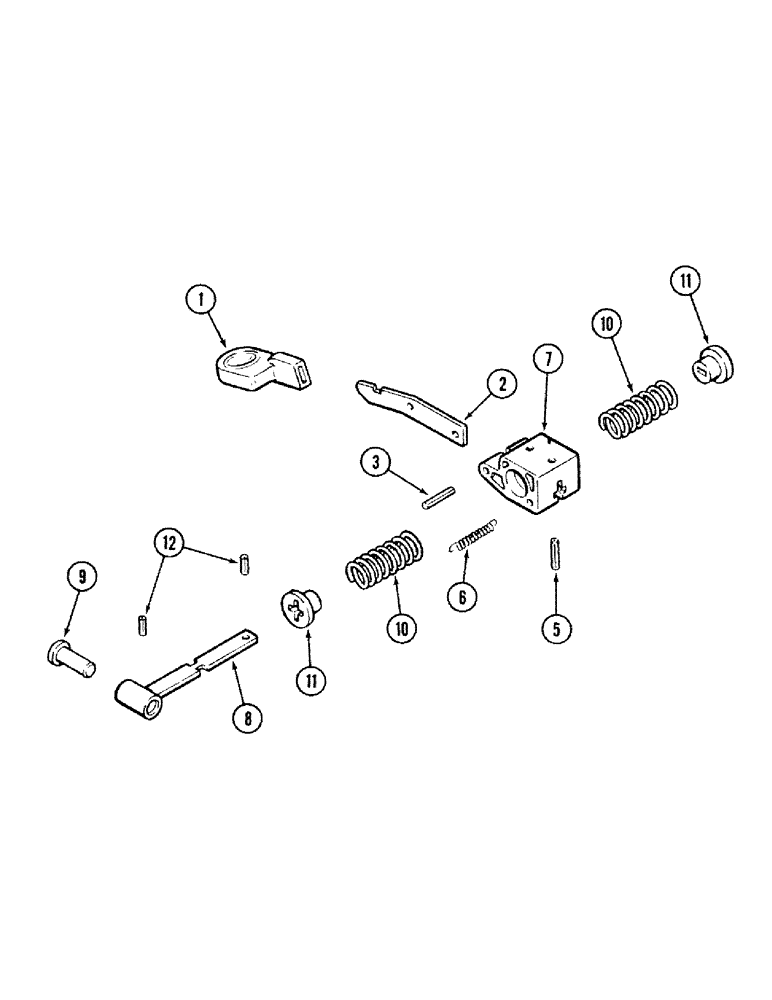

Запчасти Case IH 2394 (9-084) - CLOTH SEAT, AIR SUSPENSION, BEFORE AND AFTER ISOLATOR (09) - CHASSIS/ATTACHMENTS

1990645C1

LATCH

ASSEMBLY - isolator, fore and aft, Includes: Ref. 1 - 12 and kit

1шт.

1

1981850C1

GRIP

KNOB - isolator control, fore and aft

1шт.

Part of Air Suspension Knob Kit, P/N 1999692C1

1шт.

2

1343884C1

LATCH

- isolator

1шт.

3

138-141

LOCK PIN,1/4" x 1 7/8", Slotted

PIN, 1/4" x 1 7/8", Slotted

1шт.

5

138-39

LOCK PIN,3/32" x 5/8", Slotted

PIN, 3/32" x 5/8", Slotted

1шт.

6

1981863C1

SPRING

- extension

1шт.

7

1981839C1

CONTROL BLOCK

BLOCK - isolator (Order 1990645C1)

1шт.

8

1981838C1

SPRING, LEAF

BAR - spring (Order 1990645C1)

1шт.

9

1981846C1

CYLINDER END CAP

BUSHING - spring bar

1шт.

10

1981840C1

SPRING

- compression (Order 1990645C1)

2шт.

11

1981841C1

BUSHING

- spring (Order 1990645C1)

2шт.

12

138-134

LOCK PIN,1/4" x 1", Slotted

PIN, 1/4" x 1", Slotted

2шт.

1999692C1

LEVER ASSY & KNOB

KIT - knob, air suspension, Includes: Ref. 1 on this figure and Figures 9-78 and 9-82

1шт.
