Запчасти Case IH 2394 (9-078) - CLOTH SEAT, AIR SUSPENSION, SWIVEL AND SLIDES (09) - CHASSIS/ATTACHMENTS

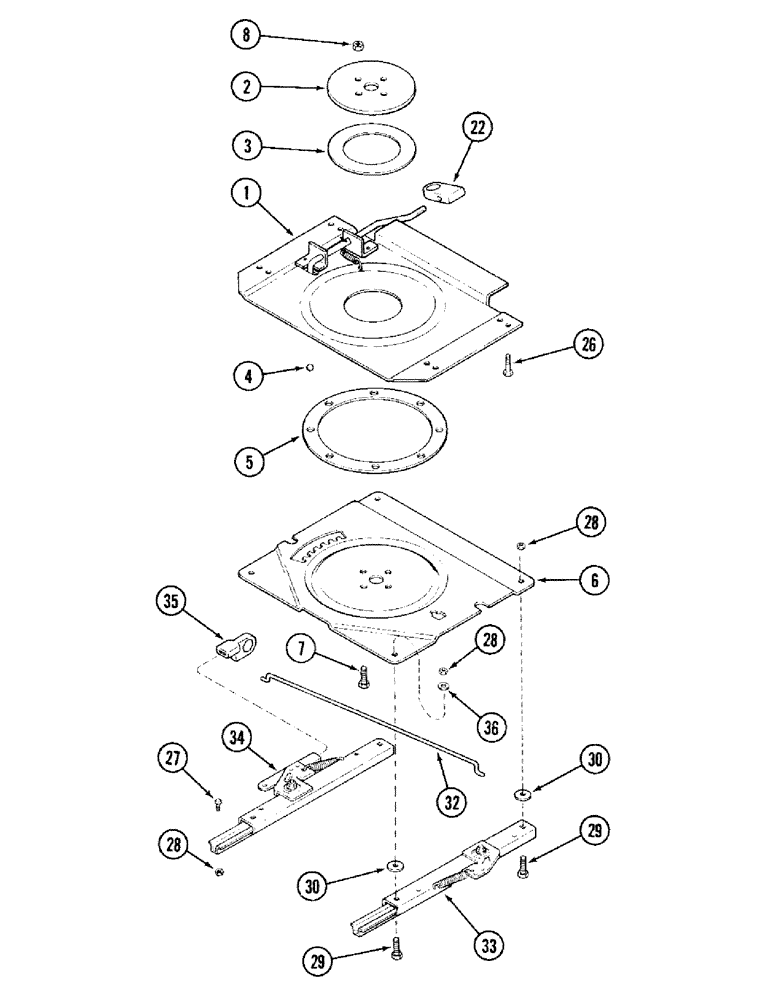

Схема запчастей Case IH 2394 - (9-078) - CLOTH SEAT, AIR SUSPENSION, SWIVEL AND SLIDES (09) - CHASSIS/ATTACHMENTS
7
26
35
1
22
8
28
6
3
30
34
28
33
27
29
5
30
32
4
2
36
28
29

Артикул

Название

Примечание

Количество

1340261C2

SEAT

ASSEMBLY - air suspension, Includes: Ref. 1 - 36 and kits

1шт.

1344003C3

SEAT SUPPORT

SWIVEL ASSEMBLY - seat, Includes: Ref. 1 - 35

1шт.

1

1999896C1

SEAT SUPPORT

PLATE ASSEMBLY - swivel, upper

1шт.

2

1343859C1

RETAINER

- swivel

1шт.

3

1343860C1

PLATE

PLATE - swivel bearing

1шт.

4

211-214

BALL,1/2" Dia

- 1/2 inch diameter, chrome alloy steel

8шт.

5

A49555

LARGE PLATE

RETAINER - ball

1шт.

6

1343858C1

LARGE PLATE

PLATE - swivel, lower

1шт.

7

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch, Includes: Ref. 8

4шт.

8

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

4шт.

Part of Seat Knob Kit, P/N 1999691C1

1шт.

22

NSS

NOT SOLD SEPARAT

KNOB - swivel

1шт.

26

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16 NC x 1-1/2 inch

4шт.

27

117-101

BOLT

BOLT - square head, 5/16 NC x 3/4 inch, Grade 2

4шт.

28

230-4225

LOCK NUT,5/16"-18, GA

NUT - hex, self-locking, 5/16 inch NC

8шт.

29

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

4шт.

30

195-81027

WASHER,0.38" ID x 1.12" OD x 0.07" Thk

- flat, 3/8 x 1-1/8 x 1/16 inch

4шт.

1344248C1

SLIDE

ASSEMBLY - seat, Includes: Ref. 32 - 35

1шт.

32

NSS

NOT SOLD SEPARAT

WIRE - slide

1шт.

33

NSS

NOT SOLD SEPARAT

SLIDE ASSEMBLY - sear, right

1шт.

34

NSS

NOT SOLD SEPARAT

SLIDE ASSEMBLY - seat, left

1шт.

35

NSS

NOT SOLD SEPARAT

KNOB - fore and aft

1шт.

Part of Air Suspension Knob Kit, P/N 1999692C1

1шт.

36

195-81005

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

- flat, 3/8 x 7/8 x 5/64 inch

4шт.

1999691C1

PACKAGE,SERVICE

KIT - seat knob, Includes: Ref. 8 on this figure and Figure 9-076

1шт.

1999692C1

LEVER ASSY & KNOB

KIT - air suspension knob, Includes: Ref. 35 on this figure and Figures 9-082 and 9-084

1шт.

Выбрано товаров: 26
