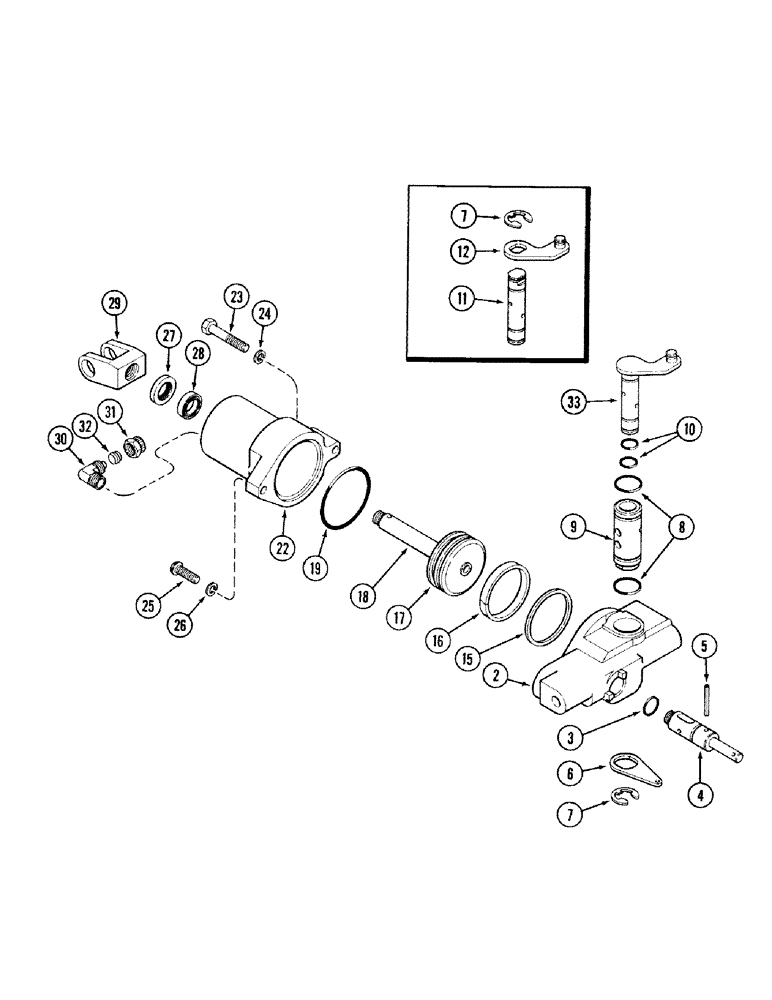

Запчасти Case IH 2394 (9-072) - CLOTH SEAT, AIR/OIL SUSPENSION, CYLINDER ASSEMBLY, P.I.N. 9938101 AND AFTER (09) - CHASSIS/ATTACHMENTS

A49828

CYLINDER

ASSEMBLY - module, Includes: Ref. 2 - 33, o-ring, and kit

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING - cylinder

1шт.

3

238-6113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

1шт.

Part of O-ring and Seal Kit, P/N 1977388C1

1шт.

4

A49782

SPOOL

- damper

1шт.

5

NSS

NOT SOLD SEPARAT

PIN - roll

1шт.

6

A49780

LEVER

- push valve

1шт.

7

100-3362

SNAP RING,#62, .480" Dia, E-Type

Ring, Retaining, #62, .480" Dia, E-Type

2шт.

8

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

2шт.

Part of O-ring and Seal Kit, P/N 1977388C1

1шт.

9

NSS

NOT SOLD SEPARAT

VALVE - push

1шт.

10

238-5111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

2шт.

Part of O-ring and Seal Kit, P/N 1977388C1

1шт.

11

A49781

SPOOL

- push valve (Order 1977961C1)

1шт.

12

A49783

LEVER

- push valve spool (Order 1977961C1)

1шт.

15

A49687

RING

SEAL - piston ring

1шт.

Part of O-ring and Seal Kit, P/N 1977388C1

1шт.

16

A49685

RING

- piston wear

1шт.

Part of O-ring and Seal Kit, P/N 1977388C1

1шт.

17

238-5137

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

1шт.

Part of O-ring and Seal Kit, P/N 1977388C1

1шт.

18

NSS

NOT SOLD SEPARAT

PISTON - cylinder

1шт.

19

238-5142

O-RING,0.103" Thk x 2.362" ID, -142, Cl 5, 75 Duro

1шт.

Part of O-ring and Seal Kit, P/N 1977388C1

1шт.

22

NSS

NOT SOLD SEPARAT

HOUSING - cylinder barrel

1шт.

23

NSS

NOT SOLD SEPARAT

BOLT - hex, retaining

1шт.

24

NSS

NOT SOLD SEPARAT

WASHER - lock

1шт.

25

NSS

NOT SOLD SEPARAT

BOLT - special, retaining

1шт.

26

NSS

NOT SOLD SEPARAT

WASHER - lock

1шт.

27

A49684

WIPER SEAL

WIPER - piston rod

1шт.

Part of O-ring and Seal Kit, P/N 1977388C1

1шт.

28

A49686

SEAL

- piston rod

1шт.

Part of O-ring and Seal Kit, P/N 1977388C1

1шт.

29

NSS

NOT SOLD SEPARAT

CLIVES ASSEMBLY - cylinder

1шт.

30

217-20

ELBOW,90 Degree, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

brass 90º, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

1шт.

31

A49784

CONNECTOR, ELEC

CONNECTOR - special nut, Includes: Ref. 32

1шт.

32

NSS

NOT SOLD SEPARAT

SLEEVE - elbow

1шт.

33

1977961C1

LEVER ASSY.

LEVER ASSEMBLY - spool

1шт.

1977388C1

GASKET KIT

KIT - O-ring and seal, Includes: Ref. 3, 8, 10, 15, 16, 17, 19, 27, 28

1шт.

237-6005

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, Not shown

1шт.
