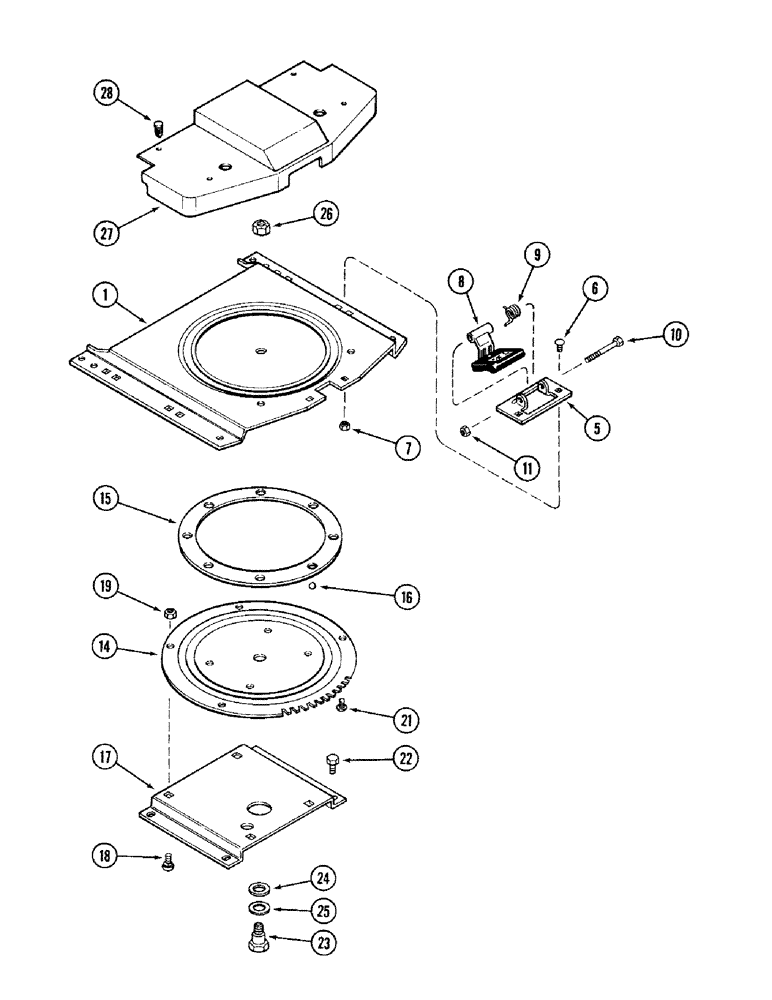

Запчасти Case IH 2394 (9-068) - CLOTH SEAT, AIR/OIL SUSPENSION, P.I.N. 9938101 AND AFTER (09) - CHASSIS/ATTACHMENTS

A181028

SEAT

ASSEMBLY - air/oil suspension (Order seat 1340261C2 and channel 1975275C1)(See Figure 9-74), Includes: Ref. 1 - 26 and isolator assembly

1шт.

A49818

HOUSING

ISOLATOR ASSEMBLY - seat, Includes: Ref. 1 - 26 and swivel assembly

1шт.

A49822

PLATE

SWIVEL ASSEMBLY - seat, Includes: Ref. 1 - 26

1шт.

1

NSS

NOT SOLD SEPARAT

PLATE - top, swivel

1шт.

5

A49830

SUPPORT

BRACKET - latch, swivel

1шт.

6

111-107

CARRIAGE BOLT,Short NK, 1/4"-20 x 1/2", G2

BOLT - round head square neck, 1/4 NC x 1/2 inch

2шт.

7

230-4214

LOCK NUT,1/4"-20, GA

NUT - hex, self-locking, 1/4 inch NC

2шт.

8

A49831

LATCH

- swivel

1шт.

9

A49554

SPRING

- latch

1шт.

10

413-440

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

1шт.

11

230-4214

LOCK NUT,1/4"-20, GA

NUT - hex, self-locking, 1/4 inch NC

1шт.

14

A49556

PLATE

- latch

1шт.

15

A49555

LARGE PLATE

RETAINER - ball

1шт.

16

211-214

BALL,1/2" Dia

- 1/2 inch diameter, chrome alloy steel

8шт.

17

A49557

PLATE

- mounting, swivel

1шт.

18

411-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 2

BOLT - round head square neck, 3/8 NC x 3/4 inch

4шт.

19

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

4шт.

21

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

- machine, pan head Phillips, 1/4 NC x 1/2 inch

4шт.

22

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

2шт.

23

A49558

BOLT

- shoulder

1шт.

24

A49559

WASHER

- nylon, shoulder bolt

1шт.

25

F15105

WASHER

- thrust

1шт.

26

230-4218

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2 inch NC

1шт.

27

A180423

SHROUD

- swivel

1шт.

28

A49622

CLIP

- retaining

4шт.
