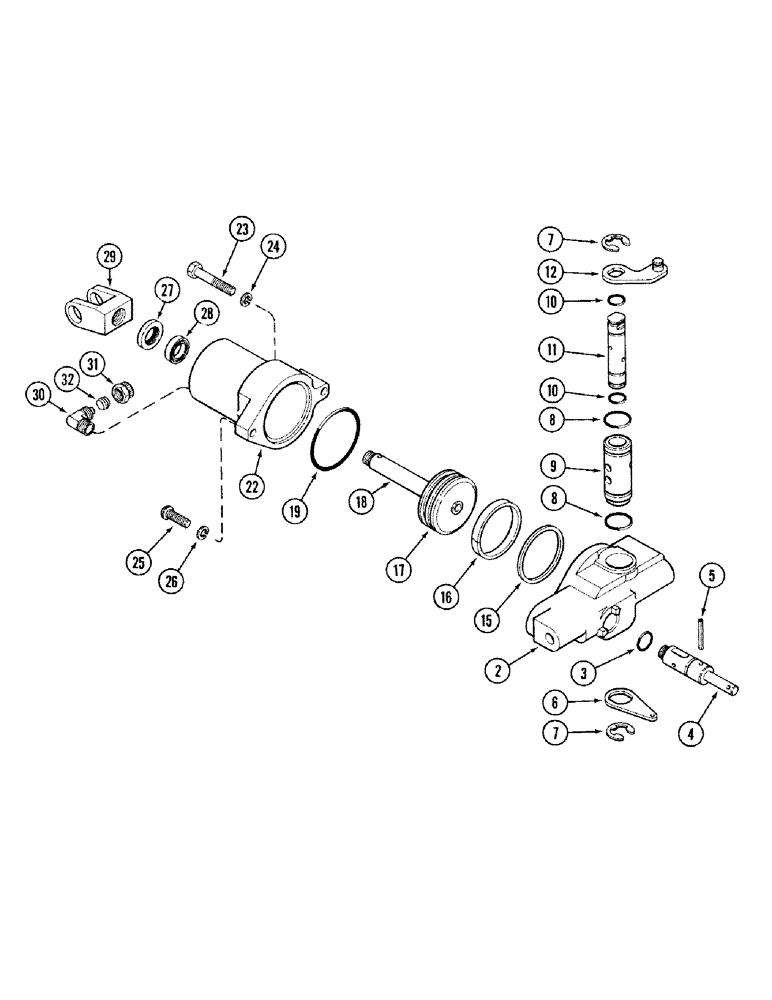

Запчасти Case IH 2394 (9-062) - CLOTH SEAT, AIR/OIL SUSPENSION, CYLINDER ASSEMBLY, PRIOR TO P.I.N. 9938101 (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
A49610
CYLINDER
ASSEMBLY - module (Order A49828)(See Figure 9-72), Includes: Ref. 2 - 32
1шт.
2
NSS
NOT SOLD SEPARAT
HOUSING - cylinder
1шт.
3
238-6113
O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro
1шт.
4
A49782
SPOOL
- damper
1шт.
5
NSS
NOT SOLD SEPARAT
PIN - roll
1шт.
6
A49780
LEVER
- push valve
1шт.
7
100-3362
SNAP RING,#62, .480" Dia, E-Type
Ring, Retaining, #62, .480" Dia, E-Type
2шт.
8
238-5210
O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro
2шт.
9
NSS
NOT SOLD SEPARAT
VALVE - push
1шт.
10
238-5111
O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro
2шт.
11
A49781
SPOOL
- push valve (Order 1977961C1)
1шт.
12
A49783
LEVER
- push valve spool (Order 1977961C1)
1шт.
15
A49687
RING
SEAL - piston ring
1шт.
16
A49685
RING
- piston wear
1шт.
17
238-5137
O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro
1шт.
18
NSS
NOT SOLD SEPARAT
PISTON - cylinder
1шт.
19
238-5142
O-RING,0.103" Thk x 2.362" ID, -142, Cl 5, 75 Duro
1шт.
22
NSS
NOT SOLD SEPARAT
HOUSING - cylinder barrel
1шт.
23
NSS
NOT SOLD SEPARAT
BOLT - hex, retaining
1шт.
24
NSS
NOT SOLD SEPARAT
WASHER - lock
1шт.
25
NSS
NOT SOLD SEPARAT
BOLT - special
1шт.
26
NSS
NOT SOLD SEPARAT
WASHER - lock
1шт.
27
A49684
WIPER SEAL
WIPER - piston rod
1шт.
28
A49686
SEAL
- piston rod
1шт.
29
NSS
NOT SOLD SEPARAT
CLEVIS ASSEMBLY - cylinder
1шт.
30
217-20
ELBOW,90 Degree, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male
brass 90º, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male
1шт.
31
A49784
CONNECTOR, ELEC
CONNECTOR - special nut, Includes: Ref. 32
1шт.
32
NSS
NOT SOLD SEPARAT
SLEEVE - elbow
1шт.
Выбрано товаров: 28
