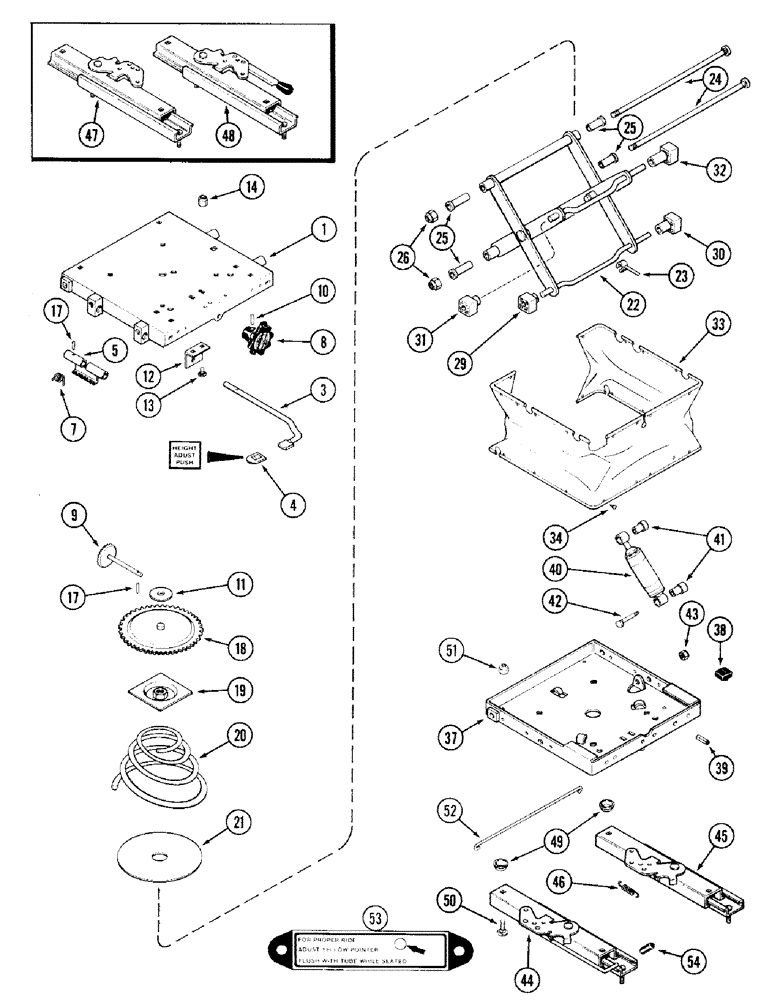

Запчасти Case IH 2394 (9-052) - CLOTH SEAT, WITH ISOLATOR ATTACHMENT (09) - CHASSIS/ATTACHMENTS

A167906

SEAT

AND SUSPENSION ASSEMBLY - operator (Order 1989979C1), Includes: Ref. 1 - 54

1шт.

A177452

SEAT

AND SUSPENSION ASSEMBLY - operator (Order 1989979C1), Includes: Ref. 1 - 54

1шт.

1

A47761

PLATE

HOUSING - upper

1шт.

3

A47764

LEVER

- height adjusting

1шт.

4

A47767

CAP

- lever

1шт.

5

A47381

LATCH

- height adjusting

1шт.

7

A47382

SPRING

- latch return

1шт.

8

A47763

KNOB

ASSEMBLY - includes decals (Order 118578C1)

1шт.

9

A45513

GEAR

- weight adjusting

1шт.

10

138-73

LOCK PIN,5/32" x 3/4", Slotted

PIN, 5/32" x 3/4", Slotted

1шт.

11

D82834

WASHER

- thrust

1шт.

12

A45531

BRACKET

- shaft

1шт.

13

111-107

CARRIAGE BOLT,Short NK, 1/4"-20 x 1/2", G2

BOLT - round head square neck, 1/4 NC x 1/2 inch

2шт.

14

231-5344

FLANGE NUT,Flg, 1/4"-20

NUT, LOCK, Flg, 1/4"-20

2шт.

17

38-11016

LOCK PIN,5/32" x 1", Slotted

Pin, 5/32" x 1", Slotted

2шт.

18

A45505

GEAR

- weight adjusting

1шт.

19

A45504

SPRING WASHER

- spring

1шт.

20

A45497

SPRING

- suspension, weight

1шт.

21

A45530

PAD

- spring

1шт.

22

A47759

ARM

ASSEMBLY - suspension

1шт.

23

A49160

INDICATOR

- ride height

1шт.

24

N6871

SHAFT

- bearing (Order 112884A1)

2шт.

25

A47760

BUSHING

- shaft

4шт.

26

230-4218

LOCK NUT,1/2"-13, GA

NUT - hex, lock, 1/2 inch NC, plated

2шт.

29

A45512

BLOCK

- slider, 1-3/16 inch

1шт.

30

A45516

BLOCK

- slider, 2-3/16 inch

1шт.

31

A45515

BLOCK

- slider, 1-9/16 inch

1шт.

32

A45517

BLOCK

- slider, 2-9/16 inch

1шт.

33

A47359

BOOT

COVER - suspension unit (Order S301394)

1шт.

34

151-705

CLIP,Rd 1/2" Hd, 1/4" Hole

- plastic round head, 1/4 hole size x 7/8 inch head

21шт.

37

A48181

BASE

- lower

1шт.

38

A45054

BUMPER,Neoprene

- seat

2шт.

39

138-134

LOCK PIN,1/4" x 1", Slotted

PIN, 1/4" x 1", Slotted

1шт.

40

A45503

SHOCK ABSORBER

ABSORBER - shock, seat

1шт.

41

A45501

BUSHING,0.504" ID x 0.87" OD x 1.417"

- shock absorber

2шт.

42

A45056

STEP BOLT

BOLT - shoulder

1шт.

43

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

1шт.

44

A49653

SLIDE

ASSEMBLY - seat mounting, right hand (Used on seat assembly A177452), Includes: Ref. 46

1шт.

45

A45523

SLIDE

ASSEMBLY - seat mounting, left hand (Used on seat assembly A177452), Includes: Ref. 46

1шт.

46

L35503

SPRING

- return, slide

1шт.

47

A45523

SLIDE

ASSEMBLY - seat mounting, left hand (Used on seat assembly A167906)

1шт.

48

A45522

SLIDE

ASSEMBLY - seat mounting, left hand (Used on seat assembly A167906)

1шт.

49

A45111

SPACER

- slide cup

4шт.

50

111-220

CARRIAGE BOLT,Short NK, 5/16"-18 x 7/8", G2

BOLT - round head square neck, 5/16 NC x 7/8 inch

2шт.

50

A47171

CARRIAGE BOLT

BOLT - lower base

2шт.

51

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

4шт.

52

A48182

ROD

- connecting, latch

1шт.

53

A47778

DECAL

- adjusting, ride

1шт.

54

A45481

HANDLE

GRIP - lever, plastic

1шт.
