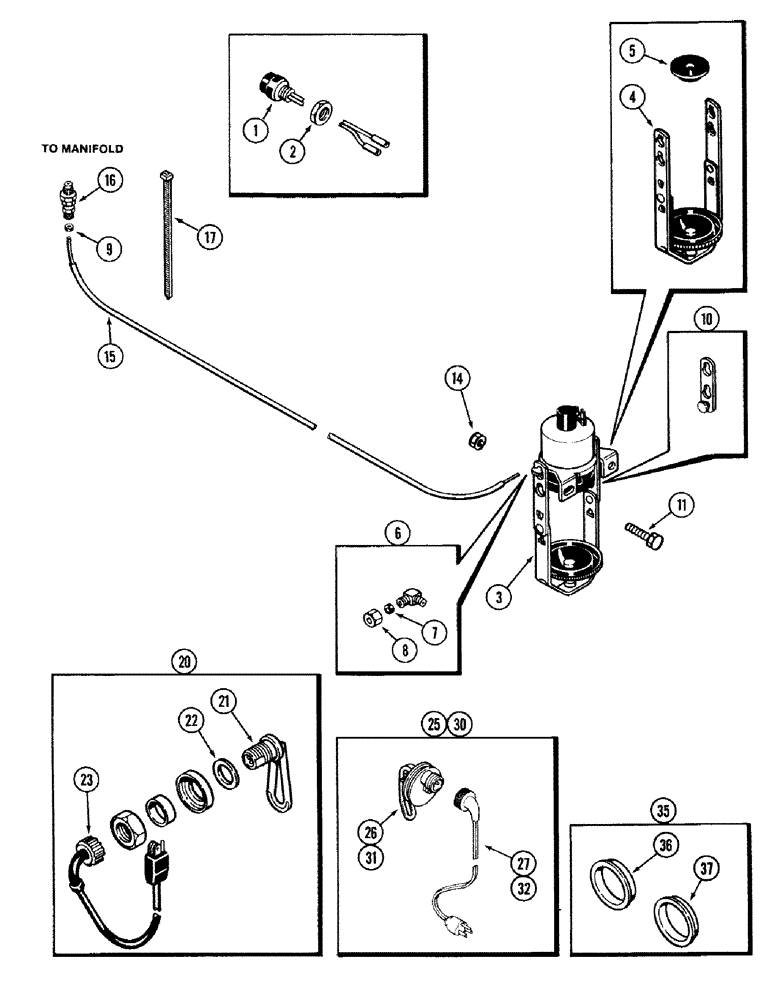

Запчасти Case IH 2394 (2-14) - COLD START ASSISTANCE, 504BDT DIESEL ENGINE (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1
A135520
SWITCH
- Ether Start
1шт.
2
425-1110
NUT,5/8"-18, G5
1шт.
3
A143381
SOLENOID
ASSEMBLY - ether start, Includes: Ref. 4 - 8
1шт.
4
D77648
BAIL
HANGER - can, ether
1шт.
5
395686R1
GASKET
- can
1шт.
6
222-615
ELBOW,90 Degree, 5/16"-24 x 1/8" NPT, Comp
1/8 tube OD 90º, 5/16"-24 x 1/8" NPT, Comp
1шт.
7
222-650
SLEEVE,1/8" Tube, Comp
Tapered 1/8" Tube, Comp
1шт.
8
222-660
FLANGE NUT,5/16"-24, 45 Degree Fl, Comp
1/8" tube OD 5/16"-24, 45º Fl, Comp
1шт.
9
222-650
SLEEVE,1/8" Tube, Comp
Tapered 1/8" Tube, Comp
1шт.
10
R30812
LINK
- extension, hanger
2шт.
11
413-516
BOLT,Hex, 5/16" - 18 x 1", Gr 5
- hex, 5/16 NC x 1 inch
2шт.
14
425-105
NUT,5/16"-18, G5
2шт.
15
A149932
TUBE
ether injection - 2006 mm (79 in)
1шт.
16
A145070
NOZZLE INJECTION
INJECTOR ASSEMBLY - nozzle
1шт.
17
L18337
CABLE TIE,9.95"-12.1" lg
STRAP - tie, 15 inch, nylon
4шт.
20
A155436
RESISTOR
HEATER KIT - cylinder block (Order Ref 25 or 30), Includes: Ref. 21 - 23
1шт.
Item #20 A155436 subs to 3 diff. part #'s depending on the use. A182017 & A182020 fit in a frost plug hole approx. 1-7/8" dia. A182059 has a 1" thread.
1шт.
21
NSS
NOT SOLD SEPARAT
ELEMENT - heater
1шт.
22
A45114
GASKET
- element seal
1шт.
23
A44813
CABLE EXTENSION
CORD ASSEMBLY - heater
1шт.
25
A182017
HEATER ASSY.
HEATER KIT - cylinder block (Replaces A155436)(U.S.A. Only), Includes: Ref. 26 and 27
1шт.
26
A182015
COIL
ELEMENT - heater
1шт.
27
A44813
CABLE EXTENSION
CORD ASSEMBLY - heater
1шт.
30
A182020
HEATER ASSY.
HEATER KIT - cylinder block (Canada Only), Includes: Ref. 31 and 32
1шт.
31
A182018
MAKING-UP
ELEMENT - heater
1шт.
32
A44813
CABLE EXTENSION
CORD ASSEMBLY - heater
1шт.
35
A44006
SLEEVE
KIT - heater installation (Order Components), Includes: Ref. 36 and 37
1шт.
36
A44007
SLEEVE
- heater, 2-1/16 inch diameter hole
1шт.
37
A44008
SLEEVE
- heater, 2-1/8 inch diameter hole
1шт.
Выбрано товаров: 29
