Запчасти Case IH 2394 (9-044) - VINYL SEAT, WITHOUT SWIVEL - A177457 (09) - CHASSIS/ATTACHMENTS

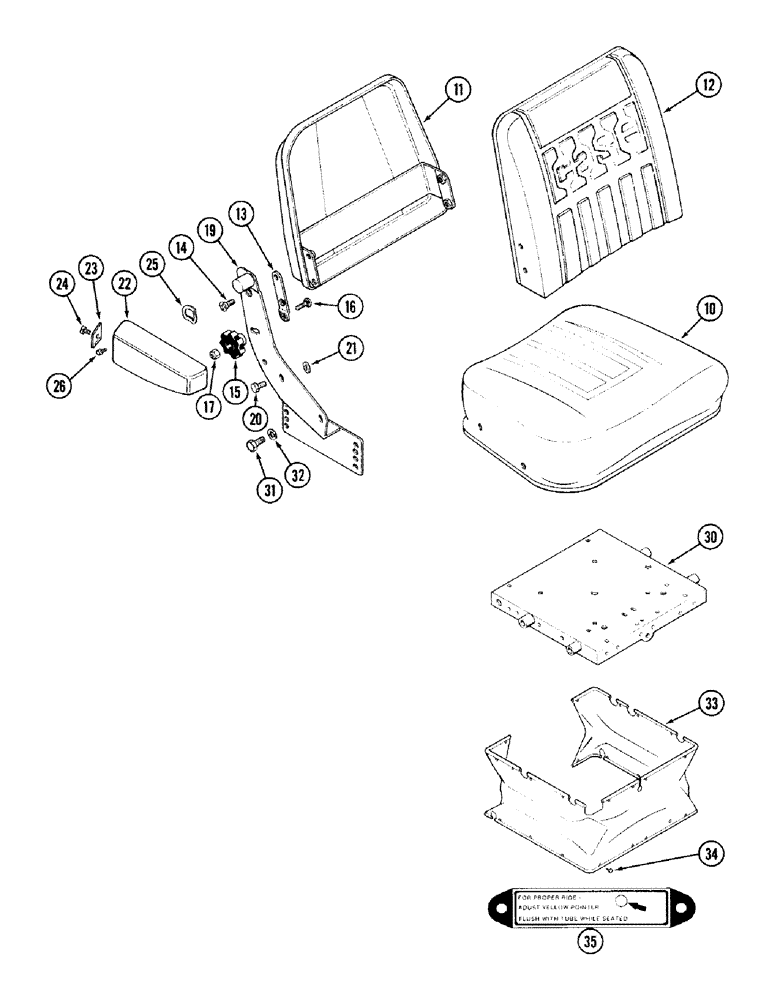

Схема запчастей Case IH 2394 - (9-044) - VINYL SEAT, WITHOUT SWIVEL - A177457 (09) - CHASSIS/ATTACHMENTS
11
10
25
12
30
13
26
15
34
14
16
17
21
23
31
32
33
20
22
35
19
24

Артикул

Название

Примечание

Количество

A177457

SEAT

AND SUSPENSION ASSEMBLY - vinyl (Without swivel), Includes: Ref. 10 - 14 and cushion kit

1шт.

1987124C1

CUSHION, SEAT

CUSHION KIT - seat, Includes: Ref. 10 - 14

1шт.

10

NSS

NOT SOLD SEPARAT

CUSHION ASSEMBLY - seat

1шт.

11

NSS

NOT SOLD SEPARAT

PAD - backrest

1шт.

12

NSS

NOT SOLD SEPARAT

CUSHION ASSEMBLY - backrest

1шт.

13

A48343

LINK

- tilt, backrest

2шт.

14

187-1300

SELF-TAP SCREW,Hex, 3/8" - 18 x 1"

SCREW - self-tapping, flat Phillips, 3/8 NC x 1 inch

2шт.

15

A45487

BUTTON

KNOB - tilt, backrest (Order 130669A1)

2шт.

16

A45527

CARRIAGE BOLT

- retaining, link

2шт.

17

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

2шт.

19

A49656

SUPPORT

BRACKET - right side (Shown)

1шт.

19

NLS

NO LONGER SERVICED

BRACKET - left side

1шт.

20

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

4шт.

21

A45116

WASHER

SPACER - cushion

4шт.

1987125C1

ARMREST ASSY.

ARMREST KIT - seat, Includes: Ref. 22 - 26

1шт.

22

A45489

ARMREST

- seat, right (Shown)

1шт.

22

A45488

ARMREST

- seat, left

1шт.

23

A45584

COVER

PLATE - cover, right armrest (Shown)

1шт.

23

A45583

PLATE

- cover, left armrest

1шт.

24

263-50510

SELF-TAP SCREW,Slotted Pan Hd, #10 x 5/8"

SCREW - self-tapping, pan head slotted, No. 10-16 x 5/8 inch

2шт.

25

A47352

WASHER

- wave, 1-1/8 inch ID

2шт.

26

61-3256

HEX SOC SCREW,1/4"-20 x 3/8"

SCREW, , Armrest stop Hex Soc Hd, 1/4"-20 x 3/8"

2шт.

30

A46726

HOUSING

PLATE - upper housing

1шт.

31

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch, plated

4шт.

32

193-92

LOCK WASHER,Int Tooth, 5/16"

WASHER - internal lock, 5/16 inch

4шт.

33

A45576

BOOT

COVER - suspension

1шт.

34

151-705

CLIP,Rd 1/2" Hd, 1/4" Hole

- plastic round head, 1/4 hole size x 7/8 inch head dia

24шт.

35

A47778

DECAL

- instruction

1шт.

Выбрано товаров: 28
