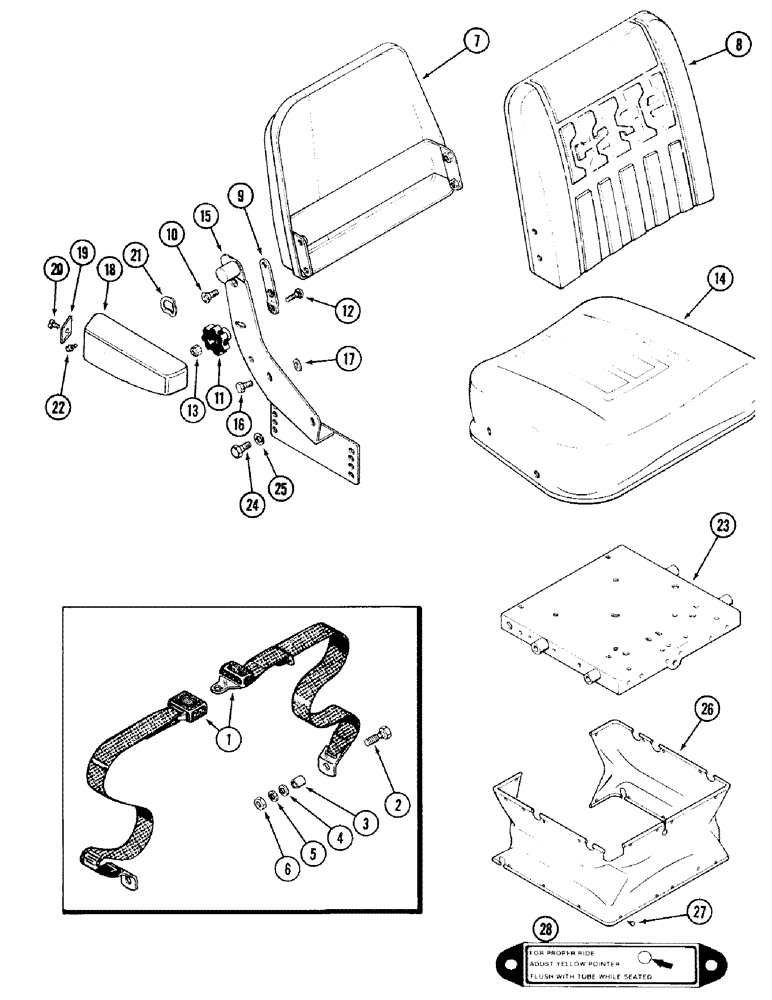

Запчасти Case IH 2394 (9-040) - SEAT BELT, VINYL SEAT (09) - CHASSIS/ATTACHMENTS

1

A160404

SAFETY BELT

BELT - seat safety

1шт.

2

A61946

STEP BOLT

BOLT - seat belt shoulder

2шт.

3

A60907

BUSHING

SPACER - seat belt anchor

2шт.

4

495-11047

WASHER,7/16", SAE

(15/32 x 59/64 x 1/16") 7/16", SAE

2шт.

5

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

6

425-117

NUT,7/16"-20, G5

- hex, 7/16 inch NF

2шт.

A139547

SEAT

AND SUSPENSION ASSEMBLY - vinyl without swivel (Order A177457), Includes: Ref. 7 -9

1шт.

A45571

CUSHION

BACKREST ASSEMBLY - cushion (Order ZSA6225), without swivel

1шт.

7

NSS

NOT SOLD SEPARAT

PAD - backrest, without swivel

1шт.

8

NSS

NOT SOLD SEPARAT

PAD AND COVER - backrest, without swivel

1шт.

9

A48343

LINK

- tilt, backrest, without swivel

2шт.

10

473-13816

SCREW,FLAT, 3/8" - 16 x 1"

- machine, flat head slotted, 3/8 NC x 1 inch, without swivel

2шт.

11

130669A1

PACKAGE

KNOB - tilt, backrest, without swivel

2шт.

12

A45527

CARRIAGE BOLT

- retaining, link, without swivel

2шт.

13

131-206

NUT,3/8"-16

NUT - heavy hex, self-locking, 3/8 inch NC, without swivel

2шт.

14

A45570

CUSHION

SEAT - cushion (Order 1987124C1), without swivel

1шт.

15

A45579

BRACKET

- right side (Shown), without swivel

1шт.

15

A45580

BRACKET

- left side, without swivel

1шт.

16

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch, without swivel

4шт.

17

A45519

WASHER

- flat, 33/64 x 1-1/8 x 1/16 inch, without swivel

4шт.

18

A45489

ARMREST

- right (Shown), without swivel

1шт.

18

A45488

ARMREST

- left, without swivel

1шт.

19

A45584

COVER

PLATE - cover, right armrest (Shown), without swivel

1шт.

19

A45583

PLATE

- cover, left armrest, without swivel

1шт.

20

273-10510

SELF-TAP SCREW,Slotted Flat Hd, #10 x 5/8"

SCREW - self-tapping, flat slotted, No. 10-16 x 5/8 inch, without swivel

2шт.

21

492-11112

LOCK WASHER,1 1/8"

without swivel 1 1/8"

2шт.

22

178-17

SET SCREW,Hex Soc, #10-24 x 1/2"

SCREW - hex socket head, No. 10 NC x 1/2 inch, without swivel

2шт.

23

A45577

PLATE

- upper housing, without swivel

1шт.

24

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch, without swivel

4шт.

25

493-21052

LOCK WASHER,Int Tooth, 1/2"

WASHER - internal tooth lock, 1/2 inch, without swivel

4шт.

26

A45576

BOOT

COVER - suspension, without swivel

1шт.

27

151-705

CLIP,Rd 1/2" Hd, 1/4" Hole

- plastic round head, 1/4 hole size x 7/8 inch head dia, without swivel

24шт.

28

321-3721

DECAL

- instruction, without swivel

1шт.
