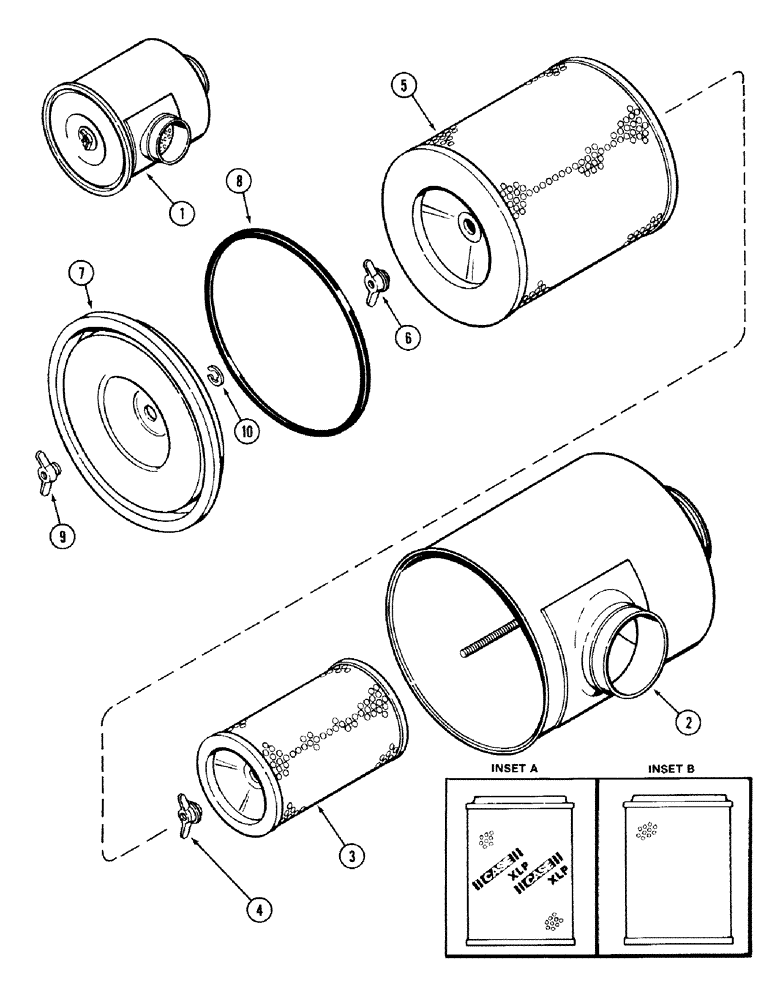

Запчасти Case IH 2394 (2-12) - AIR CLEANER (02) - ENGINE

1

A147020

CLEANER

ASSEMBLY - air, Includes: Ref. 2 - 10

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - air cleaner

1шт.

3

A47146

AIR FILTER

ELEMENT - inner

1шт.

4

D78354

WING NUT

NUT - wing, inner element

1шт.

5

A47145

AIR FILTER

ELEMENT - outer (See Inset A)

1шт.

5

A47145

AIR FILTER

ELEMENT - outer (See Inset B)

1шт.

6

A47143

NUT

- wing, outer element

1шт.

7

A47142

COVER

ASSEMBLY - CLEANER, Includes: Ref. 8 - 10

1шт.

8

A47103

GASKET

- cover

1шт.

9

A47102

WING NUT

- wing, cover

1шт.

10

A27812

CIRCLIP,#87, .668" Dia, E-Type

Ring, Retaining, #87, .668" Dia, E-Type

1шт.
