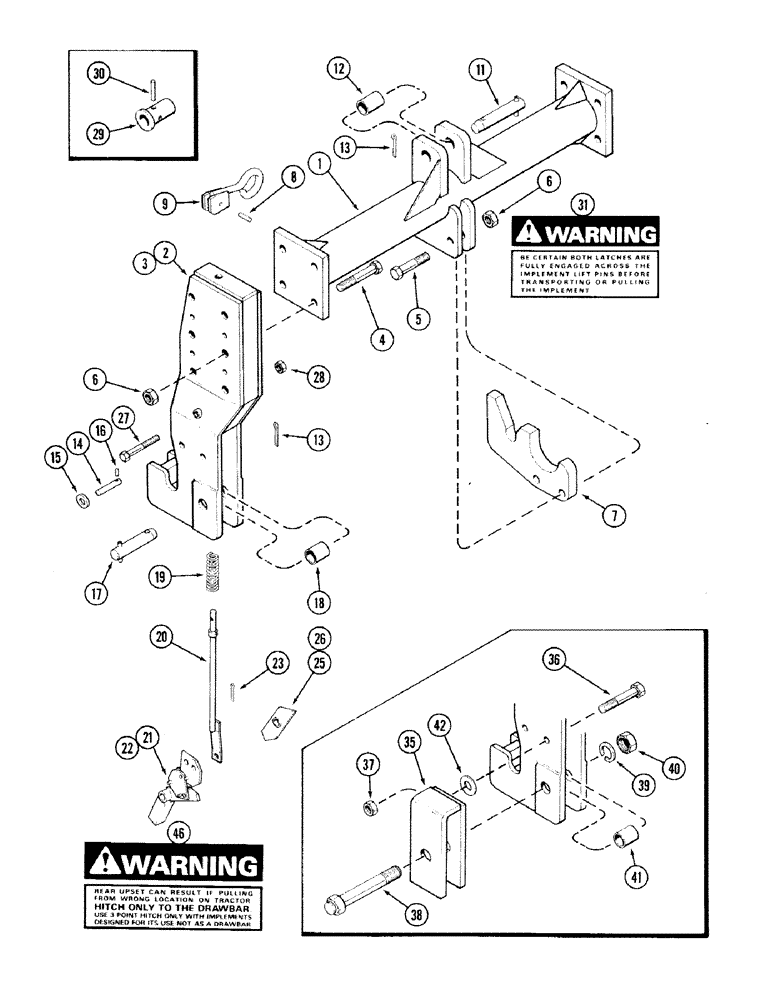

Запчасти Case IH 2394 (9-024) - QUICK HITCH COUPLER P/N A66281, CATEGORY II AND III (09) - CHASSIS/ATTACHMENTS

A66281

NO LONGER SERVICED

COUPLER ATTACHMENT - hitch, convertible (Machinery Item), Includes: Ref. 1 - 28

1шт.

1

NSS

NOT SOLD SEPARAT

HITCH - upper arm tube

1шт.

2

A44595

HITCH ASSY

HITCH - lower arm bracket, left

1шт.

3

A44594

HITCH ASSY

HITCH - lower arm bracket, right

1шт.

4

413-1268

BOLT,Hex, 3/4" - 10 x 4-1/4", Gr 5

- hex, 3/4 NC x 4-1/4 inch

8шт.

5

413-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

- hex, 3/4 NC x 3 inch

2шт.

6

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

10шт.

7

A44600

PLATE

LUG - hitch, upper arm

1шт.

8

138-2067

PIN,3/16" x 1", Coiled

2шт.

9

A44472

HANDLE

- release, hitch

2шт.

11

A45463

PIN

ASSEMBLY - upper hitch

1шт.

12

A44474

SLEEVE

- upper draft arm pin

1шт.

13

T50113

PIN

- clinch, 3/8 x 1-1/2 inch

3шт.

14

A45459

PIN

- trip ratchet lever

2шт.

15

95-11066

WASHER,5/8"

- flat, 21/32 x 1-5/16 x 3/32 inch

2шт.

16

138-2055

PIN,3/16" x 1 1/2", Coiled

2шт.

17

A45462

PIN

- draft arm, lower

2шт.

18

A43542

SLEEVE

- coupler arm

2шт.

19

A44476

VALVE SPRING

SPRING - release rod (Order A45461)a

2шт.

20

A45086

ROD

- tripping device (With release handle turned inward)

2шт.

20

A44598

ROD

- tripping device (With release handle, Serial Range: turned-rear)

2шт.

21

A45019

LEVER

- lock, right

1шт.

22

A45020

LEVER

- lock, left

1шт.

23

32-1220

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

2шт.

25

A44470

LEVER

- lower trip ratchet, right

1шт.

26

A44471

LEVER

- lower trip ratchet, left

1шт.

27

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

- hex, 1/2 NC x 4 inch

2шт.

28

230-4118

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2 inch NC

2шт.

29

T32995

ADAPTER

- hitch coupler (For Category II implements)

2шт.

30

138-188

LOCK PIN,7/16" x 1 1/2", Slotted

Pin, 7/16" x 1 1/2", Slotted

2шт.

31

321-3339

DECAL

- warning, implement lift pins

1шт.

A66283

KIT

- hitch adapter (Order components), Includes: Ref. 35 - 42

1шт.

35

A66284

BRACKET

- adapter

2шт.

36

413-1268

BOLT,Hex, 3/4" - 10 x 4-1/4", Gr 5

- hex, 3/4 NC x 4-1/4 inch, grade 8

2шт.

37

230-41112

LOCK NUT,3/4"-10, GA

NUT - hex, self-locking, 3/4 inch NC

2шт.

38

A66285

BOLT

- adapter attaching

2шт.

39

492-11112

LOCK WASHER,1 1/8"

1 1/8"

2шт.

40

425-1118

NUT,1 1/8"-12, G5

- hex, 1-1/8 inch NF

2шт.

41

A43542

SLEEVE

- coupler arm (Used with A66281 hitch to prevent coupler arm collapse)

2шт.

42

495-21081

WASHER,3/4"

- flat, 13/16 x 2 x 5/32 inch

2шт.

46

321-3845

DECAL

- drawbar and hitch

1шт.
