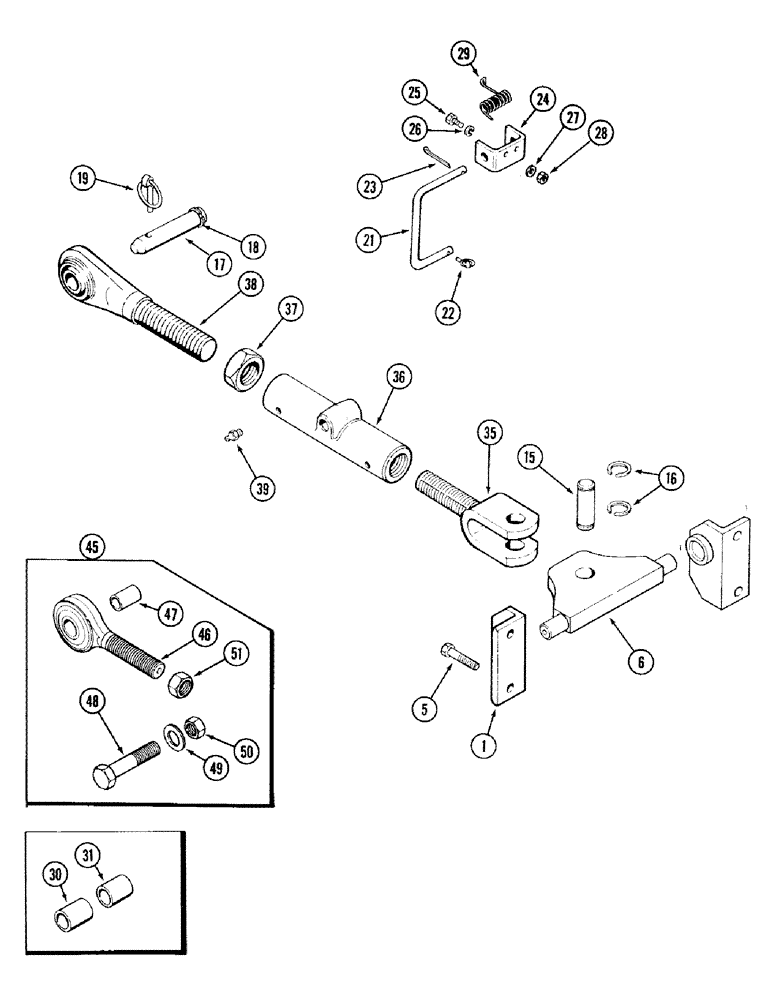

Запчасти Case IH 2394 (9-008) - THREE POINT HITCH, UPPER LIFT LINK (09) - CHASSIS/ATTACHMENTS

1

A160141

BRACKET

ANGLE - upper link bracket, right

1шт.

2

A160140

BRACKET

ANGLE - upper link bracket, left

1шт.

5

426-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

- hex, 5/8 NC x 2-1/2 inch, grade 8

4шт.

6

A66217

PLATE

- upper link bracket

1шт.

15

A160910

PIN

-, Serial Range: link-plate

1шт.

16

A185689

RING, SNAP

RING - retaining (Replaces A28253)

2шт.

17

A143993

PIN,31.6mm OD x 161.54mm L

ASSEMBLY - upper link to implement, Includes: Ref. 18

1шт.

18

17406

RING

- retaining

1шт.

19

A64204

PIN

- klik

1шт.

21

A163822

HOOK

- storage, upper link

1шт.

22

A33497

LINCH PIN,4.76mm OD Pin

PIN - klik

1шт.

23

432-1220

COTTER PIN,3/16" x 1 1/4"

3/16" x 1 1/4"

1шт.

24

A163821

BRACKET

- upper link storage

1шт.

25

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

26

492-11038

LOCK WASHER,3/8"

2шт.

27

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

28

425-106

NUT,3/8"-16, Cl 5

2шт.

29

A177792

SPRING

- upper link hook

1шт.

30

L10462

BUSHING

ADAPTER - upper hitch pin (Category II) 1 x 1-1/4 x 2 inch

1шт.

31

L10463

BUSHING

ADAPTER - lower hitch pin (Category II) 1-1/8 x 1-7/16 x 1-25/32 inch

2шт.

35

A165962

CLEVIS

- upper link, 1-1/2 inch NC

1шт.

35

A161204

CLEVIS

- upper link, 1-1/2 inch NF

1шт.

36

A165965

TURNBUCKLE

- upper link, 1-1/2 inch NC

1шт.

36

A160905

TURNBUCKLE

- upper link, 1-1/2 inch NF

1шт.

37

425-1424

JAM NUT,Jam, 1 1/2"-6, G5

- hex, jam, 1-1/2 inch NC

1шт.

37

425-1524

JAM NUT,Jam, 1 1/2"-12, G5

- hex, jam, 1-1/2 inch NF

1шт.

38

A165966

ROD

- upper link end, 1-1/2 inch NC

1шт.

38

A160907

TURNBUCKLE

ROD - upper link end, 1-1/2 inch NF

1шт.

39

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.

45

1965282C1

DRAG LINK

KIT - short top link (Order components), Includes: Ref. 46 - 51

1шт.

46

1965221C1

TIE-ROD

ROD - upper link end, short

1шт.

47

398406R1

BUSHING,26.29mm ID x 31.37mm OD x 50.8mm L

- upper link rear ball

1шт.

48

25982R1

BOLT,Hex, 1 1/4" - 7 x 5 1/2", Gr 8

- hex, 1-1/4 NC x 5-1/2 inch

2шт.

49

23446R1

WASHER

- flat

2шт.

50

232-41320

LOCK NUT,1 1/4"-7, GC

NUT, LOCK, 1 1/4"-7, GC

2шт.

51

425-1424

JAM NUT,Jam, 1 1/2"-6, G5

- hex, jam, 1-1/2 inch NC

1шт.
