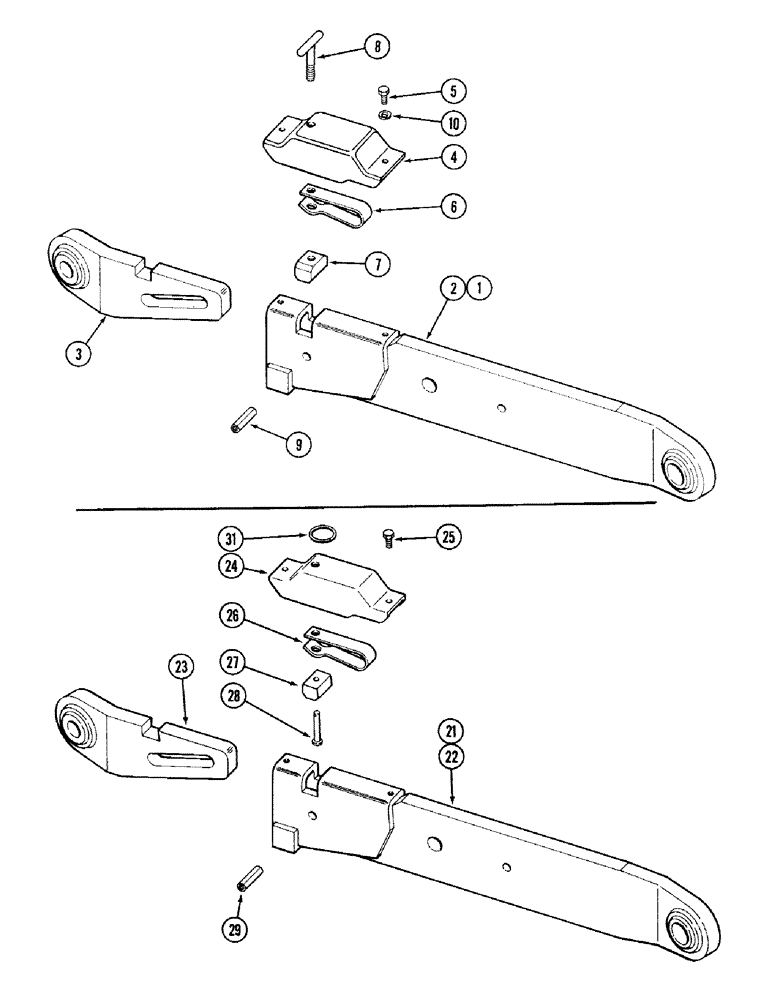

Запчасти Case IH 2394 (9-006) - HITCH DRAFT ARMS, TELESCOPING (09) - CHASSIS/ATTACHMENTS

1

A167262

ARM

ASSEMBLY - hitch draft, right (Order A185270), Includes: Ref. 3 - 10

1шт.

2

A167263

ARM

ASSEMBLY - hitch draft, left (Order A185271), Includes: Ref. 3 - 10

1шт.

3

A52197

ARM

END - draft arm, right (Order A185135, A185136, A185304 and A185305)

1шт.

3

A52198

ARM

END - draft arm, left (Order A185135, A185137, A185304 and A185305)

1шт.

4

A52199

COVER

- draft arm latch

1шт.

5

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

2шт.

6

A48917

SPRING

- latch

1шт.

7

A52200

LATCH

- block

1шт.

8

A48916

HANDLE

- latch (Order A185304, A185305, A185387 and A185388)

1шт.

9

138-2000

PIN,12.7mm OD x 50.8mm L, Coiled

2шт.

10

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

21

A185270

ARM

ASSEMBLY - hitch draft, right , Includes: Ref. 23 - 31

1шт.

22

A185271

ARM

ASSEMBLY - hitch draft, left, Includes: Ref. 23 - 31

1шт.

23

A185136

END ASSY.

END - draft arm, right

1шт.

23

A185137

END ASSY.

END - draft arm, left (37.08/36.83) (I.D. of Ball 1.45")

1шт.

24

A52199

COVER

- draft arm latch

1шт.

25

281-1478

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW - self-tapping, hex washer head, 1/4 NC x 1/2 inch

1шт.

27

A185135

LATCH ASSY.

LATCH - block

1шт.

28

A185304

PIN,9.53mm OD x 54.18mm L

- clevis

1шт.

29

138-2000

PIN,12.7mm OD x 50.8mm L, Coiled

2шт.

31

A185305

RING

- split

1шт.
