Запчасти Case IH 2394 (8-124) - HYDRAULICS, SEAT AIR/OIL SUSPENSION, TRANSMISSION SERIAL NO. 16283224 AND AFTER (08) - HYDRAULICS

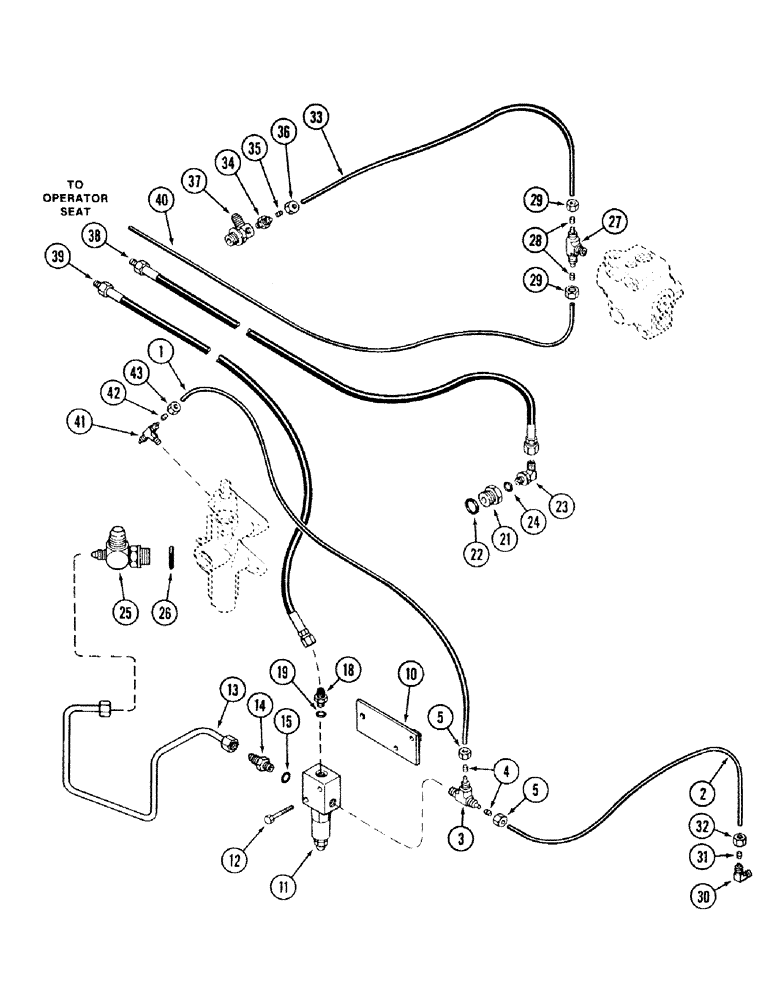

Схема запчастей Case IH 2394 - (8-124) - HYDRAULICS, SEAT AIR/OIL SUSPENSION, TRANSMISSION SERIAL NO. 16283224 AND AFTER (08) - HYDRAULICS
41
37
1
36
32
43
18
39
11
31
42
38
5
25
28
24
26
21
19
34
2
40
13
5
29
3
33
35
27
29
15
30
10
14
23
12
22
4

Артикул

Название

Примечание

Количество

1

A137319

TUBE

- nylon, 3/8 x 15 inch (Order A167912)

1шт.

2

A75811

TUBE

- nylon, 3/8 inch OD x 34 inch (Order A167912)

1шт.

3

222-2761

FITTING

TEE - compression, 3/8 tube X 1/4 inch PT, Includes: Ref. 4 and 5

1шт.

4

222-2611

SLEEVE

- flanged, 3/8 inch OD tube

2шт.

5

222-2601

NUT

NUT - hex, 3/8 tube OD x 17/21-24 inch

2шт.

10

A176814

PLATE

- valve mounting

1шт.

11

REF

INSTRUCTION

VALVE ASSEMBLY - pressure regulator (See Figure 8-126)

1шт.

12

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

2шт.

13

A181994

TUBE

- valve supply

1шт.

14

218-5352

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

ADAPTER - straight, 9/16-18 flare x 7/16-20 inch O-ring boss, Includes: Ref. 15

1шт.

15

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

18

218-5352

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

ADAPTER - straight, 9/16-18 flare x 7/16-20 inch O-ring boss, Includes: Ref. 19

1шт.

19

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

21

A176161

ADAPTER

- straight, special, Includes: Ref. 22

1шт.

22

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

23

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 inch flare x adj O-ring boss, Includes: Ref. 24

1шт.

25

218-5578

TEE,9/19/16"-18, 37 Degree x 1 1/16"-12, O-Ring Run

- special, Includes: Ref. 26

1шт.

26

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

27

222-2676

TEE,17/32"-24 x 1/4" NPT Br

- compression, 3/8 tube OD x 1/4 inch PT, Includes: Ref. 28 and 29

1шт.

28

222-2611

SLEEVE

- flanged, 3/8 inch OD tube

2шт.

29

222-2601

NUT

NUT - hex, 3/8 tube OD x 17/21-24 inch

2шт.

30

222-2646

ELBOW,90 Degree, 17/32"-24 x 1/8" NPT, Comp

- 90 degree, compression, 3/8 tube OD x 1/8 inch PT, Includes: Ref. 31 and 32

1шт.

31

222-2611

SLEEVE

- flanged, 3/8 inch OD tube

1шт.

32

222-2601

NUT

NUT - hex, 3/8 tube OD x 17/21-24 inch

1шт.

33

A75811

TUBE

- nylon, 3/8 inch OD x 34 inch (Order A167912)

1шт.

34

222-2626

FITTING,17/32"-24 x 1/4" NPT, Comp

ADAPTER - compression, 3/8 tube OD x 1/4 inch PT, Includes: Ref. 35 and 36

1шт.

35

222-2611

SLEEVE

- flanged, 3/8 inch OD tube

1шт.

36

222-2601

NUT

NUT - hex, 3/8 tube OD x 17/21-24 inch

1шт.

37

A161145

FITTING

ELBOW - dipstick (In transmission case)

1шт.

38

A176632

HOSE ASSY.

HOSE - return, seat

1шт.

39

A176631

HOSE ASSY.,6.35 mm ID x 63.00 mm, SAE100R1

6.35 mm ID x 63.00 mm, SAE 100R1 - Pressure, Seat

1шт.

40

A49609

HOSE,0.38" ID x 39.00"

- Drain (Order A167912)

1шт.

41

222-2681

TEE,17/32"-24 x 1/8" NPT Br

- compression, 3/8 tube OD X 1/8 inch PT, Includes: Ref. 42 and 43

1шт.

42

222-2611

SLEEVE

- flanged, 3/8 inch OD tube

2шт.

43

222-2601

NUT

NUT - hex, 3/8 tube OD x 17/21-24 inch

2шт.

24

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

Выбрано товаров: 36
