Запчасти Case IH 2394 (8-108) - HITCH SYSTEM, HITCH CONTROLS (08) - HYDRAULICS

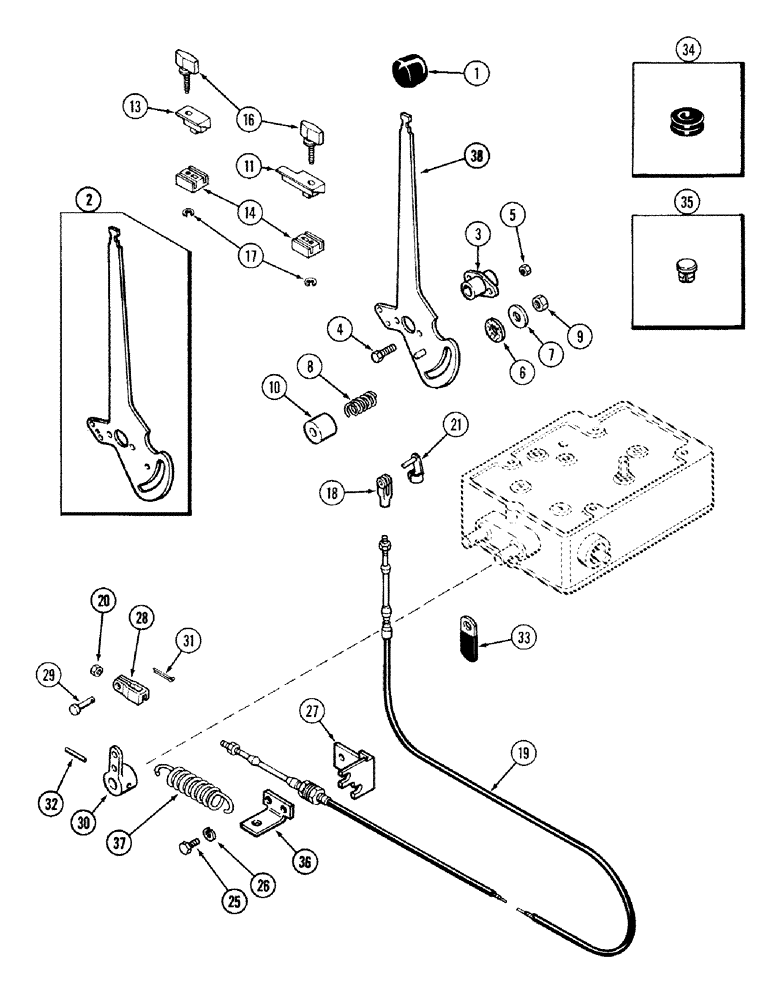

Схема запчастей Case IH 2394 - (8-108) - HITCH SYSTEM, HITCH CONTROLS (08) - HYDRAULICS
3
31
37
25
10
16
5
1
18
11
29
7
19
2
34
27
33
26
36
35
6
20
13
30
38
4
21
28
17
9
8
14
32

Артикул

Название

Примечание

Количество

1

A177438

KNOB

- hand lever (Black)

1шт.

2

A180498

LEVER

- hitch

1шт.

3

A162299

BEARING,15.95mm ID

- lever

1шт.

4

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

2шт.

5

230-4214

LOCK NUT,1/4"-20, GA

NUT - hex, self-locking, 1/4 inch NC

2шт.

6

A61069

DISC

- friction

1шт.

7

495-81149

WASHER,7/16" x 1 1/4" x .083"

- flat, 7/16 x 1-1/4 x 3/32 inch

1шт.

8

A65583

SPRING

- friction disc

1шт.

9

131-1306

JAM NUT,Jam, 3/8"-16

NUT - hex, jam, self-locking, 3/8 inch NC

1шт.

10

A160622

BUSHING

SPACER - lever

1шт.

11

A162862

STOP

- hitch, top front

1шт.

13

A163829

STOP

- hitch, top rear

1шт.

14

A162863

LOCK

- hitch stop, bottom

2шт.

16

A162958

BUTTON

KNOB - lever stop

2шт.

17

49485

SNAP RING,#X18, .122" Dia, E-Type

Ring, Retaining, #X18, .122" Dia, E-Type

2шт.

18

213-113

ADJUSTABLE CLEVIS,#10-32

CLEVIS - adjustable, No. 10

1шт.

19

A167658

CABLE

- hitch control

1шт.

20

193-1000

NUT,Keps, w/LW,#10-32

- hex, with external tooth lock washer, No. 10 NF

1шт.

21

A149683

PIN

- clevis, spring, 3/16 inch

1шт.

25

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

26

92-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

27

A160811

BRACKET

- control cable

1шт.

28

A65265

YOKE

CLEVIS - cable to lower lever

1шт.

29

427-3058

CLEVIS PIN,3/16" x .580"

PIN, CLEVIS, , Hardened 3/16" x .580"

1шт.

30

A156185

LEVER

- hitch control

1шт.

31

432-412

COTTER PIN,1/16" x 3/4"

PIN, SPLIT (COTTER), 1/16" x 3/4"

1шт.

32

138-99

LOCK PIN,3/16" x 1 3/8", Slotted

PIN, 3/16" x 1 3/8", Slotted

1шт.

33

A37179

CLIP

- cable

1шт.

34

A145925

GROMMET

- cable

1шт.

35

A162961

PLUG

- 3/4 inch diameter head

1шт.

36

A169807

BRACKET

- hitch spring assist

1шт.

37

A169810

SPRING

- hitch lever

1шт.

38

A181782

LEVER

- hitch

1шт.

Выбрано товаров: 33
