Запчасти Case IH 2394 (8-106) - REMOTE HYDRAULIC CYLINDER, 4 INCH BORE X 8 INCH STROKE (08) - HYDRAULICS

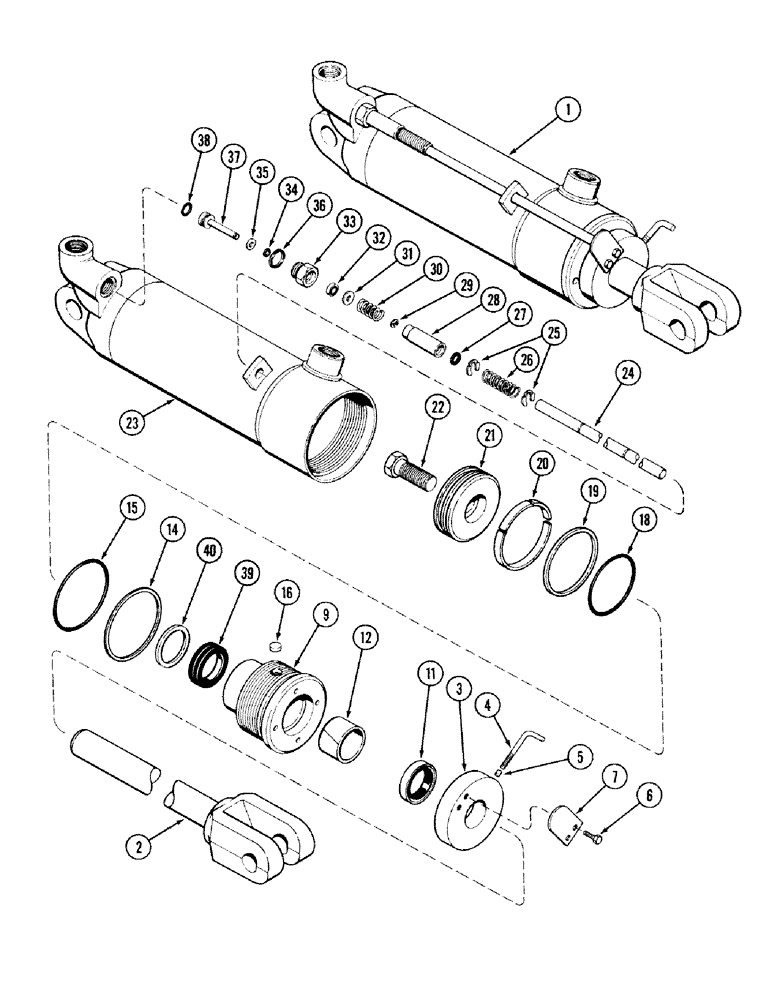

Схема запчастей Case IH 2394 - (8-106) - REMOTE HYDRAULIC CYLINDER, 4 INCH BORE X 8 INCH STROKE (08) - HYDRAULICS
39
36
30
16
27
19
18
33
24
20
4
6
14
34
38
26
3
29
22
21
31
37
32
5
35
40
1
11
7
15
25
9
2
12
28
23

Артикул

Название

Примечание

Количество

1

G33769

CYLINDER

ASSEMBLY - hydraulic, Includes: Ref. 2 - 40

1шт.

2

G33772

ROD

- piston

1шт.

3

G34980

COLLAR

- stop

1шт.

4

G34977

BOLT

- hook

1шт.

5

G34979

PLUG

- locking

1шт.

6

276-20712

SELF-TAP SCREW,Hex Hd, 1/4" x 3/4"

SCREW - self-tapping, hex head, 1/4 NC x 3/4 inch

2шт.

7

G32075

PLATE

- stop

1шт.

9

1543160C1

GLAND

- cylinder

1шт.

11

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod

1шт.

Part of Hydraulic Cylinder Service Kit, P/N 1543315C1

1шт.

12

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

BEARING - Center

1шт.

Part of Hydraulic Cylinder Service Kit, P/N 1543315C1

1шт.

14

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

1шт.

Part of Hydraulic Cylinder Service Kit, P/N 1543315C1

1шт.

15

238-5242

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

1шт.

Part of Hydraulic Cylinder Service Kit, P/N 1543315C1

1шт.

16

G102569

PLUG

- nylon, locking, gland

1шт.

18

238-5238

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

1шт.

Part of Hydraulic Cylinder Service Kit, P/N 1543315C1

1шт.

19

G31928

RING

- sealing, piston

1шт.

Part of Hydraulic Cylinder Service Kit, P/N 1543315C1

1шт.

20

G100448

RING,101.6mm OD, Ext

- wear

1шт.

Part of Hydraulic Cylinder Service Kit, P/N 1543315C1

1шт.

21

G33774

PISTON

- cylinder (Order G104114)

1шт.

22

28-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

1шт.

23

G31942

HYD TUBE,15.15" L

TUBE - cylinder

1шт.

24

G32428

ROD

- push

1шт.

25

G32429

RING

- retaining

2шт.

26

G31934

SPRING

- return, rod

1шт.

27

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

-013, 70 Duro, .426" ID x .070" Thk

1шт.

Part of Hydraulic Cylinder Service Kit, P/N 1543315C1

1шт.

28

G32427

SLEEVE

- protector

1шт.

29

49485

SNAP RING,#X18, .122" Dia, E-Type

Ring, Retaining, #X18, .122" Dia, E-Type

1шт.

30

G31980

SPRING

- return, plunger

1шт.

31

G31929

WASHER

- backing, spring

1шт.

32

G31932

WIPER SEAL

SEAL - wiper

1шт.

Part of Hydraulic Cylinder Service Kit, P/N 1543315C1

1шт.

33

G31933

GLAND

ASSEMBLY - valve, Includes: Ref. 34

1шт.

34

238-5106

O-RING,0.103" Thk x 0.174" ID, -106, Cl 5, 75 Duro

- 3/16 ID x 3/32 inch, wide

1шт.

Part of Hydraulic Cylinder Service Kit, P/N 1543315C1

1шт.

35

G31948

WASHER

- plunger

1шт.

36

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

37

G31943

PLUNGER

- valve

1шт.

38

238-6111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 6, 90 Duro

Plunger -111, 90 Duro, .424" ID x .103" Thk

1шт.

Part of Hydraulic Cylinder Service Kit, P/N 1543315C1

1шт.

1542874C1

SEAL KIT,38.1mm Rod

KIT, SEALS, Rod and Buffer (Order 1543315C1)

1шт.

Part of Hydraulic Cylinder Service Kit, P/N 1543315C1

1шт.

39

G107921

SEAL,38.07mm ID x 50.93mm OD x 10.69mm Thk

- piston rod, Includes: Ref. 40

1шт.

Part of Hydraulic Cylinder Service Kit, P/N 1543315C1

1шт.

40

G109093

SEAL,37.72mm ID x 50.98mm OD x 3.05mm Thk

- gland

1шт.

Part of Hydraulic Cylinder Service Kit, P/N 1543315C1

1шт.

1543315C1

SEAL KIT

KIT - service, hydraulic cylinder, Includes: Ref. 11, 12, 14, 15, 18, 19, 20, 27, 32, 34, 38, 39, 40

1шт.

Выбрано товаров: 52
