Запчасти Case IH 2394 (8-104) - REMOTE HYDRAULIC HOSE COUPLINGS (08) - HYDRAULICS

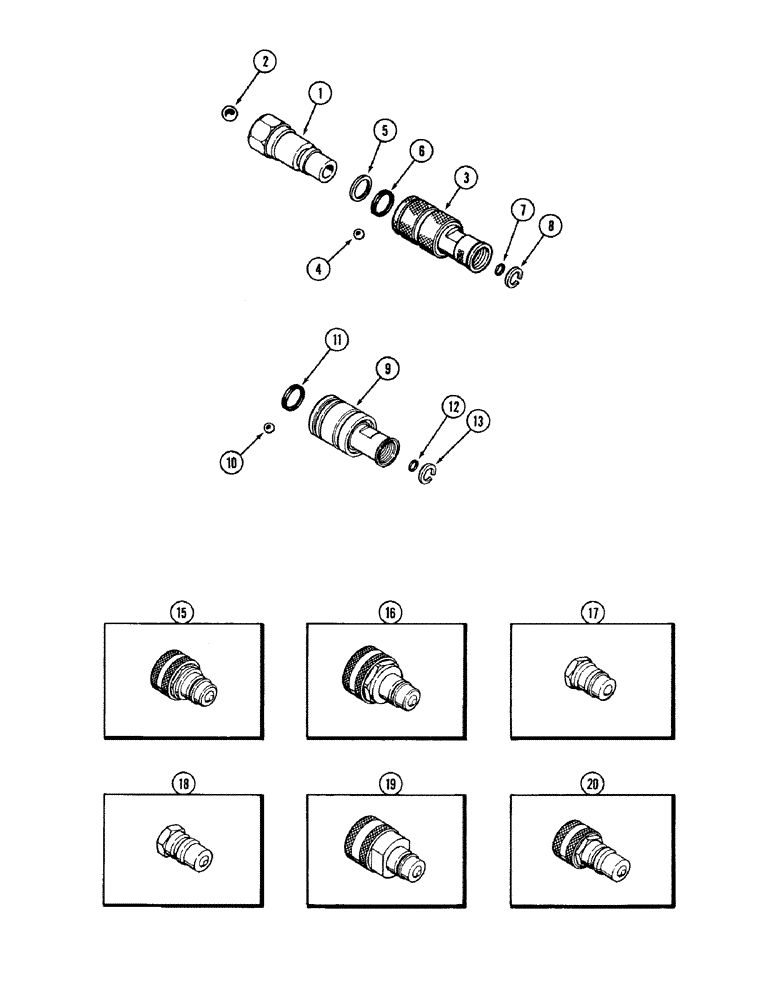

Схема запчастей Case IH 2394 - (8-104) - REMOTE HYDRAULIC HOSE COUPLINGS (08) - HYDRAULICS
7
6
4
16
15
8
11
1
18
17
10
2
9
13
20
19
5
12
3

Артикул

Название

Примечание

Количество

1

A147889

COUPLING, BREAK AWAY

COUPLING - hydraulic, male breakaway (Order 1272399C2), Includes: Ref. 2

1шт.

2

211-215

BALL,17/32" Dia

- 17/32 inch, grade 100, carbon steel

1шт.

3

A147888

BREAKER POINTS

COUPLING - hydraulic, female breakaway (Order A177478), Includes: Ref. 3 - 8

1шт.

4

211-204

BALL

- 3/16 inch, grade 200, carbon steel

10шт.

5

A44890

RING

- back up

1шт.

A47220

GASKET KIT

KIT - service, quick disconnect couplings (Order 123739A1), Includes: Ref. 6 - 8

1шт.

6

A47221

SEALING RING,20.22mm ID x 27.28mm OD x 3.53mm Thk

- coupling body

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - valve coupling

1шт.

8

NSS

NOT SOLD SEPARAT

RING - lock

1шт.

9

A177478

COUPLING, QUICK, FEM

COUPLING - hydraulic, female breakaway, Includes: Ref. 10 - 13

1шт.

10

211-204

BALL

- 3/16 inch, grade 200, carbon steel

10шт.

A47220

GASKET KIT

KIT - service, quick disconnect couplings (Order 123739A1), Includes: Ref. 11 - 13

1шт.

11

A47221

SEALING RING,20.22mm ID x 27.28mm OD x 3.53mm Thk

- coupling body

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL - valve coupling

1шт.

13

NSS

NOT SOLD SEPARAT

RING - lock

1шт.

15

A160879

COUPLING, BREAK AWAY

ADAPTER ASSEMBLY - male half (John Deere male half to J I Case A147888 female half), hydraulic coupling

1шт.

16

A160880

COUPLING, BREAK AWAY

ADAPTER ASSEMBLY - male half (International Harvester male half to J I Case A147888 female half), hydraulic coupling

1шт.

17

1272770C2

COUPLING, BREAK AWAY

COUPLING ASSEMBLY - male half (Same as A147889 except with 1/2 inch-14 internal thread, hydraulic adapters

1шт.

18

A160884

COUPLING, BREAK AWAY

COUPLING ASSEMBLY - male half, 1/2 inch-14 thread (Order A27744 and A28541), hydraulic adapters

1шт.

19

A160885

QUICK MALE COUPLING

ADAPTER ASSEMBLY - male half (J I Case A28541 and A160884 to J I Case A147888), hydraulic coupling

1шт.

20

A160888

COUPLING

ADAPTER ASSEMBLY - male half (J I Case A147889 to J I Case A28542), hydraulic coupling

1шт.

Выбрано товаров: 21
