Запчасти Case IH 2394 (8-090) - REMOTE VALVE BODY ASSEMBLY, WITH LOAD CHECK - A169456 (CONTINUED) (08) - HYDRAULICS

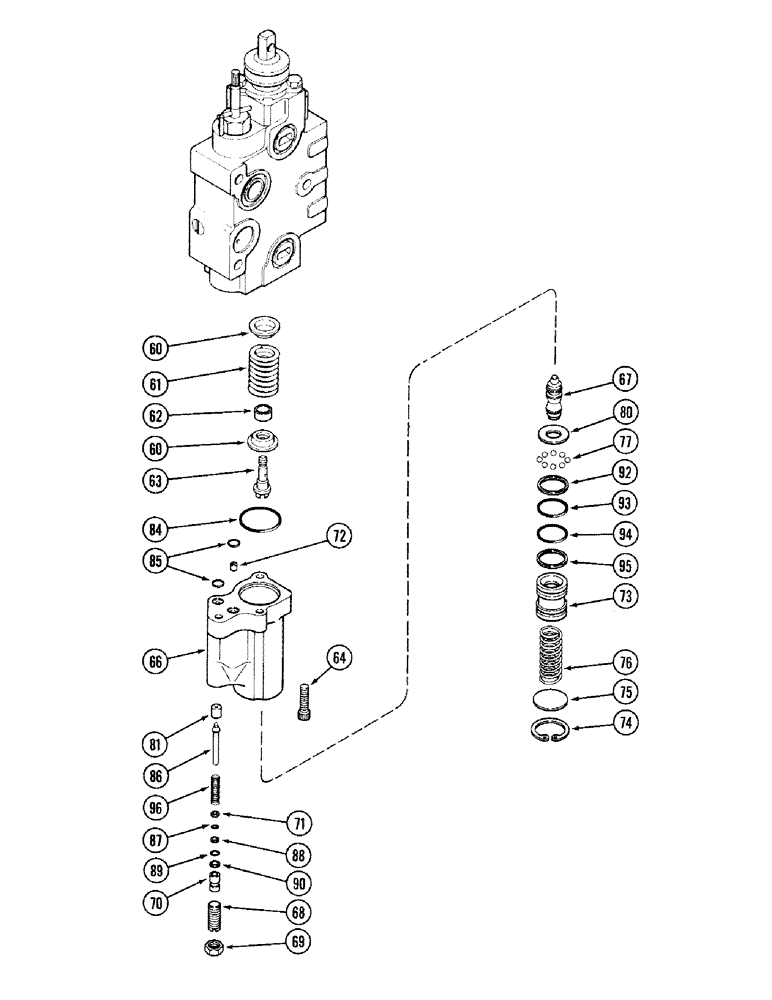

Схема запчастей Case IH 2394 - (8-090) - REMOTE VALVE BODY ASSEMBLY, WITH LOAD CHECK - A169456 (CONTINUED) (08) - HYDRAULICS
90
70
68
67
75
84
96
80
77
92
87
60
72
76
95
86
88
71
61
60
73
96
89
62
69
93
85
64
74
63
81
66

Артикул

Название

Примечание

Количество

A169456

VALVE

ASSEMBLY - remote hydraulic control (Replaces A162851)(Order components), Includes: Ref. 60 - 96, 2 - 20 on Figure 8-086, and 21 - 57 on Figure 8-088

1шт.

A48945

HOUSING

BODY ASSEMBLY - remote hydraulic control valve, Includes: Ref. 60 - 96 and 22 - 57 on Figure 8-88

1шт.

60

A47197

RETAINER

- spring

2шт.

61

A47177

SPRING

- centering

1шт.

62

A48930

SPACER

- detent

1шт.

63

A46923

COUPLING, BREAK AWAY

COUPLER - detent

1шт.

64

61-32516

HEX SOC SCREW,1/4"-20 x 1"

SCREW - socket head cap, 1/4 NC x 1 inch

3шт.

A48940

KIT

HOUSING KIT - detent, Includes: Ref. 66 - 77

1шт.

66

NSS

NOT SOLD SEPARAT

HOUSING - detent

1шт.

67

A52409

SHAFT

- detent

1шт.

68

A47173

SCREW,3/8" - 24 x 0.96"

- adjusting

1шт.

69

425-156

JAM NUT,Jam, 3/8"-24, G5

- hex jam, 3/8 inch NF

1шт.

70

A48936

GOVERNOR

PISTON - regulator

1шт.

71

A48935

WASHER

- valve

1шт.

72

A47658

PLUG

- orifice

1шт.

73

A48932

PISTON

- kickout

1шт.

74

A30975

SNAP RING,1.188", Int, #118

1шт.

75

A48933

RING

RETAINER - piston

1шт.

76

A48934

SPRING

- detent

1шт.

77

211-205

BALL

- 7/32 inch, grade 200, chrome alloy steel

8шт.

80

A48931

WASHER

- guide

1шт.

81

A47201

SEAT

- pilot

1шт.

A48942

KIT

- service, detent seals, Includes: Ref. 84 - 96

1шт.

84

238-5026

O-RING,0.07" Thk x 1.239" ID, -26, Cl 5, 75 Duro

-026, 70 Duro, 1.239" ID x .070" Thk

1шт.

85

238-6010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

2шт.

86

NSS

NOT SOLD SEPARAT

POPPET - detent

1шт.

87

238-5006

O-RING,0.07" Thk x 0.114" ID, -6, Cl 5, 75 Duro

-006, 70 Duro, .114" ID x .070" Thk

1шт.

88

A52378

RING,Split, 3.56mm ID x 6.3mm OD x 1.32mm Thk

- backup

1шт.

89

238-5008

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

-008, 70 Duro, .176" ID x .070" Thk

1шт.

90

D71056

RING,Split, 4.47mm ID x 7.21mm OD x 1.32mm Thk

- backup

1шт.

92

L35295

SEALING RING,Split, 24.38mm ID x 27.13mm OD x 1.32mm Thk

RING - backup

1шт.

93

238-5021

O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro

-021, 70 Duro, .926" ID x .070" Thk

1шт.

94

238-5022

O-RING,0.07" Thk x 0.99" ID, -22, Cl 5, 75 Duro

-022, 70 Duro, .989" ID x .070" Thk

1шт.

95

A52208

SEAL,25.98mm ID x 28.73mm OD x 1.32mm Thk

RING - backup

1шт.

96

NSS

NOT SOLD SEPARAT

SPRING - relief

1шт.

Выбрано товаров: 35
