(8-082) - REMOTE VALVE BODY ASSEMBLY, WITH LOAD CHECK - A162851 (CONTINUED)

Запчасти Case IH 2394 (8-082) - REMOTE VALVE BODY ASSEMBLY, WITH LOAD CHECK - A162851 (CONTINUED) (08) - HYDRAULICS

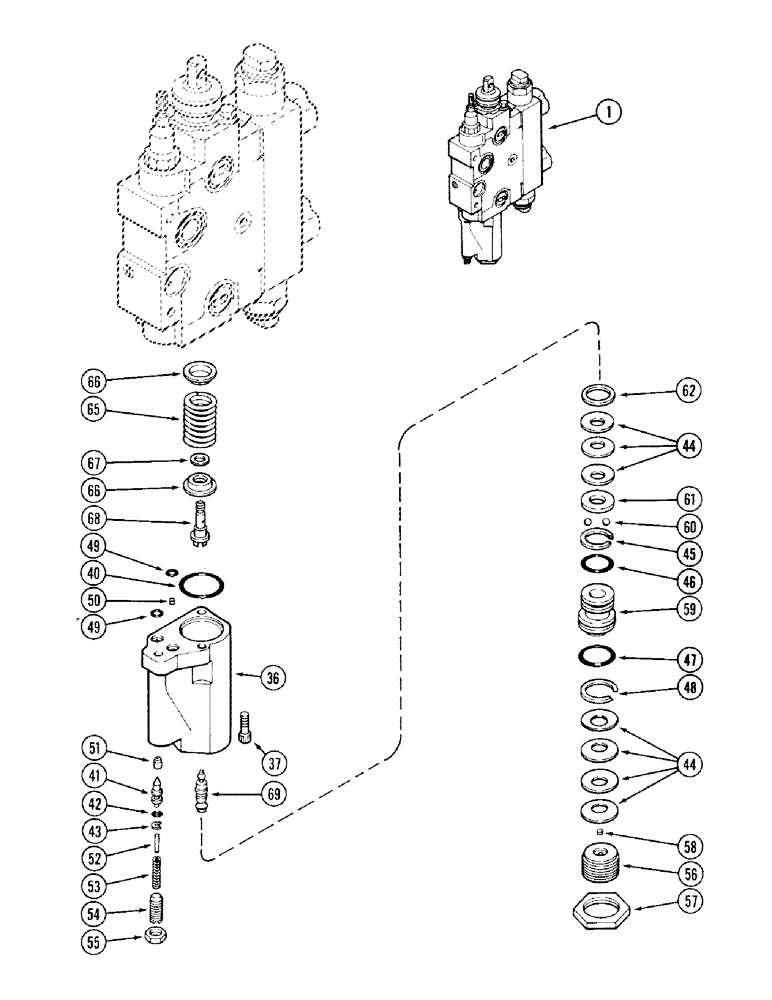

Схема запчастей Case IH 2394 - (8-082) - REMOTE VALVE BODY ASSEMBLY, WITH LOAD CHECK - A162851 (CONTINUED) (08) - HYDRAULICS
46
49
69
41
49
57
51
47
48
59
44
43
53
45
61
36
65
44
42
52
50
67
55
1
54
56
68
66
37
40
60
62
58
66
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A162851

LOCK VALVE

VALVE ASSEMBLY - remote hydraulic control (Order A169456)(See Figure 8-086), Includes: Ref. 36 - 69, 2 - 37 on Figure 8-080, and 75 - 91 on FIgure 8-084

1шт.

A46913

BODY

ASSEMBLY - remote hydraulic control valve, Includes: Ref. 36 - 69 and 2 - 37 on Figure 8-080

1шт.

36

A46922

HOUSING

ASSEMBLY - detent

1шт.

37

61-32516

HEX SOC SCREW,1/4"-20 x 1"

SCREW - socket head cap, 1/4 NC x 1 inch

3шт.

A47572

KIT

SEAL KIT - detent housing, Includes: Ref. 40 - 49

1шт.

40

238-5026

O-RING,0.07" Thk x 1.239" ID, -26, Cl 5, 75 Duro

-026, 70 Duro, 1.239" ID x .070" Thk

1шт.

41

A47192

SPOOL

POPPET - pilot

1шт.

42

238-5007

O-RING,0.07" Thk x 0.145" ID, -7, Cl 5, 75 Duro

-007, 70 Duro, .145" ID x .070" Thk

1шт.

43

D54860

RING

- backup

1шт.

44

D78437

WASHER

SPRING - Belleville, detent

7шт.

45

A47100

RING

- backup

1шт.

46

238-5020

O-RING,0.07" Thk x 0.864" ID, -20, Cl 5, 75 Duro

-020, 70 Duro, .864" ID x .070" Thk

1шт.

47

238-5022

O-RING,0.07" Thk x 0.99" ID, -22, Cl 5, 75 Duro

-022, 70 Duro, .989" ID x .070" Thk

1шт.

48

A52208

SEAL,25.98mm ID x 28.73mm OD x 1.32mm Thk

RING - backup

1шт.

49

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

50

A47658

PLUG

- orifice

1шт.

51

A47201

SEAT

- pilot float assembly

1шт.

52

A47104

PIN

- spring guide

1шт.

53

D78468

SPRING

- pilot

1шт.

54

A47173

SCREW,3/8" - 24 x 0.96"

- adjusting

1шт.

55

129-528

NUT

- hex, 3/8 inch NF

1шт.

56

A47211

PLUG

- detent adjusting

1шт.

57

A47175

LOCK NUT

NUT - lock

1шт.

58

A47206

FILTER

- float

1шт.

59

A47207

PISTON

- float

1шт.

60

211-256

BALL

- 7/32 inch, grade 50, chrome alloy steel

7шт.

61

A47198

RETAINER

- ball

1шт.

62

D78438

WASHER

- special

1шт.

65

A47177

SPRING

- centering

1шт.

66

A47197

RETAINER

- spring

2шт.

67

A47199

BUSHING

SPACER - detent

1шт.

68

A46923

COUPLING, BREAK AWAY

COUPLER - detent

1шт.

69

A47190

SHAFT

- pivot, detent

1шт.
