Запчасти Case IH 2394 (8-072) - REMOTE VALVE BODY ASSEMBLY, WITHOUT LOAD CHECK - A162213 (08) - HYDRAULICS

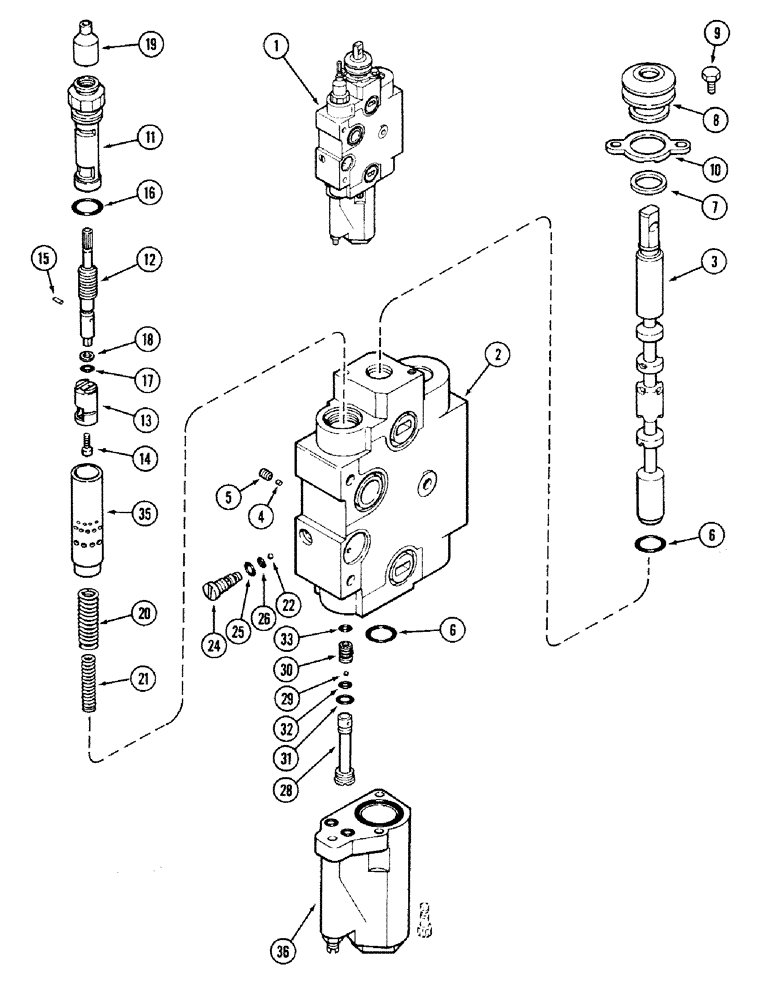

Схема запчастей Case IH 2394 - (8-072) - REMOTE VALVE BODY ASSEMBLY, WITHOUT LOAD CHECK - A162213 (08) - HYDRAULICS
11
13
9
32
12
17
6
6
15
8
33
7
22
21
29
14
30
31
3
28
24
4
25
1
26
18
35
20
19
10
2
16
5
36

Артикул

Название

Примечание

Количество

1

A162213

HOUSING

BODY ASSEMBLY - remote hydraulic control valve (Order A169029)(See Figure 8-076), Includes: Ref. 2 - 36 ad 36 - 69 on Figure 8-074

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - control valve (Order A169029)

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - control valve (Order A169029)

1шт.

4

A47105

PLUG

- expansion

1шт.

5

A47213

PLUG

- orifice

1шт.

A47570

KIT

SEAL KIT - valve spool (Order components), Includes: Ref. 6 - 9

1шт.

6

238-5116

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

2шт.

7

A47205

SEAL,22.61mm ID x 32.13mm OD x 2.67mm Thk

FILTER - spool

1шт.

8

A47188

COVER

BOOT - dust

1шт.

9

86019274

SCREW,Hex, 1/4"-20 x 1/2", G5

- hex, 1/4 NC x 1/2 inch

2шт.

10

A47196

RETAINER

- dust guard

1шт.

A47754

LOCK VALVE

HOUSING ASSEMBLY - flow control (Order components), Includes: Ref. 11 - 14

1шт.

11

A47194

HOUSING

- flow control

1шт.

12

A47191

SHAFT

- adjusting

1шт.

13

A47755

TUBE

- flow control

1шт.

14

61-46

HEX SOC SCREW,1/4"-20 x 3/8"

SCREW - socket head, 1/4 NC x 3/8 inch

1шт.

A47571

KIT

REPAIR KIT - flow control (Order components), Includes: Ref. 15 - 21

1шт.

15

138-2

LOCK PIN,1/16" x 1/4", Slotted

Pin, 1/16" x 1/4", Slotted

1шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

17

238-5010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

-010, 70 Duro, .239" ID x .070" Thk

1шт.

18

L35305

RING

- backup

1шт.

19

A47189

COVER

- dust

1шт.

20

A47184

SPRING

- outer

1шт.

21

A47186

SPRING

- inner

1шт.

22

211-204

BALL

- 3/16 inch, grade 50, chrome alloy steel

1шт.

A47210

PLUG

ASSEMBLY - shuttle seat (Order components), Includes: Ref. 24 - 26

1шт.

24

A47204

PLUG

- shuttle

1шт.

A47575

KIT

- seal (Order components), Includes: Ref. 25 and 26

1шт.

25

237-6003

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk

1шт.

26

238-6008

O-RING,0.07" Thk x 0.176" ID, -8, Cl 6, 90 Duro

1шт.

A47209

SPOOL

HOUSING ASSEMBLY - primary, Includes: Ref. 28 - 33

1шт.

28

NSS

NOT SOLD SEPARAT

BODY - housing

1шт.

29

NSS

NOT SOLD SEPARAT

BALL - steel, 5/32 inch

1шт.

30

NSS

NOT SOLD SEPARAT

SEAT - primary

1шт.

A47574

KIT

SEAL KIT - primary housing (Order components), Includes: Ref. 31 - 33

1шт.

31

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

32

238-6010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

1шт.

33

238-6009

O-RING,0.07" Thk x 0.208" ID, -9, Cl 6, 90 Duro

1шт.

35

A47187

SPOOL

- flow control

1шт.

36

REF

INSTRUCTION

HOUSING ASSEMBLY - detent (See Page 8-074)

1шт.
