Запчасти Case IH 2394 (8-058) - REMOTE HYDRAULIC VALVE, TWO SECTION W/O LOAD CHECK - A162211, PRIOR TO TRANSMISSION S/N 16283224 (08) - HYDRAULICS

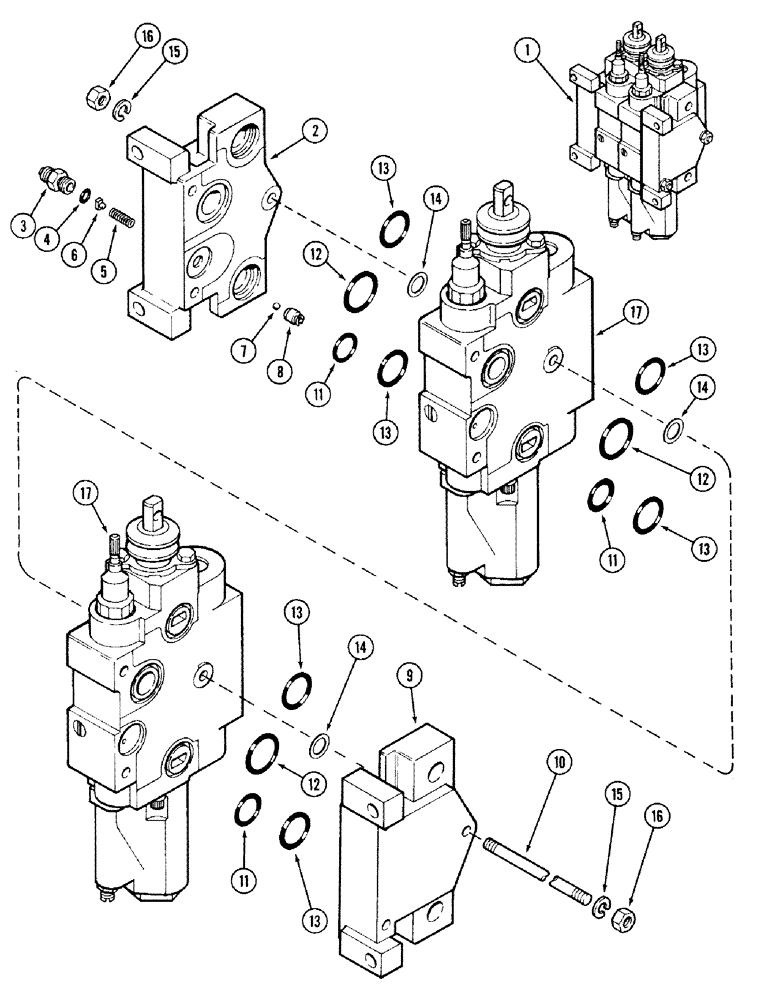

Схема запчастей Case IH 2394 - (8-058) - REMOTE HYDRAULIC VALVE, TWO SECTION W/O LOAD CHECK - A162211, PRIOR TO TRANSMISSION S/N 16283224 (08) - HYDRAULICS
15
16
7
14
13
5
9
1
13
15
12
16
13
13
6
14
8
2
11
10
12
13
11
11
13
17
12
3
4
17
14

Артикул

Название

Примечание

Количество

1

A162211

VALVE

ASSEMBLY - remote hydraulic (Order A167473) (See Figure 8-060), Includes: Ref. 2 - 17

1шт.

2

A47169

COVER

ASSEMBLY - inlet, Includes: Ref. 3 - 8

1шт.

3

A47185

FITTING

- inlet

1шт.

5

A47176

SPRING

- valve

1шт.

6

A47214

RETAINER

- spring

1шт.

7

211-206

BALL,1/4" Dia

- 1/4 inch, grade 50, chrome alloy steel

1шт.

8

A47202

SEAT

- valve

1шт.

9

A47113

COVER

- without inlet

1шт.

10

A147506

STUD

- 3/8 NC x 8 inch

3шт.

A47576

KIT

- seals and shims (Order components), Includes: Ref. 11 - 14

1шт.

11

238-6210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 6, 90 Duro

- 3/4 ID x 1/8 inch wide

1шт.

12

238-6214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

1шт.

13

238-5119

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

2шт.

14

D77566

SHIM,.0030" Thk

Control valve sections .0030" Thk

3шт.

15

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

16

425-106

NUT,3/8"-16, Cl 5

6шт.

17

REF

INSTRUCTION

BODY ASSEMBLY - valve (See Figure 8-072 or 8-076)

2шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
