Запчасти Case IH 2394 (8-056) - REMOTE HYDRAULIC FLOW CONTROLS (08) - HYDRAULICS

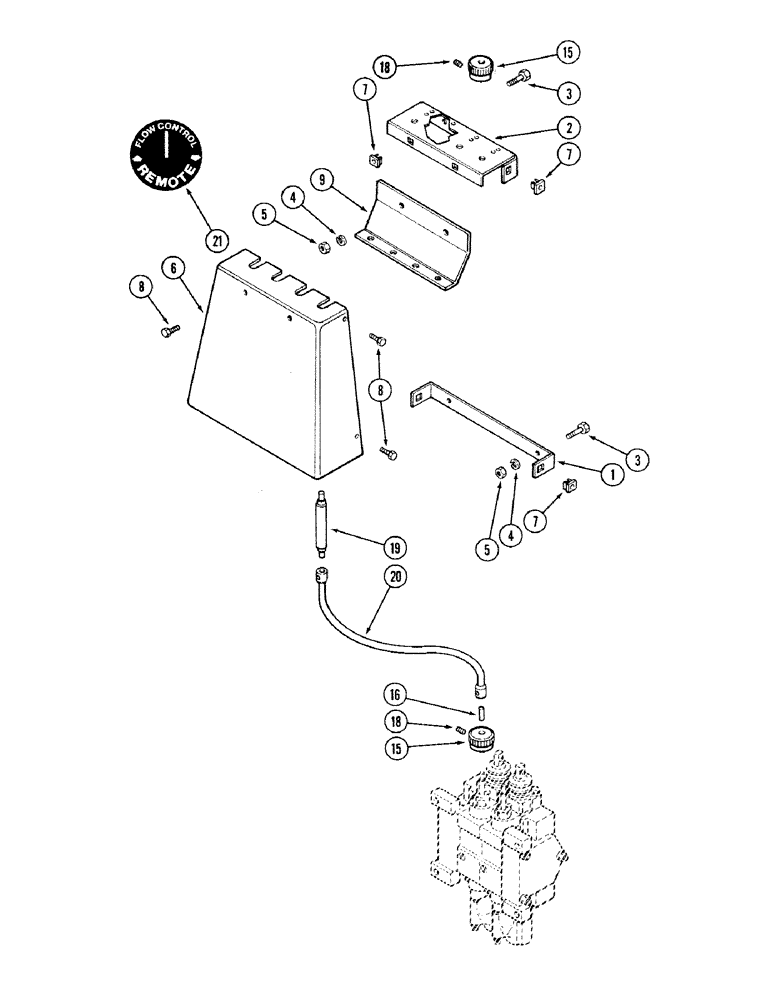

Схема запчастей Case IH 2394 - (8-056) - REMOTE HYDRAULIC FLOW CONTROLS (08) - HYDRAULICS
4
7
4
21
8
8
7
18
5
19
7
18
15
5
20
2
3
1
6
15
16
9
3

Артикул

Название

Примечание

Количество

A67475

KIT

- console, remote flow control (Order components), Includes: Ref. 1 - 9

1шт.

1

A160314

KNOB

BRACKET - flow control

1шт.

2

A160256

SUPPORT

- shroud, flow control

1шт.

4

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

5

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

4шт.

6

A160259

PANEL

SHROUD - flow control

1шт.

7

A67319

NUT

- shroud

6шт.

8

281-16712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

SCREW - self-tapping, hex washer head, 1/4 NC x 3/4 inch

6шт.

9

A160257

BRACKET

- flow control

1шт.

A67476

KIT

- remote flow control (Order components), Includes: Ref. 15 - 21

1шт.

15

A160814

KNOB

- flow control

2шт.

16

A160815

PIN

- flexible shaft

2шт.

18

84-21010

SET SCREW,Hex Soc, #10-32 x 5/8"

SCREW - set, hex socket, No. 10 NF x 5/8 inch

3шт.

19

A147636

SHAFT

- rigid, flow control

1шт.

20

A149146

SHAFT

- flexible, flow control

1шт.

21

321-4129

DECAL

- flow control

1шт.

3

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

4шт.

Выбрано товаров: 17
